128-Position Ultra-High Density Crimp Inserts
  • name
  • name
  • name

128-Position Ultra-High Density Crimp Inserts

MOQ: 5pcs/30pcs/50pcs
Price: 9.6/9/8.4
Delivery Period: 5~7 work days
Payment Method: T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
ZJHK
Certification
UL,COC,CE,UKCA,SGS,EAC,RoHS
Model Number
HD-064-MC/FC
Document
HD-064-FC.pdf
Voltage:
250V
Connector Type:
Ultra- High Density Connector
Material:
PC
Housing:
H48B Series
Rated Current:
10A
OEM:
Provided
Wire Connection:
Crimp
Durability:
500Times Life Cycle
Package:
Indivisual Packing In Box
Highlight:

128-position crimp inserts

,

ultra-high density connector

,

heavy duty multi pin crimp

Product Description

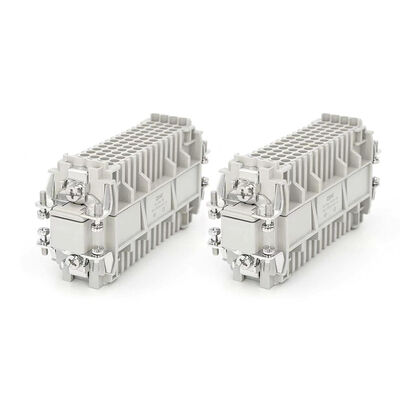

128-Position Ultra-High Density Crimp Inserts
HD-128-MC/FC 128-position ultra-high density crimp insert

HD-128-MC/FC are 128-position ultra-high-density crimp inserts designed for industrial applications with complex wiring requirements. With 128 contacts integrated into a compact connection system, they help accommodate more circuits while keeping equipment wiring organized and space-efficient.

The inserts use crimp termination and are available in male and female versions, making them suitable for high-density power, control and signal connections. The HD-128-MC/FC is designed for use with 48B hoods and housings.

Technical Specifications
Product Type Ultra-High Density Crimp Insert
Model HD-128-MC / HD-128-FC
Number of Contacts 64*2
Rated Current 10A
Rated Voltage 250V
Termination Crimp
Gender Male / Female
Matching Housing 48B
Insulation Material Polycarbonate
Contact Material Copper Alloy
Contact Plating Silver / Gold
Wire Gauge 0.14-2.5 mm²
Operating Temperature -40°C to +125°C
Flammability UL94 V-0
Mechanical Life ≥500 mating cycles
Product Drawings
HD-128-MC
HD-128-MC technical drawing
HD-128-FC
HD-128-FC technical drawing
Core Strength
Core strength features illustration
  • High contact density allows a large number of circuits to be connected through one connector system
  • Suitable for industrial control, signal and low-power electrical connection applications
  • Crimp connection provides a practical wiring method without soldering and makes assembly and maintenance more convenient
  • Designed to work with 48B hoods and housings, providing a complete heavy-duty connector solution
Crimping Termination
Crimping termination process illustration

The HD-128-MC/FC uses a crimp connection method, allowing individual wires to be securely terminated to the contacts without soldering. Crimp contacts can also be replaced when necessary, making the system easier to assemble, maintain and service.

For the 10A contact system, compatible wire sizes range from 0.14 to 2.5 mm², according to published technical data.

Matching Crimping Contacts
Copper alloy male contact with silver plating
Copper alloy with silver plated
Rated Current: 10A
0.14-2.5mm²
Gender: Male
Copper alloy female contact with silver plating
Copper alloy with silver plated
Rated Current: 10A
0.14-2.5mm²
Gender: Female
Copper alloy male contact with gold plating
Copper alloy with gold plated
Rated Current: 10A
0.14-2.5mm²
Gender: Male
Copper alloy female contact with silver plating
Copper alloy with silver plated
Rated Current: 10A
0.14-2.5mm²
Gender: Female
Delivery And Packaging
Product packaging and delivery illustration

We offer flexible delivery options to meet different customer requirements, including international express, air freight and sea freight. Standard orders are normally ready for shipment within 10 days after order confirmation, with delivery arrangements made according to the order quantity and shipping method.

Before shipment, every order is carefully checked and packed in individual protective packaging and export cartons. This helps protect the connectors from scratches and damage during transportation while keeping the products securely arranged for easier handling and storage.

Do you need a stable connection solution?

Tell us your required contact number, current rating, housing size and application. Our technical team can help you select the right insert and connector combination.
