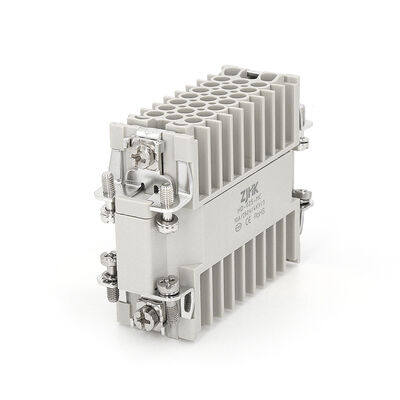

25pos Crimping 10A Ultra-high Density Inserts
  • name
  • name
  • name
  • name

25pos Crimping 10A Ultra-high Density Inserts

MOQ: 5pcs/30pcs/50pcs
Price: $2.67/$2.5/$2.33
Delivery Period: 5~7 work days
Payment Method: T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
ZJHK
Certification
UL,COC,CE,UKCA,SGS,EAC,RoHS
Model Number
HD-025-MC/HD-025-FC
Document
HD-025-MC.pdf
Order Number:
09210253001& 09210253101
Degree Of Protection:
IP65
Operating Temperature:
-45~125℃
Numbers Of Contacts:
25
Housing:
H16A Series
Housings:
Metal
Voltage Rating:
250V
Mating Cycles:
≥ 500
Highlight:

25pos crimping high density inserts

,

10A heavy duty multi pin connector

,

ultra-high density crimping inserts

Product Description
25-Position Crimping 10A Ultra-High Density Inserts
HD-025-MC/FC are 25-contact high-density crimp inserts designed for industrial applications where multiple circuits need to be connected in a compact space. Rated at 10A and 250V, they use PC insulation and copper-alloy contacts with silver or gold plating options.
25-Position Ultra-High Density Crimp Insert
Product Specifications
Category Inserts
Series Ultra-High Density
Termination Method Crimping Terminal
Gender Male/Female
Size 16A
Contacts 25+PE
Rated Voltage 250V
Rated Current 10A
Protection Degree IP65
Material PC
Contact Material
The contacts are made of copper alloy, which offers an optimal balance of electrical conductivity, mechanical strength, and contact stability. Copper alloy is specifically chosen for industrial connector contacts because it efficiently carries current while maintaining the mechanical properties required for repeated mating and crimping operations.
Product Drawings
HD-025-MC
HD-025-MC Technical Drawing
HD-025-FC
HD-025-FC Technical Drawing
Matching Contacts
Matching Contact CDSM Matching Contact CDSF Matching Contact CDGM Matching Contact CDGF
CDSM
Copper alloy with silver plated
Rated Current: 10A
Wire Gauge: 0.14~2.5mm²
Gender: Male
CDSF
Copper alloy with silver plated
Rated Current: 10A
Wire Gauge: 0.14~2.5mm²
Gender: Female
CDGM
Copper alloy with gold plated
Rated Current: 10A
Wire Gauge: 0.14~2.5mm²
Gender: Male
CDGF
Copper alloy with gold plated
Rated Current: 10A
Wire Gauge: 0.14~2.5mm²
Gender: Female
Testing Equipment
Skyray Instrument
Skyray Instrument
EDXRF Spectrometer
EDXRF Spectrometer
Temperature Testing Bed
Temperature Testing Bed
Company Profile
Zhejiang Haoke Electric Company Facility
Zhejiang Haoke Electric Co. Ltd is a professional manufacturer of heavy-duty industrial connectors. We offer reliable and cost-effective solutions for industrial automation, machinery, control cabinets, and other applications. With stable quality, flexible product options, and competitive pricing, our products are widely used in European and international markets.
