64Pins Crimping Terminal 10A Connectors
  • name
  • name
  • name
  • name

64Pins Crimping Terminal 10A Connectors

MOQ: 5pcs/30pcs/50pcs
Price: $4.8/$4.5/$4.2
Delivery Period: 5~7 work days
Payment Method: T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
ZJHK
Certification
UL,COC,CE,UKCA,SGS,EAC,RoHS
Model Number
HD-064-MC/FC
Document
HD-064-FC.pdf
Current Rating:
16A
Mating Cycles:
≥ 500
Connector Type:
Standard Connector
Customization:
Available
Number Of Contacts:
64
Voltage Rating:
250V
Limiting Temperature:
-40 ... +125 °C
Matching Housings:
24B
Highlight:

64 pins crimping terminal connector

,

10A heavy duty multi pin connector

,

64 pins electrical crimp connector

Product Description
64Pins Crimping Terminal 10A Connectors
64Pins Crimping Terminal 10A Connectors product overview

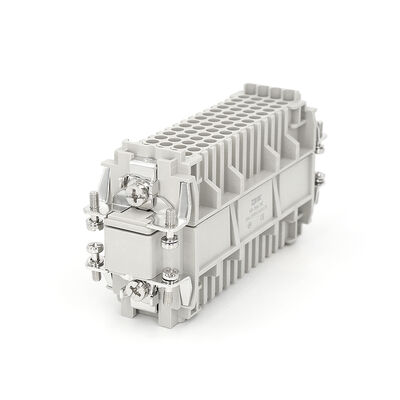

HD-064-MC/FC are 64-contact high-density crimp inserts designed for compact industrial connection systems. Rated at 10A and 250V, they are compatible with 24B hoods and housings and support crimp termination for wires from 0.14 to 2.5 mm².
Technical Specifications
Series HD
Contacts No. 64
Rated Current 10A
Rated Voltage 250V
Pollution Grade 3
Termination Method Crimping Termination
Gender Male/Female
Size 24B
Material PC
Contacts 10A
Product Drawings
HD-064-MC
HD-064-MC technical drawing
HD-064-FC
HD-064-FC technical drawing
Products Overview
64Pins connector products overview
The inserts use polycarbonate insulation and copper-alloy contacts, with silver or gold plating available. With 64 contacts in a compact 24B format, they are suitable for applications requiring multiple power, control or signal circuits in limited space. The crimp connection also makes wiring efficient and convenient for installation and maintenance.
Compatible Hoods and Housings
H24B-SEH-4B aluminum die-cast housing
H24B-SEH-4B
Aluminum Die-Cast, Side Entry, High Construction, 4 Bolts
H24B-TEH-4B aluminum die-cast housing
H24B-TEH-4B
Aluminum Die-Cast, Top Entry, High Construction, 4 Bolts
H24B-SF-2L/S aluminum die-cast housing
H24B-SF-2L/S
Aluminum Die-Cast, Surface Mounting, Stainless Levers, 2 Levers
H24B-BK-2L/S aluminum die-cast housing
H24B-BK-2L/S
Aluminum Die-Cast, Bulkhead Mounting, Stainless Levers, 2 Levers
Manufacturer Profile
Zhejiang Haoke Electric Company facility
Zhejiang Haoke Electric Co., Ltd. (ZJHK) is a manufacturer specializing in heavy-duty connectors. We focus on the design and production of reliable connection solutions for industrial automation, machinery, rail transportation, equipment manufacturing and other applications. With a wide product range, in-house technical capabilities and professional service, we support customers with both standard connectors and customized solutions.
