40pins Heavy Duty Connector 10A 09210403001
  • name
  • name
  • name
  • name

40pins Heavy Duty Connector 10A 09210403001

MOQ: 5pcs/30pcs/50pcs
Price: $3.33/$3.13/$2.92
Delivery Period: 5~7 work days
Payment Method: T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
ZJHK
Certification
UL,COC,CE,UKCA,SGS,EAC,RoHS
Model Number
HD-040-MC/HD-040-FC
Document
HD-040-MC.pdf
Limiting Temperature:
-40 °C... +125 °C
Rated Current:
10A
Matching Housings:
16B
Color:
Light Grey
Poles:
40
Voltage Rating:
250V
OEM:
Provided
Material Of Seal:
NBR
Highlight:

40pins heavy duty connector 10A

,

heavy duty multi pin connector

,

09210403001 heavy duty connector

Product Description

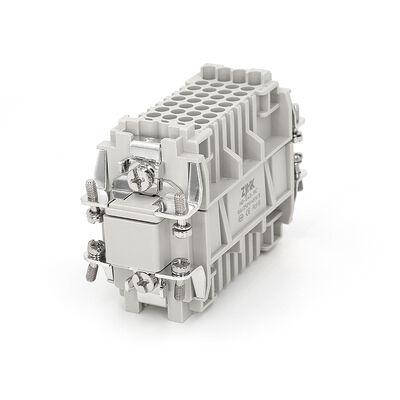

40pins Heavy Duty Connector 10A 09210403001
40-pin Heavy Duty Connector HD-040 series
The HD-040-MC and HD-040-FC are 40-pin high-density ferrules from the Haoke HD series, available in male and female configurations. Designed for use with 16A housings, these connectors are rated for 10A current and 250V voltage, making them ideal for multi-channel signal transmission applications.
This model utilizes cold-press connection technology, requiring specialized cold-press pliers for installation. During wiring, the cold-press pins are first crimped onto the wire before insertion into the ferrule. While this involves an additional pressing step compared to spring contacts, it provides superior connection reliability.
Technical Specifications
ParameterSpecification
ModelHD-040-MC/HD-040-FC
Part Number09210403001/09210403101
GenderMale and Female
Current Rating10A
Voltage Rating250V
Number of Contacts40
Termination MethodCrimp termination
Conductor Cross-section0.14 ... 2.5 mm²
Limiting Temperature-40 ... +125 °C
Material (Insert)Polycarbonate (PC)
Country of OriginChina
Note: Please order crimp contacts separately.
Product Drawings
HD-040-MC
HD-040-MC Male Connector Technical Drawing
HD-040-FC
HD-040-FC Female Connector Technical Drawing
Product Overview
40-pin Heavy Duty Connector Overview
With 40 pins, this product features a high-density configuration that saves considerable internal space compared to similar products. The ferrule body is constructed from flame-retardant V0-grade polycarbonate, while the pins are gold- or silver-plated copper alloy with contact resistance ≤3mΩ, ensuring stable and reliable signal transmission.
The operating temperature range of -40℃ to +125℃ makes this product suitable for demanding applications involving multiple signal connections, such as automation equipment, control cabinets, and industrial instruments. For applications requiring on-site wiring harness pre-fabrication, the cold-pressing method offers greater convenience than spring clips—wires can be pre-pressed into pins for direct insertion during installation.
Compatible Housings
H16B-SE-4B Side Entry Housing
H16B-SE-4B
Side Entry
H16B-TE-4B Top Entry Housing
H16B-TE-4B
Top Entry
H16B-BK-2L/S Bulkhead Mounting Housing
H16B-BK-2L/S
Bulkhead Mounting
H16B-SF-2L/S Surface Mounting Housing
H16B-SF-2L/S
Surface Mounting
About Haoke Electric
Haoke Electric Company Overview
Haoke Electric Co., Ltd. was formally established with a focus on the development and manufacture of heavy-duty connectors. The HAOKE® connector made its convincing market debut soon after and has since set a globally recognized standard, remaining the backbone of the Technology Group throughout its evolution.
Frequently Asked Questions
  • Free Samples: We provide small products for quality checking—customers only pay express fees.
  • Insert Materials: We use imported materials for injection molding to guarantee product quality.
  • Global Representation: We have signed agency agreements with customers in Korea and Northern Italy.
  • Harting Compatibility: Our HDC connectors perfectly match Harting counterparts—male parts match female parts and vice versa.
  • Harting Part Number Matching: Our order numbers are identical to HARTING's to facilitate easy matching and replacement for existing customers.
