64 Pin High Density Crimping Heavy Duty Connector
  • name
  • name
  • name

64 Pin High Density Crimping Heavy Duty Connector

MOQ: 5pcs/30pcs/50pcs
Price: $6.4/$6/$5.6
Delivery Period: 5~7 work days
Payment Method: T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
ZJHK
Certification
UL,COC,CE,UKCA,SGS,EAC,RoHS
Model Number
HEEE-064-MC/HEEE-064-FC
Document
HEEE-064-FC.pdf
Operating Temperature:
-40°C To 125°C
Material:
Aluminum Alloy
Current Rating:
16A Per Contact
Contacts No:
64 + PE
Connector Type:
Ultra High Density Connector
Matching Housings:
H24B
Voltage Rating:
500V
Highlight:

64 pin heavy duty crimping connector

,

high density multi pin connector

,

heavy duty connector with crimping

Product Description
64 Pin High Density Crimping Heavy Duty Connector
64 Pin High Density Crimping Heavy Duty Connector

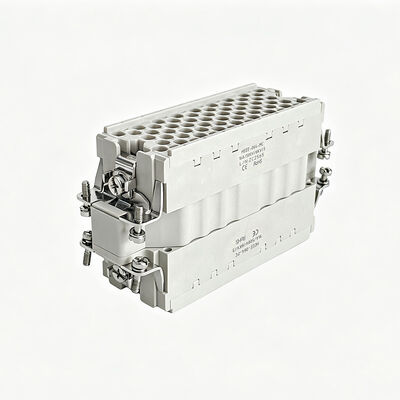

The HEEE-064-MC and HEEE-064-FC are high-density crimp inserts designed for 24B heavy-duty connector systems. With 64 contacts + PE and a rated capacity of 16A / 500V, these connectors are ideal for equipment requiring multiple circuits in limited installation space. The MC and FC versions represent matching male and female inserts, while the crimp termination ensures practical wiring and easy maintenance.

Product Specifications
Specifications DIN EN 60 664
Specifications DIN EN 61 984
Termination Method Crimping Terminal
Gender Male and Female
Rated Current 16A
Rated Voltage 500V
Rated Impulse Voltage 6kV
Rated Voltage (UL/CSA) 600V
Material Polycarbonate
Operating Temperature -40℃ to +125℃
Product Drawings
HEEE-064-MC
HEEE-064-MC Connector Drawing
HEEE-064-FC
HEEE-064-FC Connector Drawing
Product Overview
64 Pin High Density Connector Overview

The inserts utilize PC insulating material and copper-alloy contacts with silver or gold plating options, providing excellent insulation combined with stable electrical contact. Suitable for industrial automation, machinery, control cabinets, and other applications with high-density wiring requirements.

Compatible Contacts
Male Contact - Copper, Silver Plated
Rated Current: 16A
Wire Gauge: 0.14-4mm²
Gender: Male
Copper, Silver Plated
Female Contact - Copper, Silver Plated
Rated Current: 16A
Wire Gauge: 0.14-4mm²
Gender: Female
Copper, Silver Plated
Male Contact - Copper, Gold Plated
Rated Current: 16A
Wire Gauge: 0.14-4mm²
Gender: Male
Copper, Gold Plated
Female Contact - Copper, Gold Plated
Rated Current: 16A
Wire Gauge: 0.14-4mm²
Gender: Female
Copper, Gold Plated
Professional Team
ZJHK Professional Team

At ZJHK, we maintain a professional and well-coordinated team covering R&D, production, quality control, purchasing, sales, and technical support. Our departments work closely together to ensure efficient communication and smooth handling of every order. We prioritize team building and employee activities, fostering a positive working environment where team members support each other and grow together.
