64 Pin High Density Crimping Heavy Duty Connector
  • name
  • name
  • name

64 Pin High Density Crimping Heavy Duty Connector

MOQ: 5pcs/30pcs/50pcs
Price: $6.93/$6.5/$6.07
Delivery Period: 5~7 work days
Payment Method: T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
ZJHK
Certification
UL,COC,CE,UKCA,SGS,EAC,RoHS
Model Number
HEE-064-MC/HEE-064-FC
Document
HEE-032-FC(33-64).pdf
Current Rating:
16A Per Pin
Operating Temperature:
-40~125℃
Number Of Contacts:
32
Housing Material:
Die Cast Aluminium
Voltage Rating:
500V
Wire Connection:
Crimp
Housing Model:
H32B Series
Highlight:

64 pin heavy duty connector

,

high density crimping connector

,

multi pin heavy duty connector

Product Description
64 Pin High Density Crimping Heavy Duty Connector
64 Pin High Density Crimping Heavy Duty Connector

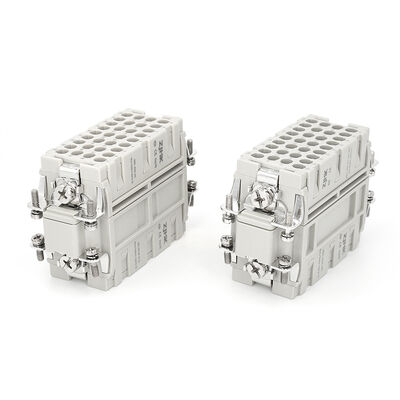

The HEEE-064-MC and HEEE-064-FC are high-density crimp inserts designed for 24B heavy-duty connector systems. With 64 contacts + PE and a rated capacity of 16A / 500V, they are ideal for equipment requiring multiple circuits in limited installation space. The MC and FC versions are matching male and female inserts, while the crimp termination ensures practical wiring and easy maintenance.
Product Specifications
Specifications DIN EN 60 664, DIN EN 61 984
Termination Method Crimping Terminal
Gender Male and Female
Rated Current 16A
Rated Voltage 500V
Rated Impulse Voltage 6kV
Rated Voltage (UL/CSA) 600V
Material Polycarbonate
Operating Temperature -40℃ to +125℃
Product Drawings
HEE-032-MC (33-64)
HEE-032-MC Connector Technical Drawing
HEE-032-FC (33-64)
HEE-032-FC Connector Technical Drawing
Product Overview
64 Pin High Density Connector Overview
These inserts utilize PC insulating material and copper-alloy contacts with silver or gold plating options, providing excellent insulation combined with stable electrical contact performance. Suitable for industrial automation, machinery, control cabinets, and other applications with high-density wiring requirements.
Matching Contacts
Male Contact with Silver Plating Male Contact Technical Specifications Female Contact with Gold Plating Female Contact Technical Specifications
Rated Current: 16A
Wire Gauge: 0.14-4mm²
Gender: Male
Material: Copper, Silver
Rated Current: 16A
Wire Gauge: 0.14-4mm²
Gender: Male
Material: Copper, Silver
Rated Current: 16A
Wire Gauge: 0.14-4mm²
Gender: Female
Material: Copper, Gold
Rated Current: 16A
Wire Gauge: 0.14-4mm²
Gender: Female
Material: Copper, Gold
Professional Team
ZJHK Professional Team
At ZJHK, we maintain a professional and well-coordinated team covering R&D, production, quality control, purchasing, sales, and technical support. Our departments work closely together to ensure efficient communication and smooth handling of every order. We prioritize team building and employee activities, fostering a positive working environment where team members support each other and grow together.
