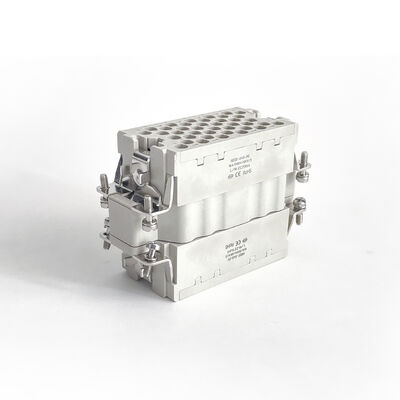

40pin Crimping Terminal 16A Heavy Duty Connector
  • name
  • name
  • name

40pin Crimping Terminal 16A Heavy Duty Connector

MOQ: 5pcs/30pcs/50pcs
Price: $5.33/$5/$4.67
Delivery Period: 5~7 work days
Payment Method: T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
ZJHK
Certification
UL,COC,CE,UKCA,SGS,EAC,RoHS
Model Number
HEEE-040-MC/HEEE-040-FC
Document
HEEE-040-FC.pdf
Application:
Industrial Automation, Machinery
Order Number:
09320403001/09320403101
Current Rating:
16A Per Contact
Wire Connection:
Crimp
Pincount:
40
Package:
Indivisual Packing In Box
Voltage Rating:
500V
Highlight:

40pin heavy duty crimping terminal

,

16A multi pin connector

,

heavy duty crimp connector

Product Description
40pin Crimping Terminal 16A Heavy Duty Connector
40pin Heavy Duty Connector Overview

The HEEE-040-MC and HEEE-040-FC are 40-contact crimp inserts designed for compact, high-density industrial connections. The MC and FC versions work as a male and female mating pair, making them suitable for applications where multiple circuits need to be arranged within limited installation space.

Specifications
Part Number 09320403001/09320403101
Series HEEE High Density Connectors
Gender Male and Female
Mating Cycle (Mechanical Working Life) ≥ 500
Matching Housings 16B
Rated Current 16A
Rated Voltage 500V
Working Temperature Range -40℃~125℃
Number of Contacts 40
Pollution Degree 3
Product Drawings
HEEE-040-MC
HEEE-040-MC Technical Drawing
HEEE-040-FC
HEEE-040-FC Technical Drawing
Product Overview
HEEE Connector Product Overview

With a 16A rated current and 500V rated voltage, the inserts can handle both power and signal transmission, while the crimp connection provides a practical way to assemble and maintain the wiring. They are suitable for use with 16B series hoods and housings and can be used in industrial automation, machinery, control cabinets and other equipment requiring high-density wiring.

Matching Contacts
CESM Contact
CESM
CESF Contact
CESF
CEGM Contact
CEGM
CEGF Contact
CEGF
Compatible Housings
H16B-SE-2B Housing
H16B-SE-2B
H16B-TE-2B Housing
H16B-TE-2B
H16B-BK-1L Housing
H16B-BK-1L
H16B-SF-1L Housing
H16B-SF-1L
Application Scenarios
Industrial Automation Application Scenario

With the continuous development of industrial automation and intelligent manufacturing, the requirements for connection systems are becoming increasingly demanding. Traditional fixed connection solutions are gradually losing their flexibility when faced with complex wiring, multi-functional integration, and equipment upgrades. In contrast, modular connectors, due to their free combination and easy expansion capabilities, are being adopted by more and more industries.

The modular direct-plug series launched by (ZJHK) is developed based on this trend, aiming to improve connection efficiency while providing more flexible connection solutions for industrial equipment.
