80Pos High Density 10A Crimp Inserts

Products

Heavy Duty Rectangular Connector

Heavy Duty Multi Pin Connector

Heavy Duty Electrical Connector

80Pos High Density 10A Crimp Inserts

MOQ:	5pcs/30pcs/50pcs
Delivery Period:	5~7 work days
Payment Method:	T/T

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Certification

UL,COC,CE,UKCA,SGS,EAC,RoHS

Model Number

HD-080-MC/FC

Document

Nos Of Contact:

Size:

Provided

Voltage:

Operating Temperature:

-45~125℃

Degree Of Protection:

Wire Connection:

Crimp

Protection:

Connector Type:

Standard Connector

Highlight:

80Pos high density crimp inserts

10A heavy duty multi pin connector

high density crimp inserts with warranty

Product Description

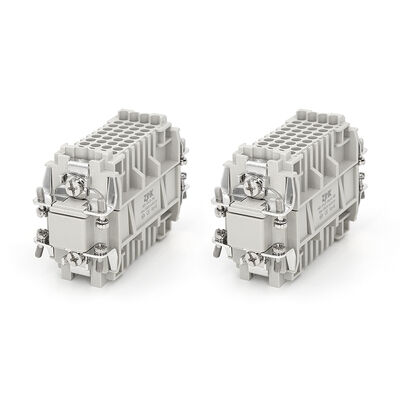

80Pos High Density 10A Crimp Inserts

The 80-position high-density inserts are engineered for industrial equipment requiring extensive circuit connections within compact spaces. Featuring an 80-contact configuration with 10A rating, these inserts efficiently organize multiple power, control, and signal connections. The crimp termination supports streamlined wiring and facilitates convenient contact replacement during maintenance operations.

Product Specifications

Parameter	Specification
Rated Current	10A
Rated Voltage	250V
Positions	40×2
Gender	Male & Female
Working Temperature	-45°C to +125°C
Connection Method	Crimping

Contact Specifications

Current Rating	10A
Material	Copper Alloy, Silver or Gold Plated
Wire Gauge	0.37-2.5mm²

Product Drawings

HD-040-MC

HD-040-FC

Key Features

10A Rated Current

Ideal for industrial power, control, and signal connection applications requiring robust current handling.

Crimp Termination

Quick and convenient cable termination without soldering, ensuring reliable connections and easy maintenance.

Application Example

Stage Lighting Systems

Reliable power connections are essential between lighting distribution equipment and lamps, while multiple control loops connect control cabinets with stage equipment. For systems requiring centralized cabling, multi-core connectors consolidate multiple lines into single connectors, reducing independent connection points and creating more compact, organized cable management solutions.

Why Choose ZJHK?

At ZJHK, we specialize in heavy-duty connector systems and offer comprehensive contact configurations for diverse industrial applications. Our team collaborates with customers throughout the process—from product selection and technical drawings to custom requirements—to deliver optimal connection solutions tailored to each project's specific needs.
