46Pin Modular Crimping Heavy Duty Connectors
  • name
  • name
  • name
  • name

46Pin Modular Crimping Heavy Duty Connectors

MOQ: 5pcs/30pcs/50pcs
Price: $3.47/$3.25/$3.03
Delivery Period: 5~7 work days
Payment Method: T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
ZJHK
Certification
UL,COC,CE,UKCA,SGS,EAC,RoHS
Model Number
HEE-046-MC/HEE-046-FC
Document
HEE-046-FC.pdf
Connector Type:
Ultra- High Density Connector
Voltage Rating:
500V
Package:
Indivisual Packing In Box
Material:
Aluminum Alloy
Durability:
500 Times Cycle
OEM:
Provided
Contacts No:
46 + PE
Matching Housings:
H24B
Highlight:

46Pin heavy duty modular connector

,

heavy duty crimping pin connector

,

multi pin modular connector

Product Description
46Pin Modular Crimping Heavy Duty Connectors
This high-density insert is designed for industrial applications where multiple circuits need to be connected in a limited space. The male and female inserts are designed to work together, providing a compact and organized connection solution. Its multi-contact layout helps reduce wiring space while keeping connections clear and easy to manage.

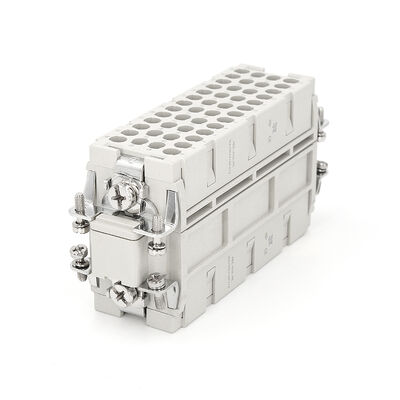

46Pin Modular Crimping Heavy Duty Connector product image
Technical Parameters
Parameter Specification
Contacts No. 46
Rated Current 16A
Rated Voltage 500V
Material PC, Copper Alloy
Color Grey
Connector Method Crimping
Gender Female/Male
Limiting Temperature -40...+125℃
Flammability UL 94 V0
Degree of Protection IP65
Products Drawings
HEE-046-MC
HEE-046-MC product drawing
HEE-046-FC
HEE-046-FC product drawing
Products Overview
46Pin Heavy Duty Connector overview
With a sturdy insulating body and reliable contacts, it is suitable for industrial automation, machinery, control cabinets, testing equipment, and other applications requiring high-density connections.
Compatible Hoods And Housings
Size 24B Side Entry housing with 2 bolts
Size: 24B, Side Entry, Bolts Number: 2, Aluminium Die cast
Size 24B Side Entry housing with 2 bolts
Size: 24B, Side Entry, Bolts Number: 2, Aluminium Die cast
Size 24B Side Entry housing with 2 bolts
Size: 24B, Side Entry, Bolts Number: 2, Aluminium Die cast
Size 24B Side Entry housing with 2 bolts
Size: 24B, Side Entry, Bolts Number: 2, Aluminium Die cast
Applications
Rail transit electrical connection application
Modular heavy-duty connectors are gradually becoming an important development direction for electrical connections in rail transit. Their flexibility and integration capabilities not only improve system design efficiency but also facilitate later maintenance. As rail transit systems continue to upgrade, the performance requirements for connectors will become increasingly stringent, and manufacturing companies like Zhejiang Haoke are continuously providing the industry with more stable and practical connection solutions.
Packaging And Delivery
Product packaging example
Product packaging example
ZJHK has relatively standardized packaging and shipping procedures, focusing primarily on protecting products and ensuring delivery efficiency. Products undergo inspection before shipment to ensure they are in good condition before entering the packaging stage. Generally, each product is individually packaged and labeled for easy identification of model and quantity, then packed together in boxes to minimize the risk of damage or mixing during transportation.
Regarding shipping, the company supports multiple transportation methods, allowing customers to choose international express (such as FedEx and UPS) or dedicated channels such as sea freight and air freight according to their needs. For regular orders, shipment can generally be arranged within one week after order confirmation. For frequently used models that are in stock, the shipping speed will be even faster. Overall, Haoke focuses on doing the basics well, with a clear process from packaging to shipping, ensuring product safety and making it as hassle-free as possible for customers receiving their goods.
