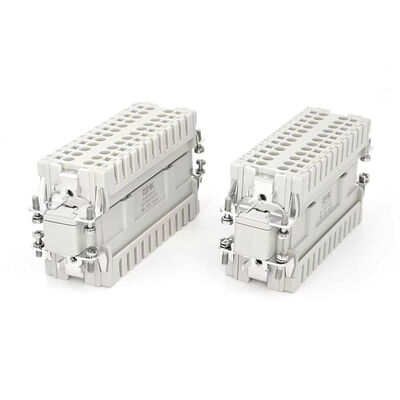

48 Pos Cage Clamp Heavy Duty Connector
  • name
  • name
  • name

48 Pos Cage Clamp Heavy Duty Connector

MOQ: 5pcs/30pcs/50pcs
Price: $12.27/$11.5/$10.73
Delivery Period: 5~7 work days
Payment Method: T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
ZJHK
Certification
UL,COC,CE,UKCA,SGS,EAC,RoHS
Model Number
HE-048-MS/HE-048-FS
Document
HE-024-MS（25-48）.pdf
Current Rating:
16A Per Contact
Durability:
500 Times Cycle
Operating Temperature:
-40~+125℃
Degree Protection:
IP65
Voltage Rating:
500V
Pollution Degree:
3
Contact Material:
Copper Alloy With Silver Plating
Highlight:

48 pos heavy duty connector

,

cage clamp rectangular connector

,

heavy duty connector with warranty

Product Description
48 Pos Cage Clamp Heavy Duty Connector
With an ashen appearance and polycarbonate construction, the HE-048 excels in withstanding high temperatures and salt spray environments. Its direct plug-in connection method makes it the ideal choice for projects with short lead times and demanding working conditions.
HE-048 Heavy Duty Connector overview
Technical Specifications
SpecificationValue
StandardsDIN EN 60 664, DIN EN 61 984
Termination MethodCage-clamp
Rated Current16A
Rated Voltage500V
Rated Impulse Voltage6kV
Pollution Degree3
Rated Voltage (UL/CSA)600V
Insulation Resistance≥10¹⁰Ω
MaterialPolycarbonate
Temperature Range-40℃ to +125℃
Flammability (UL94)V0
Technical Drawings
HE-024-MS (25-48 Positions)
HE-024-MS technical drawing
HE-024-FS (25-48 Positions)
HE-024-FS technical drawing
Product Overview
HE-048-FZ product overview
The HE-048-FZ features a sleek ashen finish that conceals minor dust and wear for long-term industrial use. Constructed from high-grade polycarbonate, it resists impacts, scratches, and maintains structural integrity. With exceptional durability, it withstands temperatures from -40°C to +125°C and passes salt spray tests, making it suitable for coastal facilities, chemical plants, and outdoor equipment. Fully certified with CE and UL approvals, it meets EU and North American safety and EMC standards. Compatible with servo motors, frequency converters, industrial robots, and outdoor sensors.
Quick Lock Termination Method
Quick lock termination method demonstration
The heavy-duty in-line connector eliminates the need for complex tools. Simply insert the wire to complete the connection. Single-strand rigid wires insert directly into wiring holes where springs automatically clamp the wire. Multi-strand flexible wires require cold-pressed terminals. To remove wires, simply press the release point with a screwdriver, making these connectors highly efficient and suitable for batch wiring applications.
Hoods and Housings
H48B-SE-2B housing
H48B-SE-2B
H48B-TE-2B housing
H48B-TE-2B
H48B-BK-1L housing
H48B-BK-1L
H48B-SF-1L housing
H48B-SF-1L
Application Scenarios
Printing machine application
Aircraft engine application

As the core component in printing machine connection systems, heavy-duty connectors address stability, efficiency, and compatibility issues of traditional wiring methods. They support the modularization, intelligence, and high-speed development of printing equipment. For manufacturers, selecting appropriate heavy-duty connectors improves equipment reliability and market competitiveness. For end users, they reduce maintenance costs and increase production efficiency.

In aircraft engines, heavy-duty connectors link sensors, actuators, and control units, transmitting control signals and monitoring data. Their high-temperature and vibration-resistant properties ensure reliable connections in harsh engine environments, allowing control units to accurately monitor engine status and adjust parameters for efficient, stable operation.

Certifications
Certification mark 1
Certification mark 2
Certification mark 3
