Male and Female 16 Poles Srewing Connector
  • name
  • name
  • name
  • name

Male and Female 16 Poles Srewing Connector

MOQ: 5pcs/30pcs/50pcs
Price: $4/$3.75/$3.5
Delivery Period: 5~7 work days
Payment Method: T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
ZJHK
Certification
UL,COC,CE,UKCA,SGS,EAC,RoHS
Model Number
HE-016-M/HE-016-F
Document
HE-016-F.pdf
Durability:
500 Times Cycle
Wire Connection:
Screw
Operating Temperature:
-40~+125℃
Number Of Contacts:
16
Housings:
H16B Series
Part Number:
09330162601/09330162701
Current:
16A
Reated Voltage:
500V
Highlight:

16 poles screwing connector

,

heavy duty rectangular connector

,

male female screwing connector

Product Description

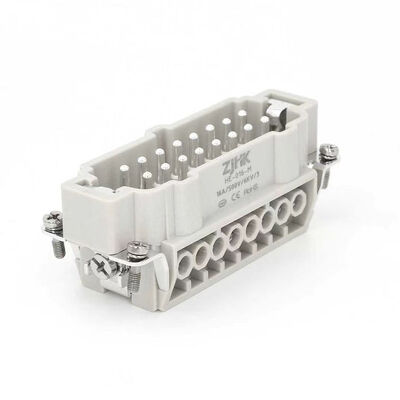

Male and Female 16 Poles Screwing Connector
These 16-pole HE series female and male ferrules feature a polycarbonate housing in off-white color. They provide excellent insulation and waterproofing properties, making them ideal for harsh operating environments. Widely used in hot runners, construction machinery, and aerospace applications.
HE series heavy-duty connector overview Close-up view of 16-pole connector
Product Specifications
Parameter Specification
Terminal Method Screwing
Gender Male and Female
Model HE-016-M/HE-016-F
Rated Current 16A
Rated Voltage 500V
Rated Impulse Voltage 6kV
Pollution Degree Ⅲ
Rated Voltage (UL/CSA) 600V
Life Cycles ≥500 times
Stripping Length 7.5mm
Technical Drawings
HE-016-M
HE-016-M technical drawing and dimensions
HE-016-F
HE-016-F technical drawing and dimensions
Screwing Terminal Technology
Screwing terminal connection mechanism
The conductors in the cable (usually bare or with crimp terminals) are secured to the connector's crimp terminals, which are then screwed onto a screw guide or bolt to create a secure connection. Compared to more complex connection methods, screw connections are relatively simple and easy to understand, making them easier to install and maintain.
Heavy-duty connectors and their screw connections are designed to withstand harsh environments such as dust, moisture, and extreme temperatures, providing a reliable solution for demanding industrial applications.
Manufacturing Capabilities
Skyray Instrument quality control equipment
Skyray Instrument
EDXRF Spectrometer for material analysis
EDXRF Spectrometer
Temperature test bed for environmental testing
Temperature Test Bed
Organized warehouse storage facility
Warehouse Facility
Application Scenarios
Injection molding machine application
Injection Molding Machine
When the injection molding machine is working, the heating system needs to continuously and stably provide a large amount of heat to melt the plastic raw materials so they can be injected into the mold for molding. This requires the power transmission components connected to it to withstand large currents.
The drive motor is responsible for providing power for the injection molding machine's mold closing, injection and other actions, and its operation is also accompanied by large current fluctuations, making reliable connectors essential for optimal performance.
Company Profile
Zhejiang Haoke Electric Co. Ltd.
Zhejiang Haoke Electric Company facility
We began building our mold-making team in 2012 and were officially established in 2014. The following year, the company obtained CQC/CE/RoHS certification, and in 2016, we passed ISO9001 management system certification. Through continuous effort, the company obtained UL certification in 2019.
The company's comprehensive product range, including HA, HE, HEE, HD, and HSB series, is suitable for a wide range of applications, providing professional solutions for the connectivity needs of demanding industrial environments. Haoke Electric looks forward to collaborating with you on a path of mutual success.
