10pins Screw Termination Heavy Duty Connector
  • name
  • name
  • name
  • name

10pins Screw Termination Heavy Duty Connector

MOQ: 5pcs/30pcs/50pcs
Price: $3.2/$3.0/$2.8
Delivery Period: 5~7 work days
Payment Method: T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
ZJHK
Certification
UL,COC,CE,UKCA,SGS,EAC,RoHS
Model Number
HE-010-M/HE-010-F
Document
HE-010-F.pdf
Number Of Contacts:
10
Rated Current:
16A
Contact Material:
Copper Alloy
Order Number:
09330102601/09330102701
Operating Temperature:
-40~+125℃
Connector Type:
Standard Connector
Rated Voltage:
500V
Product Name:
Heavy Duty Connector
Highlight:

10pin screw termination connector

,

heavy duty rectangular connector

,

screw termination heavy duty connector

Product Description
10pins Screw Termination Heavy Duty Connector

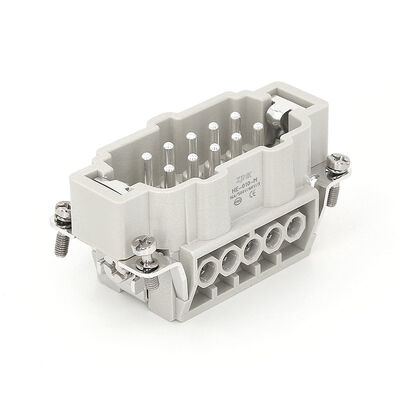

10-pin Heavy Duty Connector - Front View 10-pin Heavy Duty Connector - Side View
The HE-010-M (male) and HE-010-F (female) are 10-pin screw-connector connectors from the HE series, compatible with H10B housing sizes. The screw-connection method offers a very secure connection, suitable for high-current or long-term power applications. It supports wire widths from 0.14-4.0 mm², a stripping length of 7 mm, a tightening torque of 0.5 Nm, and is simple and straightforward to operate. These 10-pin connectors are widely used in industrial automation, control cabinets, and power equipment. The male and female connectors can be used together to meet the signal or power transmission needs of multiple lines.
Product Specifications
Specifications DIN EN 60 664
Specifications DIN EN 61 984
Numbers of poles 10
Terminal Way Screwing Termination
Gender Male/Female
Model HE-006-M/HE-006-F
Current 16 Ampere
Rated Voltage 500V
Impulse Voltage 6kV
Insulation Resistance ≥1010Ω
Material Polycarbonate
Working Temperature -40℃...+125℃
Flammability Acc.to UL94 V0
Product Drawings
HE-010-M
HE-010-M Connector Technical Drawing
HE-010-F
HE-010-F Connector Technical Drawing
Compatible Hoods and Housings
H10B-BK-1L Hood - Side Entry
H10B-BK-1L
Degree of protection: IP65
Hood, side entry
H10B-SF-1L Hood - Top Entry
H10B-SF-1L
Degree of protection: IP65
Hood, top entry
H10B-TE-2B Housing - Bulkhead Mounting
H10B-TE-2B
Degree of protection: IP65
Housing, bulkhead mounting
H10B-SE-2B Housing - Surface Mounting
H10B-SE-2B
Degree of protection: IP65
Housing, surface mounting
Applications Scenarios
Power Energy System
Heavy Duty Connector in Power Energy System Application
In the wave of global energy structure transformation towards green and low-carbon, the new energy industry is booming at an unprecedented speed. The technology in wind power, photovoltaics, energy storage, new energy vehicles and other sub-sectors continues to break through, and the installed capacity and market scale continue to expand. New energy equipment and systems are often in complex and harsh working environments, so they place extremely high demands on the reliability, stability and safety of electrical connections. With its excellent performance, heavy-duty connectors play a vital role in the field of new energy, becoming a key component to ensure the efficient operation of various new energy equipment, and providing solid connection support for the efficient use of green energy and sustainable development.
How to Cooperate With Us?
Company Location and Contact Information
Our Address: No.166, Huapu Road, Wengyang Industrial Park, Yueqing City, Zhejiang Province, China 325600
Phone Number: +86 18067786591
Email: nelson@zjhkele.com
