6Pins 16A HanB Heavy Duty Connector
  • name
  • name
  • name
  • name

6Pins 16A HanB Heavy Duty Connector

MOQ: 5pcs/30pcs/50pcs
Price: $2.13/$2/$1.87
Delivery Period: 5~7 work days
Payment Method: T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
ZJHK
Certification
UL,COC,CE,UKCA,SGS,EAC,RoHS
Model Number
HA-032-M/HA-032-F
Document
HE-006-F.pdf
Current:
16A
Contact Type:
Screw
Voltage:
500V
Operatingtemperaturerange:
-40°C To +125°C
Model Type:
HE Series
Number Of Contacts:
6
Macthing Housing Size:
6B
Pollution Degree:
3
Contactmaterial:
Copper Alloy With Silver Plating
OEM:
Provided
Highlight:

6Pins heavy duty connector

,

16A HanB rectangular connector

,

heavy duty connector with warranty

Product Description
6Pins 16A HanB Heavy Duty Connector
The HDC-006 screwing terminal type connector offers easy installation without requiring professional tools. Featuring six 16A contacts made from copper alloy, this connector is particularly suitable for users who prefer straightforward installation methods.

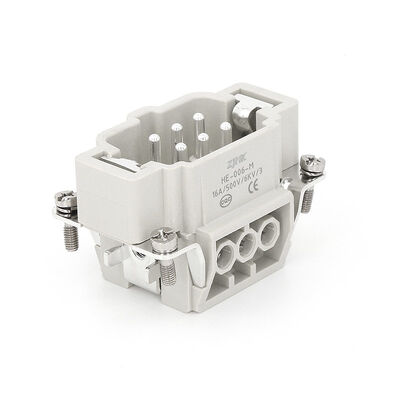

6Pins 16A HanB Heavy Duty Connector front view 6Pins 16A HanB Heavy Duty Connector side view
Product Specifications
Specifications Details
Standards DIN EN 60 664, DIN EN 61 984
Number of Poles 6
Terminal Type Screwing Termination
Gender Male
Model HE-006-M/F
Current Rating 16 Ampere
Rated Voltage 500 Voltage
Impulse Voltage 6kV
UL/CSA Rated Voltage 600 Voltage
Product Drawings
HE-006-M
HE-006-M connector technical drawing
HE-006-F
HE-006-F connector technical drawing
Product Overview
Heavy duty connector overview and components
Design Features
The light gray plastic main body provides insulation protection, ensures adaptability, and delivers installation stability. Metal screws on the side facilitate assembly and secure fastening.
Connection Method
This connector utilizes screw terminal connection, where wires are inserted at the bottom and secured with side screws. This standard connection method offers straightforward installation without specialized tools.
Screw terminal connection demonstration
Screw terminal connections provide convenient operation during installation. The installation process involves first fixing the base to the cabinet, connecting wires to core components, then securing the core components to the base. Proper screw tightening force is essential for optimal performance.
Quality Assurance & Testing
Testing equipment for material performance
Electrical safety testing device
Mechanical force testing equipment
Environmental adaptability testing device
We employ advanced testing equipment covering the entire product lifecycle, from material performance to electrical safety, mechanical force, and environmental adaptability, ensuring comprehensive quality control.
Professional Team
ZJHK professional team working on connectors
Our dedicated team specializes in connector production and maintains strong cohesion through regular team building activities. We provide comprehensive professional and product training to all employees, implementing full-spectrum monitoring from quality control to after-sales service to earn customer recognition and trust.
Application Scenarios
Heavy duty connector in construction machinery
Construction Machinery
Connector applications in automation industry
Automation Industry
Wind energy applications for heavy duty connectors
Wind Energy
Hot runner system connector applications
Hot Runner Systems
ZJHK connectors offer a comprehensive product range capable of handling current, pneumatic signals, and electrical signal transmission across diverse industrial applications.
One-Stop Heavy Duty Connector Manufacturer
ZJHK manufacturing facility and production line
With over ten years of specialization in heavy duty connectors, ZJHK maintains complete production capabilities with professional teams and equipment. Our extensive portfolio includes dozens of patents and multiple product series (HA, HE, HD, HK, HM), along with OEM services to meet specific customer requirements. Contact us to explore business partnership opportunities.
