Industrial Robots Automotive Crimp Connector 16A 500V 09320323101

Industrial Robots Automotive Crimp Connector 16A 500V 09320323101

  • Industrial Robots Automotive Crimp Connector 16A 500V 09320323101
  • Industrial Robots Automotive Crimp Connector 16A 500V 09320323101
  • Industrial Robots Automotive Crimp Connector 16A 500V 09320323101
  • Industrial Robots Automotive Crimp Connector 16A 500V 09320323101
Industrial Robots Automotive Crimp Connector 16A 500V 09320323101
Product Details:
Place of Origin: China
Brand Name: ZJHK
Certification: CE, SGS, CQC, RoHS
Model Number: HEE-032-FC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard Export Cartons
Delivery Time: 5 Days
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 100,000 pcs per month
Contact Now
Detailed Product Description
Order Number: 09320323101 Model Type:: High Density Connector HEE Series
Material: Polycarbonate Sabic 3412 ECR Contact Type: Crimp
Current: 16A Voltage: 500V
OEM: Provided Nos Of Contact: 32
High Light:

Robots Automotive Crimp Connector

,

16A Automotive Crimp Connector

,

09320323101 Crimp Connector

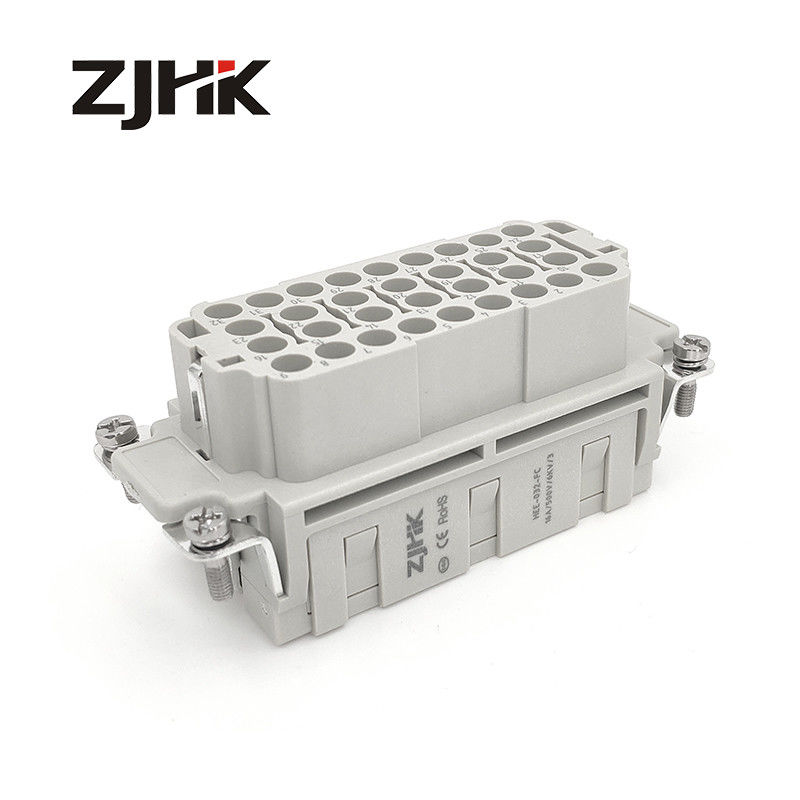

HEE 32 Pin Rectangular Electrical Connector with Crimp Wire Terminal 09320323101

Replace Weidmuller perfectly





Quick Details:



Inserts, Crimp termination, Female, Polycarbonate, RAL 7032 (pebble grey), Rated current: 16A, Size: 16 B, Contacts: 32, 1

Part number: 09320323101



1. Model: HEE-032-MC / HEE-032-FC

2. No.of Contacts: 32 + PE

3. Electrical Rating: 16A, 500V

4. Optional Voltage to 1000V when modifying contact arrangement
5. Wiring: Crimp termination

6. Compatible: Harting Han Connectors

Technical data

Identification
Category Inserts
Series HEE
Version
Termination method Crimp termination
Gender Female
Size 16 B
Number of contacts 32
PE contact Yes
Details Please order crimp contacts separately.
Technical characteristics
Conductor cross-section 0.14 ... 4 mm²
Conductor cross-section AWG 26 ... AWG 12
Rated current 16 A
Rated voltage 500 V
Rated impulse voltage 6 kV
Pollution degree 3
Insulation resistance ≥ 1010 Ω
Limiting temperature -40 ... +125 °C
Mating cycles ≥ 500
Material properties
Material (insert) Polycarbonate
Colour (insert) Grey
Material flammability class acc. to UL 94 V-0
RoHS compliant
Commercial data
Application
Electrical Field Control Cabinet
Railway Transportion High Speed Rail Vehicles
Energy Industrial Wind, Solar
Machinery Building ot Runner, Plastic Injection Machine, Textile Machinery, Elevator, Lather Machine
Automation Robotic Machine



Industrial Robots Automotive Crimp Connector 16A 500V 09320323101 0



Click here to know more about 16B housing

→16B housing←



Industrial Robots Automotive Crimp Connector 16A 500V 09320323101 1

Description

1) HEE series Heavy Duty Connector offers high-density contacts and is designed based on HE inserts with rating at 16A, 500 voltage. It owns big advantages in a tight space.

2) HEE-032 Inserts are designed with crimp wire connection and the contacts will be provided seperately.

3) The contacts ranges from 26 to 12 AWG, with hard-silver or hard-gold plated.

4) H16B housing is provided for HEE-032 inserts. Side entry, top entry, bulkhead mount, surface mount, cable to cable mount, etc are available.

5) Single Lever or Double Levers in stainless steel is optional.

6) Plastic cover or metal cover is also available.

7) PG thread or Metric thread PG21, PG29, M25, M32, M40 are offered.
