Crimping 92Pos High Density Insert
  • name
  • name
  • name

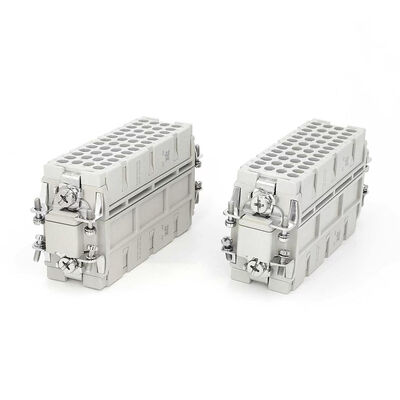

Crimping 92Pos High Density Insert

MOQ: 5pcs/30pcs/50pcs
Price: $8/$7.5/$7
Delivery Period: 5~7 work days
Payment Method: T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
ZJHK
Certification
UL,COC,CE,UKCA,SGS,EAC,RoHS
Model Number
HEE-092-MC/HEE-092-FC
Document
HEE-046-FC(47-92).pdf
Temperature Range:
-40℃...+125℃
Voltage Rating:
500V
Degree Of Protection:
IP65
OEM:
Provided
Inserts:
Polycarbonate
Package:
Indivisual Packing In Box
Gender:
Male/Female
Matching Housings:
H48B
Highlight:

92 position crimping connector

,

high density insert connector

,

heavy duty crimping connector

Product Description
Crimping 92Pos High Density Insert
Crimping 92Pos High Density Insert product overview

The HEE-092-MC and HEE-092-FC are high-density inserts developed for heavy-duty connector systems where a large number of circuits need to be handled in a limited space. The MC and FC versions are designed as matching male and female inserts, providing a practical solution for complex industrial wiring.

Technical Specifications
Specifications DIN EN 60 664
Connection Type Crimp
Number of Contacts 46×2
Rated Current 16A
Rated Voltage 500V
Model Part Number
HEE-046-MC(1~46) 09320463001
HEE-046-MC(47~92) 09320463011
HEE-046-FC(1~46) 09320463101
HEE-046-FC(47~92) 09320463111
Product Drawings
HEE-046-MC(47~92)
HEE-046-MC(47~92) technical drawing
HEE-046-FC(47~92)
HEE-046-FC(47~92) technical drawing
Product Overview
Crimping 92Pos High Density Insert application overview

With 92 contacts, this series is suitable for equipment with demanding signal and control wiring requirements. Its high-contact configuration helps bring more circuits together in a single connector, reducing the need for multiple separate connection points and keeping the overall wiring arrangement more compact. The inserts can be paired with suitable heavy-duty housings and are suitable for industrial automation, control cabinets, machinery, production equipment, and other applications requiring high-density connections.

Matching Contacts
Copper alloy male contact with silver plating
Copper alloy with silver plated
Rated Current: 16A
Wire Gauge: 0.14~4mm²
Gender: Male
Copper alloy female contact with silver plating
Copper alloy with silver plated
Rated Current: 16A
Wire Gauge: 0.14~4mm²
Gender: Female
Copper alloy male contact with gold plating
Copper alloy with gold plated
Rated Current: 16A
Wire Gauge: 0.14~4mm²
Gender: Male
Copper alloy female contact with gold plating
Copper alloy with gold plated
Rated Current: 16A
Wire Gauge: 0.14~4mm²
Gender: Female
Factory and Equipment
ZJHK manufacturing facility and equipment
ZJHK production equipment and machinery
ZJHK quality control and testing equipment
Delivery and Packaging
ZJHK product packaging and protection
ZJHK export carton packaging

ZJHK offers flexible shipping options to meet different order requirements, including international express, air freight, and sea freight. We keep production and order handling efficient, and standard orders can normally be prepared for shipment within 10 days after order confirmation, helping customers keep their projects on schedule.

Every ZJHK product is checked before packing and then placed in a protective bag or inner package to reduce the risk of scratches, dust, and damage during transportation. The products are finally packed into strong export cartons, with the packaging arranged to make better use of space while keeping the goods secure throughout the delivery process.
