Screw Terminal 48pos Standard Inserts
  • name
  • name
  • name

Screw Terminal 48pos Standard Inserts

MOQ: 5pcs/30pcs/50pcs
Price: $10.67/$10/$9.33
Delivery Period: 5~7 work days
Payment Method: T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
ZJHK
Certification
UL,COC,CE,UKCA,SGS,EAC,RoHS
Model Number
HE-048-M/HE-048-F
Document
HE-024-M(25-48) .pdf
Product Name:
Heavy Duty Connector
Connector Type:
Standard Connector
Current:
16A
Protection Degree:
IP65
Standardscompliance:
UL, CE, RoHS
NumberS Of Contacts:
48
Connection Type:
Screw Terminal
Housingcolor:
Grey
Voltage Rating:
500V
Highlight:

48 position screw terminal

,

heavy duty connector inserts

,

standard screw terminal inserts

Product Description
Screw Terminal 48-Position Standard Inserts
This heavy-duty connector can simultaneously connect 48 cables and is compatible with 48B hoods and housings. With wide application scenarios including temperature controllers and industrial equipment, HE series connectors feature highly conductive copper alloy contacts with special plating for enhanced oxidation and corrosion resistance.
Screw Terminal 48-Position Connector Overview
Product Specifications
Parameter Specification
Terminal Method Screw Terminal
Number of Contacts 24×2
Model HE-024-M(1-24)
HE-024-M(25-48)
Rated Current 16A
Rated Voltage 500V
Rated Impulse Voltage 6kV
Pollution Degree Ⅲ
Rated Voltage (UL/CSA) 600V
Insulation Resistance ≥10¹⁰Ω
Material Polycarbonate
Flammability (UL94) V0
Life Cycle Times ≥500
Contact Material Copper Alloy
Contact Resistance ≤1mΩ
Product Drawings
HE-024-M(25-48)
HE-024-M(25-48) Technical Drawing
HE-024-F(25-48)
HE-024-F(25-48) Technical Drawing
Product Overview
Appearance

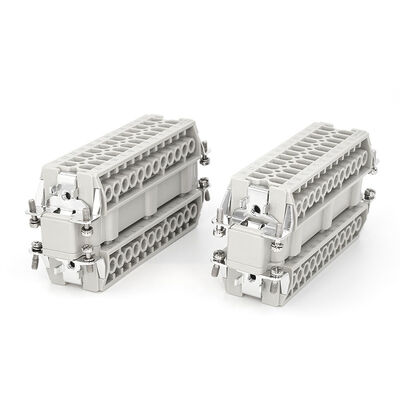

48-Pin Heavy Duty Connector Appearance
The 48-pin heavy duty connector is assembled from two 24-pin inserts. The contacts are manufactured from copper alloy for excellent conductivity, while the main body is constructed from polycarbonate material providing superior insulation performance.
Screw Termination Guidelines
Screw Termination Process Illustration
When performing screw termination, be aware of potential issues including inconsistent tightening force between manual and electric screwdrivers, which can prevent proper screw tightening. Vibration during operation may cause screw loosening. Inconsistent force application and improper tooling can easily cause screw head slippage, significantly increasing installation difficulty.
Compatible Accessories
H48B-SE-2B Side Entry Hood
H48B-SE-2B Side Entry
H48B-TE-2B Top Entry Hood
H48B-TE-2B Top Entry
H48B-BK-1L Bulkhead Mounting
H48B-BK-1L Bulkhead Mounting
H48B-SF-1L Surface Mounting
H48B-SF-1L Surface Mounting
Manufacturing & Quality Assurance
Warehouse Storage Facility
Production Equipment
Quality Control Station
Testing Laboratory
Application Scenarios
CNC Machine Tool Application
In modern manufacturing environments, CNC machine tools require high-precision, high-efficiency electrical connections for optimal performance. Heavy-duty connectors serve as critical bridges within complex electrical systems of CNC equipment, ensuring reliable transmission of power, signals, and data while withstanding harsh industrial environments. These connectors are essential components for maintaining continuous, stable operation of CNC machine tools and other industrial automation equipment.
