HMK 003 Heavy Duty Electrical Connector 10A Signal Contact
  • name
  • name

HMK 003 Heavy Duty Electrical Connector 10A Signal Contact

MOQ: 1
Price: negotible
Standard Packaging: Standard Export Cartons
Delivery Period: 5 Days
Payment Method: L/C, T/T, Western Union, Paypal
Supply Capacity: 100,000 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
ZJHK
Certification
CE, SGS, CQC, RoHS
Model Number
HMK-003/4-MC / HMK-003/4-FC
Order Number:
09140073001 & 09140073101
Model Type::
Modular Connector HM Series
Material:
Polycarbonate Sabic 3412 ECR
Contact Type:
Crimp
Current:
40A / 10 A
Voltage:
830V
OEM:
Provided
No Of Contact:
4+3
Highlight:

HMK 003 Heavy Duty Electrical Connector

,

10A Signal Contact Heavy Duty Connector

,

Polycarbonate Heavy Duty Electrical Connector

Product Description



HMK 003 4 830V Crimp Module Combined inserts





Inserts

Technical Characteristics







Type Inserts
Number of contacts 3(Power) + 4(Signal) + PE
Power contacts
Rated current 40A
Rated voltage 830V
Rated Impulse voltage 8KV
Signal contacts
Rated current 10A
Rated voltage 830V
Rated Impulse voltage 8KV
Pollution degree 3
Rated Voltage Acc.to ul 600V
MecHKnical Working Life-mating Cycles >=500
Contacts
Material Copper Alloy
Surface Hard-silver Plated ( 40A )
  Hard-silver Plated ( 40A ) ,Hard-silver Plated( 10A )
Contact Resistance
Power contacts =< 0.3mΩ
Power contacts 1.5-6mm²
Power contacts 16-10 AWG
Signal contacts =< 3mΩ
Signal contacts 0.14-2.5 mm²
Signal contacts 26-14 AWG
Max.insulation diameter of power contacts 5mm
Tool TL02-0G Crimping Tool, TL06G Contact Removal Tool





Picture View

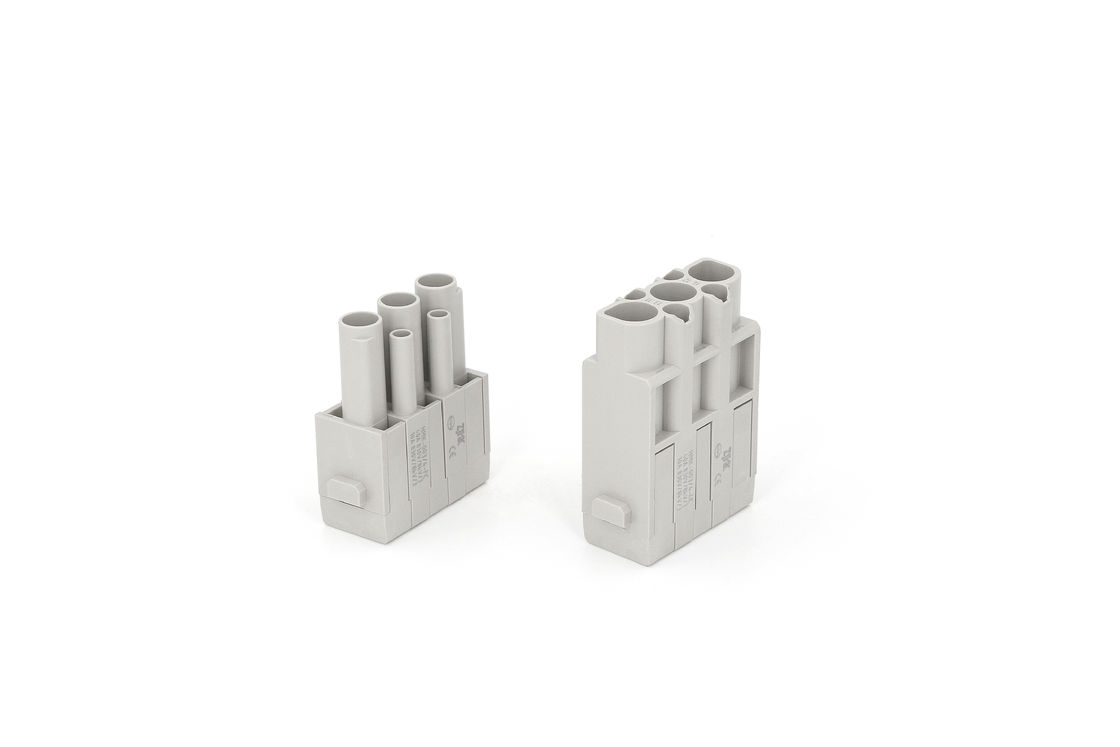

HMK 003 Heavy Duty Electrical Connector 10A Signal Contact 0



Drawing

Male inserts

HMK 003 Heavy Duty Electrical Connector 10A Signal Contact 1

Female inserts

HMK 003 Heavy Duty Electrical Connector 10A Signal Contact 2

Related Products



HMK 003 Heavy Duty Electrical Connector 10A Signal Contact 3

HMK 003 Heavy Duty Electrical Connector 10A Signal Contact 4

40A CRIMP CONTACTS,POWER CONTACTS



HMK 003 Heavy Duty Electrical Connector 10A Signal Contact 5

HMK 003 Heavy Duty Electrical Connector 10A Signal Contact 6

HMK 003 Heavy Duty Electrical Connector 10A Signal Contact 7



FAQ:



1.

Q:Are you manufactory or trade company?


A:We are the manufactory in Wenzhou,Zhejiang Province,China.

2.

Q:If we are interested in your heavy duty connector,can we visit your factory ?



A:Yes. We are normally welcome you visit us and we can learn more from each other.



3.

Q:Can we use your HDC Male part match Harting Female part ? Or Female part match Male part.

A:Of curse we can match harting perfectly.



4.

Q:what’s your advantage compare with Harting,ILME,TE(SIBAS)?



A:Our HDC can replace Harting,ILME,TE(SIBAS)perfectly,most of clients who use those brand before,After the test ,they choose us.Also our price is lower than Harting 40-50%.



HMK 003 Heavy Duty Electrical Connector 10A Signal Contact 8
