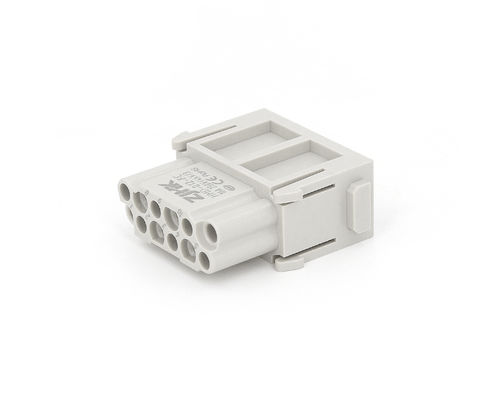

10A 12 Pin Module Combined Crimp Inserts 09140123001 09140123101 HMD 012
  • name
  • name

10A 12 Pin Module Combined Crimp Inserts 09140123001 09140123101 HMD 012

MOQ: 5
Price: negotible
Standard Packaging: Standard Export Cartons
Delivery Period: 5 Days
Payment Method: L/C, T/T, Western Union, Paypal
Supply Capacity: 100,000 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
ZJHK
Certification
CE, SGS, CQC, RoHS
Model Number
HMD-012-MC / HMD-012-FC
Order Number:
09140123001 & 09140123101
Model Type::
Modular Connector HM Series
Material:
Polycarbonate Sabic 3412 ECR
Contact Type:
Crimp Terminal
Current:
10A
Voltage:
250V
OEM:
Provided
Highlight:

09140123101 Heavy Duty Electrical Connector

,

HMD 012 Heavy Duty Electrical Connector

,

10A Heavy Duty Electrical Connector

Product Description

10A 12 Pin Module Combined crimp Inserts





Features:



TYPE:HMD-012-MC/HMD-012-FC



Part number:

09140123001(Male)

09140123101(Female)



• 12 Pin Pcrimp contacts
• Modules are polarised
• Use crimp tool stock with locator stock

• Extraction tool is stock n

• Mating cycles ≥ 500
• Heavy duty power connector





Specifications

Accessory Type Module
Gender Male and Female
Current Rating 10A
Voltage Rating 250 V
Number of Contacts 12
Range HM
Series ZJHK H-Modular
Number of Rows 2
Termination method Crimp termination
Details Please order crimp contacts separately.
Conductor cross-section 0.14 ... 2.5 mm²
Rated current 10 A
Rated voltage 250 V
Rated impulse voltage 4 kV
Pollution degree 3
Limiting temperature -40 ... +125 °C
Mating cycles with other HMC components ≥ 10,000
Material (insert) Polycarbonate (PC)
Country of origin China









10A 12 Pin Module Combined Crimp Inserts 09140123001 09140123101 HMD 012 0

The H-Modular series is a system consisting of insert modules and frames into which the insert modules fit. These in turn may be fitted to standard ZJHK housings.



The system allows a variety of insert configurations within the one connector assembly.



The ZJHK H-Modular system is designed to meet specific requirements of individual customers and offers flexibility when considering connections for signal, power & pneumatic lines when a solution is required with one connector Apart from the quality of the crimp connector, the right choice of the assembly tool is the basic element of a reliable connection.



HAOKE offers appropriate crimping tools for different levels of automation for all connectors.



10A 12 Pin Module Combined Crimp Inserts 09140123001 09140123101 HMD 012 1

10A 12 Pin Module Combined Crimp Inserts 09140123001 09140123101 HMD 012 2

10A 12 Pin Module Combined Crimp Inserts 09140123001 09140123101 HMD 012 3

FAQ:

1.

Q:Free Sample.


A:we provide small products to check quality for you, just you pay the express fees.



2.

Q:What’s your material for inserts ?



A:In order to guarantee the quality of the products, we use the imported material SABIC 3412 for injection molding.



3.

Q:Do you have any agent around word?



A:Yes ,We are honored to be favored by Korean and Italian (Northern) customers and have signed an agency agreement.



4.

Q:Can we use your HDC Male part match Harting Female part ? Or Female part match Male part.



A:Of curse we can match harting perfectly.



5.

Q:I were use Harting brand before,can i tell you their order number to help me match ?



A:Of course you can help you.Actually , in order to facilitate the use of harting's customers, we have set the order number to be the same as HARTING, so that customers can match and replace.

10A 12 Pin Module Combined Crimp Inserts 09140123001 09140123101 HMD 012 4
