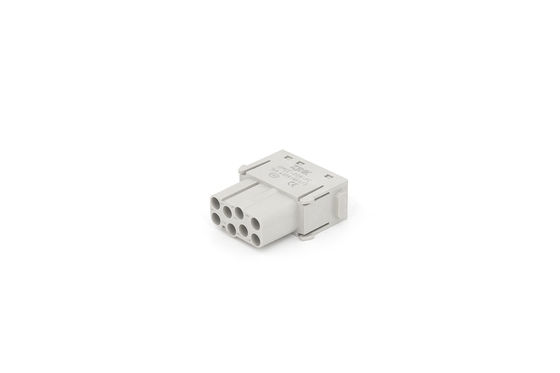

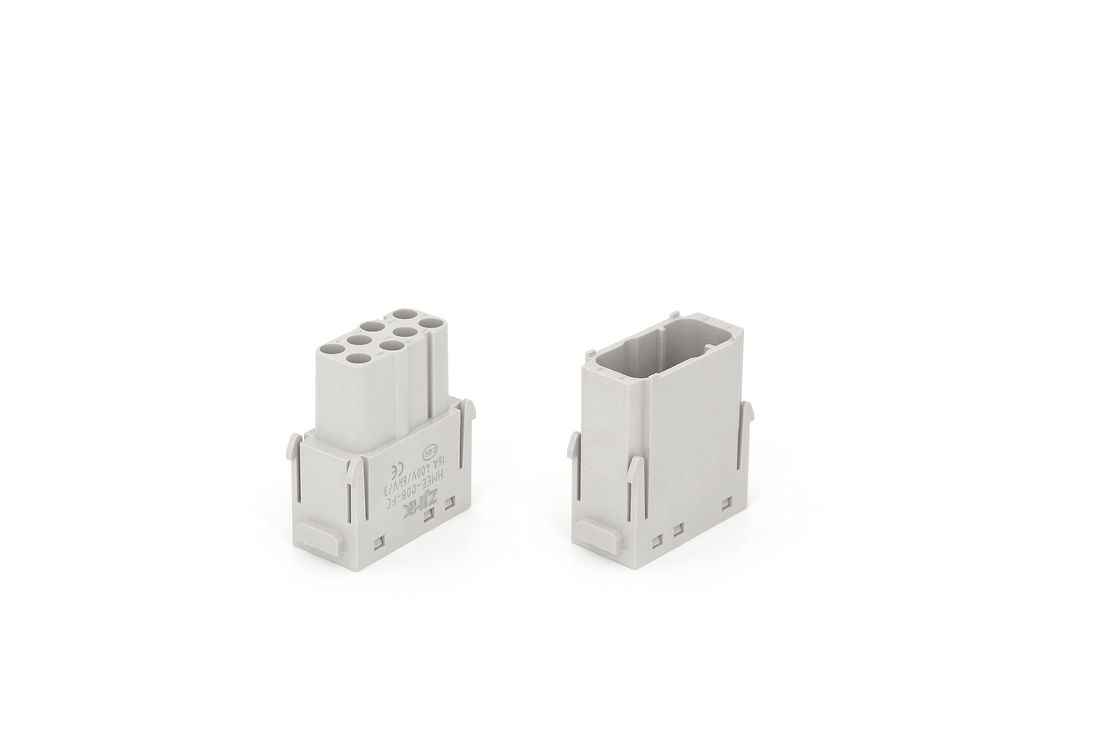

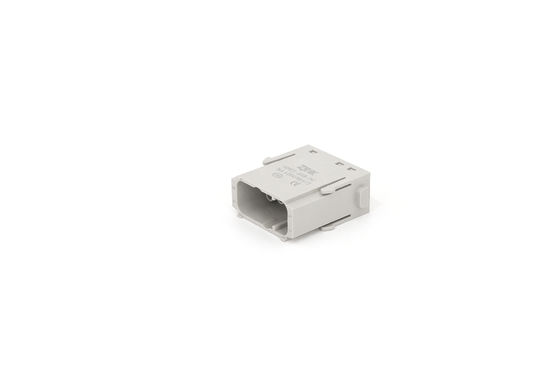

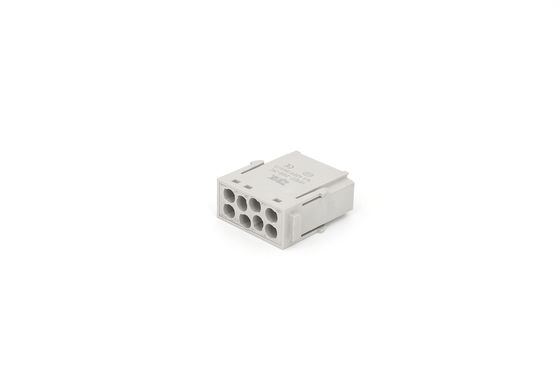

HMEE 008 16A 400V Crimp Electrical Module 09140083001 09140083101

Product Details:

Place of Origin:	China
Brand Name:	ZJHK
Certification:	CE, SGS, CQC, RoHS
Model Number:	HMEE-008-MC / HMEE-008-FC

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	negotible
Packaging Details:	Standard Export Cartons
Delivery Time:	5 Days
Payment Terms:	L/C, T/T, Western Union, Paypal
Supply Ability:	100,000pcs per month

Contact Now

Detailed Product Description

Order Number:	09140083001 & 09140083101	Model Type::	Modular Connector HM Series
Material:	Polycarbonate Sabic 3412 ECR	Contact Type:	Crimp
Current:	16A	Voltage:	400V
OEM:	Provided	No Of Contacts:	8
High Light:	400V Crimp Electrical Module , HMEE 008 Electrical Module , 09140083101 Electrical Module

HMEE 008 16A 400V crimp Module Combined terminal

Manufacturer	ZJHK
Type of connector	rectangular
Connector	module
Connector series	HM
Number of pins	8
Connector variant	w/o contacts
Current rating	16A
Rated voltage	400V
Gender	MC/FC
Mating Cycle	>= 500
Size	Requires use with Hinged frame (purchased separately)
Termination Method	Crimp Terminal
Wire Gauge	0.14mm2 – 4mm2 (AWG26-12)
Tool Recommend	TL02G Crimping Tool, TL01 Contact Removal Tool
Contact resistance	Contact resistance
Details	Please order contacts separately.

Flexible Combination Heavy Duty Power Connector Insert, 8 Poles , 400V, 16A, Male, Crimp Terminal, Crimp Module. (Order Crimp Contacts Separately)

Design drawing

HMEE 008 16A 400V Crimp Electrical Module 09140083001 09140083101 0

The new Modular® Hinged Frame Plus delivery time savings up to 40%. Increase the efficiency of your assembly!

10.000 mating cycles due to contacts made of metal. Optimized flow rate for maximally efficiency.

Application

Pre-installed

Faster, save time, safe and reliable.

Long-term tests are possible

Mechanical construction and modified connectors

Customised packaging ensures safe shipping
