| Place of Origin: | China |
| Brand Name: | ZJHK |
| Certification: | CE, SGS, CQC, RoHS |
| Model Number: | HMD-012-MC / HMD-012-FC |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotible |
| Packaging Details: | Standard Export Cartons |
| Delivery Time: | 5 Days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100,000 pcs per month |
| Order Number: | 09140123001 & 09140123101 | Model Type:: | Modular Connector HM Series |
|---|---|---|---|
| Material: | Polycarbonate Sabic 3412 ECR | Contact Type: | Crimp Terminal |
| Current: | 10A | Voltage: | 250V |
| OEM: | Provided | ||
| High Light: | heavy duty dc connectors,industrial electrical connectors |
||

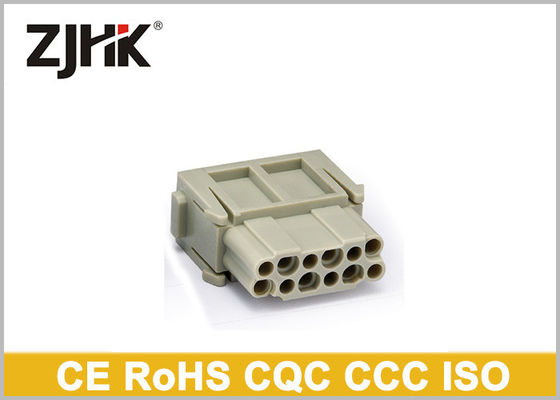

09140123001 12 Pin Han DD Modular Connector Heavy Duty Waterproof Connector
Description
HM series is a modular system consisting of modules and frames. Together they form a complete insert that integrates without difficulty into an HDC housing. The system allows you to choose combinations of different modules yourself and insert them in a frame - including power, signal, data, pneumatic, etc. With their universal and flexible design, modular inserts are the solution for many applications.
1) Custom design can be simply assemblied.
2) Optimum solutions can be reached.
3) Stock can be minimized.
Specification
| HMD-012-MC / HMD-012-FC | |
|
Numbers of contacts |
|
|
Electrical performance according to |
EN61984 |
| Rated current | 10A |
| Rated voltage | 250V |
| Rated impulse voltage | 4KV |
| Pollution degree | 3 |
| Rated voltage according to UL | 600V |
| Insulation resistance | ≥1010Ω |
| Material | Polycarbonate |
| Flammability according to (UL94) | V0 |
| Working temperature | -40℃±125℃ |
| Mechanical working life - mating cycles | ≥500 |
| Contacts | |
| Material | Copper alloy |
| Surface | Silver Plated |
| Contact resistance | ≤3mΩ |
| Crimp Terminal | |
| Wire gauge | 0.14-2.5mm2 |
| AWG | 26-14 |
Features
1) Compatible with Harting DD Modular connector
2) PC material supplied by SABIC LEXAN 3412 ECR with excellent machencial and electrical function.
3) Salt Spray Test withstand more than 96 hours.
4) CE, RoHS, CQC, CCC certified
5) 100% QC checked before selling
6) 7 years experiences specialied in heavy duty connector
7) Quality assurance in accordance with ISO9001:2008
8) Molding, Injection, Die casting, Punching, CNC Lathe Machining, Polish, Surface Treatment, Assembly, Packing are processed at our workshop
9) Output reach about 100,000 pieces each month.
Q: Why ZJHK price is competitive with good quality?
A: We have been manufacturing heavy dudty connector 7 years and know the market well. Only competitive price can open the market and only good quality can get more orders.
Q: Can we order many different models in a small qty?
A: Yes, we have plenty of stock. And we can delivery by DHL / TNT/ Fedex for small order. Small order is no problem.
Q: Can I ask for a complete set packing with plastic wrapping?
A: Yes, we can assembly all parts together and delivery in a set.
Q: Can I make order with my brand?
A: Yes, we can laser print your brand when the qty reach 100pcs.
Q: What is deivery time when I make payment?
A: For small order, we can finish delivery with 24 hours. For Bulk order, 5~7 days is enough.
Q: How to solve if I meet quality problem?
A: For small order, we will return the money to you, For bulk order, we will return order by sea. We will pay everything.
Q: Are you seeking agent for distributing your brand in market?
A: Yes, welcome to discuss more and visit our factory.
Q: Can I visit your factory?
A: Welcomed to visit our factory in Yueqing city, Zhejiang Province. It is our pleasure to show you around our production line and discuss face to face.
