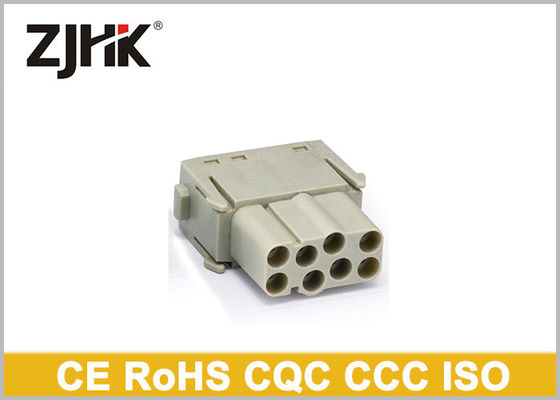

HEE Module 8 Pin Heavy Duty Electrical Connector 09140083001

HEE Module 8 Pin Heavy Duty Electrical Connector 09140083001

  • HEE Module 8 Pin    Heavy Duty Electrical Connector   09140083001
  • HEE Module 8 Pin    Heavy Duty Electrical Connector   09140083001
HEE Module 8 Pin    Heavy Duty Electrical Connector   09140083001
Product Details:
Place of Origin: China
Brand Name: ZJHK
Certification: CE, SGS, CQC, RoHS
Model Number: HMEE-008-MC / HMEE-008-FC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotible
Packaging Details: Standard Export Cartons
Delivery Time: 5 Days
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 100,000pcs per month
Contact Now
Detailed Product Description
Order Number: 09140083001 & 09140083101 Model Type:: Modular Connector HM Series
Material: Polycarbonate Sabic 3412 ECR Contact Type: Crimp
Current: 16A Voltage: 400V
OEM: Provided No Of Contacts: 8
High Light:

heavy duty dc connectors


heavy duty power connector

Han EE Module Connector 8 Pin Heavy Duty Connector 09140083001

HEE Module 8 Pin    Heavy Duty Electrical Connector   09140083001 0


Numbers of contacts 8
Electrical performance according to EN61 984
Rated current 16A
Rated voltage 400V
Rated impulse voltage 6KV
Pollution degree 3
Insulation resistance ≥1010Ω
Material Polycarbonate
Flammability according to (UL94) V0
Working temperature -40℃±125℃
Mechanical working life - mating cycles ≥500
Material Copper alloy
Surface Silver Plated
Contact resistance 1mΩ
Terminal Crimp
Wire gauge 0.14-4mm2
AWG 26-12


Company Information

1. 7-year experience in manufacturing heavy duty connector

2. All of connectors passed CE, CQC, ROHS, CCC, SGS certificate.

3. Manufacturing process is comply with ISO9001:2008.

4. We supply the good payment terms such as TT before shipment for our cutomers.

5. We can provide free samples for customer for test it.

6. Samples can be delivered within 24 hours.

7. The fast leading time is 3-5days (small qty), 7-20days (bulk order)

8. Factory info: Located in Wenzhou City, Zhejiang Province.

9. OEM Service and Customer Label Offered.

10. Above 10 production lines.

11. Above 70 employees, including 10 R&D Engineer, 5 QC Technicians and 50 workshop staff.

12. Hundreds of insert and housing models to satisfy every industrial application


Q 1. Are you a factory or trading company?

A. We are a factory.

Q 2. Where is your factory located? How can I visit there?
A. Our factory is located in Wenzhou City, Zhejiang Province, China. You can fly to Wenzhou airport directly. All our clients,from home or abroad, are warmly welcome to visit us!

Q 3. What's the payment term?
A. We accept TT, 30% deposit and 70% before shipment, Western Union, L/C at sight is ok

Q 4. Tell me the standard of package?
A. First, we use plastic bag for each part, then put bags into small box, and finally into export cartons. It is very strong.

Q 5. Would you accept to use our logo ?
A. When qty reaches 100pcs, it absolutely no problem to do OEM.

Q 6. How about the transport?

By International Express: DHL, TNT, FEDEX, UPS, Aramex, SF, Post, etc.

By Sea: We can offer FOB Ningbo, FOB Shanghai, FOB Shenzhen, etc

By Air: We can ship from Ningbo, Shanghai, Shenzhen, Hongkong, Beijing International Airport.

By Railway. We can ship by rail to Europe and Russia.

We also can send to your forwarder or other suppliers for co-shipment.

Q 7.What about your warranty?

A. 12 month and skilled technicians are ready to answer all after-sale queries.
