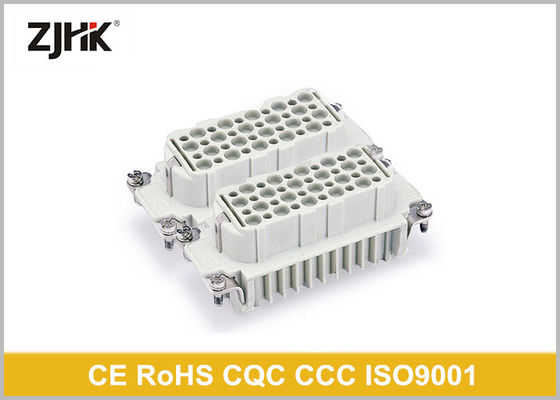

HD Series 80 Pin Connector Copper Alloy Industrial Multi Pin Connectors

HD Series 80 Pin Connector Copper Alloy Industrial Multi Pin Connectors

    • HD  Series 80 Pin Connector   Copper Alloy Industrial Multi Pin Connectors
    • HD  Series 80 Pin Connector   Copper Alloy Industrial Multi Pin Connectors
  • HD  Series 80 Pin Connector   Copper Alloy Industrial Multi Pin Connectors

    Product Details:

    Place of Origin: China
    Brand Name: ZJHK
    Certification: CE, RoHS, SGS, CQC
    Model Number: HD-080-MC / HD-080-FC

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotible
    Packaging Details: Standard Export Cartons
    Delivery Time: 5 Days
    Payment Terms: L/C, T/T, Western Union, Paypal
    Supply Ability: 100,000 pcs per month
    Contact Now
    Detailed Product Description
    Order Number: 09210403001 & 09210403101 Model Type:: Ultra High Density Connector HD Series
    Material: Polycarbonate Sabic 3412 ECR Wire Connection: Crimp
    Housing: H32B Series OEM: Provided
    Nos Of Contact: 80
    High Light:

    heavy duty cable connectors

    ,

    auto electrical connectors

    HD Series 80 Pin Power Terminal Male Female Electrical Heavy Duty Connector



    Description

    The wire connection of HDC inserts are designed as screw terminal, crimp terminal, tension clamp terminal and quick lock terminal for various wire range. The inserts are made from high-quality insulation materials, which provide a safe transmission of high voltages (upto 1000V) in a small space. Combined together with housing base, the HDC kit creates a reliable quick disconnection for different industrial and automation applications. Beside, by choosing from our modular connector HM series, it is possible to integrate signals, power, pneumatics and data communication into a single connector.To withstand harshest environmental factors like corrosion and impact, we provide durable and light weight housings. By providing hundrends of variations of construction, mounting, entry and size, our customer can match their specific application easily.



    HD  Series 80 Pin Connector   Copper Alloy Industrial Multi Pin Connectors 0

    Specification

    Inserts

    Number of Contacts : 80(2 x 40) + PE
    Electrical Data : 10 A 250 V
    Working Current : 10A
    Working Voltage : 250V
    Rated impulse Voltage : 4KV
    Pollution Degree : 3
    Insulation resistance : 1010
    Flammability UL94: VO
    Material : GLASS FIBRE REINFORCED PC

    Mating cycle : 500

    Contacts
    Material : Copper alloy
    Surface : Hard Silver plated
    Contact resistance : ≤3mΩ
    Screw terminal mm2 : 0.14 - 2.5mm2

    Hood/Housing
    Material : Die-Cast aluminum
    Surface : Powder Coated
    Locking Element : Zinc plated / Corrosion resistant stainless steel 304
    Temperature Range : -40C + 125 0C
    Degree of Protection: IP65



    About Us

    Certificate CE, RoHS, SGS, CQC
    Manufacturing Experiences 7 Years
    Workshop 10000mm2
    Workshop Staff 50
    Engineer 10
    Quality Control System ISO9001:2008
    Delivery on Time
    Stock Qty more than 2000pcs each model



    Our Service

    • Flexible design - we own mold center to design and develop new models upon customers specific requirement.
    • Design of Customers logo and name by laser printing is available.
    • Fast delivery - we have a large stock for various inserts and covers, upto 2000pcs each part.
    • Delivery will be finished within 2~7 days, delivery by DHL/FEDEX/TNT or by sea shipment are both ok.
    • Indivisual packing for each part or assemblied complete set packing are both available.
    • After sales service: 12 month for quality warranty.
    • Our parts can work well with parts from Harting brand ( same part number), which helps our customers select the correct part easily and avoid any mistake.
    • Test machines - enable us to quantee our quality 100%
    • ISO-9001:2008 approved
