| Place of Origin: | China |
| Brand Name: | ZJHK |
| Certification: | CE, RoHS, SGS, CQC |
| Model Number: | HD-064-MC / HD-064-MC |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotible |
| Packaging Details: | Standard Export Cartons |
| Delivery Time: | 5 Days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100,000 pcs per month |
| Order Number: | 09210643001 & 09210643101 | Model Type:: | High Density Connector HD Series |
|---|---|---|---|
| Material: | Polycarbonate Sabic 3412 ECR | Wire Connection: | Crimp |
| Housing: | H24B Series | OEM: | Provided |
| Nos Of Contact: | 64 | ||
| Highlight: | Heavy Duty 64 Pin Connector,Waterproof Industrial Rectangular Connectors |
||

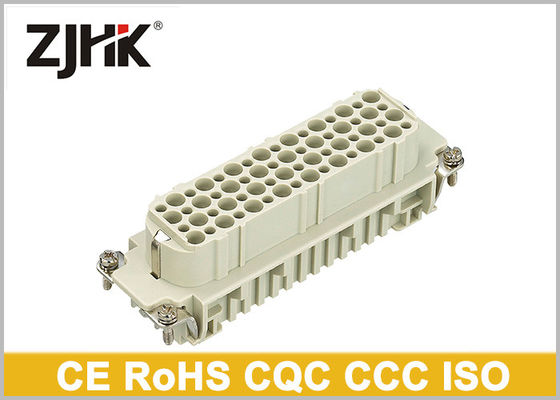

HD Series 64 Pin Heavy Duty Connector Waterproof Power Cable Connector
Quick Detail
1) Product Group: Insert
2) Gender: Male / Female
3) Brand: ZJHK
4) Number of Poles: 64
5) Connection Type: crimp
6) Product Group: Housing H24B
7) Cable Entry: Side / Top Entry
8) Locking Type: Single / Double Levers
9) Protectio Degree: IP65
10) Flammability: UL94 VO
11) Cable Size: PG21
Features
Compared to conventional industrial connector, Heavy duty connector are designed to provide an more efficient and easy handle connection for various industrial application
1. Space Savings – Integration of multiple connectors into a single unit allow for significant reduction in space requirement
2. Low-maintenance – Using a pre-assembled, pre-tested connector assembly can reduce hard wiring and installation time
3. Flexibility - Enabling the user to intergrate new products or new system more easily.
4. Future Proof – Enabling the user to update or change the components more easily in future.
Specification
| Numbers of contacts | 64P+E |
| Electrical performance according to | EN61984 |
| Rated current | 10A |
| Rated voltage ( conductor to ground) | 250V |
| Rated impulse voltage | 4KV |
| Pollution severity | 3 |
| or | 10A 230V / 400V 4KV 2 |
| Rated voltage according to UL CSA | 600V |
| Rated voltage for wrap terminal according to CSA | 2A 30V |
| Insulation resistance | ≥1010Ω |
| Material | Polycarbonate, with glassfibre |
| Flammability according to (UL94) | V0 |
| Limit temperature | -40℃±125℃ |
| Plugging cycles | ≥500 |
| Contacts: | |
| Material | Copper alloy |
| Surface | Silver Plated or Gold |
| Contact resistance | ≤3mΩ |
| Wire connection | Crimp |
| Wire gauge | 0.14-2.5mm2 |
| AWG | 26-14 |
FAQ:
1. Are you factory or trading company?
Yes,we are manufacturing in Wenzhou ,China and we are offering the most competitive price & after sale service.
2. Could I print my own logo on the items and packing material ?
Yes, logo can be laser printed per your design.
3. What terms of payment & price condition & do you accept & use?
Payment terms:T/T, LC, Paypal, Western union,etc.
Price conditions: FOB(Shanghai & Ningbo), EXW, C&F etc.
4. Can I pay you in USD or RMB?
USD, RMB, EURO, etc are ok.
5. How many days will it take to delivery the goods?
For small order, if we have stock then we can finish with 3 days. For big qty, we may need 7~15 days to finish.
