H10A Series Bulkhead Mounting Housings With Cover
  • name
  • name
  • name
  • name
  • name

H10A Series Bulkhead Mounting Housings With Cover

MOQ: 5
Price: 4.25
Standard Packaging: Standard Packaging
Delivery Period: 5-7 work days
Payment Method: T/T,D/P,L/C
Supply Capacity: 300 pcs within 7 Days
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
ZJHK
Certification
UL,CQC,CE,UKCA,SGS,EAC,RoHS
Model Number
H10A-BK-1L-CV
Document
H10A-BK-1L-CV.pdf
Type:
Housing
Housing Mounting:
Surface Mounting
Material:
Zinc Die-Cast
Color:
Grey
Locking Mechanism:
1 Lever
Lever Type:
Galvanized Iron
Material Of Seal:
NBR
Limiting Temperature:
-40...+125℃
Flammability Acc.to UL 94:
V0
Degree Of Protection:
IP65
Size:
10A
Highlight:

H10A bulkhead mounting housings

,

heavy duty connector with cover

,

H10A series waterproof housings

Product Description
H10A Series Bulkhead Mounting Housings With Cover
H10A Bulkhead Mounting Housings With Cover
H10A Series Bulkhead Mounting Housing with Cover

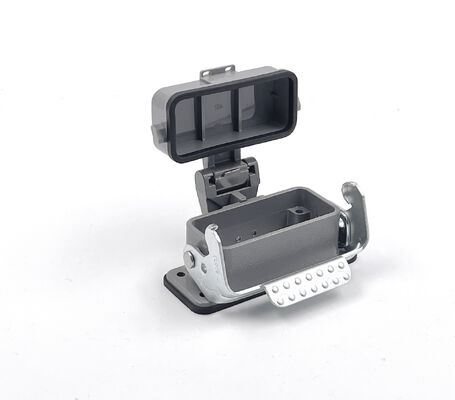

The H10A-BK-1L-CV is a bulkhead mounting in the ZJHK 10A series, designed for panel mounting and through-wall connections. Made of corrosion-resistant cast aluminum alloy, it provides IP65 protection and reliable performance in harsh environments. The rear cable entry simplifies wiring between internal and external equipment.

Technical Drawings

Technical drawing of 10A bulkhead mounting housing

The 10A bulkhead mounting housing is made of durable zinc die-cast material with a grey finish. It features a galvanized iron lever locking mechanism, NBR seal, and IP65 protection. With UL 94 V-0 flammability rating and a temperature range of -40°C to +125°C, it is suitable for demanding industrial applications.

Precision Manufacturing for Superior Connector Performance
Advanced automated injection molding machines in production facility
Our production facility features dozens of advanced automated injection molding machines with precision tolerances of ±0.01mm, ensuring consistent product accuracy and stability. The insert housing utilizes integrated die-casting technology to maintain structural integrity and dimensional precision. This manufacturing excellence guarantees reliable component fit and long-term durability, enabling our heavy-duty connectors to perform flawlessly in the most demanding industrial environments.

Company Profile

Zhejiang Haoke Electric Co., Ltd. manufacturing facility

Zhejiang Haoke Electric Co., Ltd. (HAOKE) has secured a front-runner position in the heavy-duty connector arena by integrating the entire value chain-from raw-material smelting to finished-module delivery. Our HA, HE and derivative families offer thousands of mating combinations that serve rail, wind, automation and other demanding segments. Backed by UL, EAC, UKCA, CE, CQC, RoHS, ISO9001 and CQC certifications, Haoke empowers customers to clear worldwide regulatory hurdles with a single part-number solution.

Trusted Partner for Global Industry Leaders
HAOKE trusted partner for global industry leadersWe serve leading global and local brands, including BMW, Hyundai, YUDO, CHNT, DELIXI, Huawei, and BYD, supporting reliable equipment operation worldwide. As a trusted alternative to established brands such as Harting, Weidmuller, and TE Connectivity, we offer dependable quality, competitive pricing, and responsive service.
