32Pins 16A Screw Slim Insert
  • name
  • name
  • name

32Pins 16A Screw Slim Insert

MOQ: 5pcs/30pcs/50pcs
Price: $7.47/$7/$6.53
Delivery Period: 5~7 work days
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
ZJHK
Certification
UL,COC,CE,UKCA,SGS,EAC,RoHS
Model Number
HA-032-M/HA-032-F
Document
HA-016-F (17-32).pdf
Current Rating:
16A
Durability:
500 Cycles
Operatingtemperaturerange:
-40°C To +125°C
Protectionrating:
IP65
Model Type:
Slim Connector HA Series
Connector Type:
Standard Connector
Gender:
Male/Female
Productname:
Heavy Duty Connector
Highlight:

32Pins heavy duty connector

,

16A screw slim insert

,

32Pins screw insert connector

Product Description
32Pins 16A Screw Slim Insert

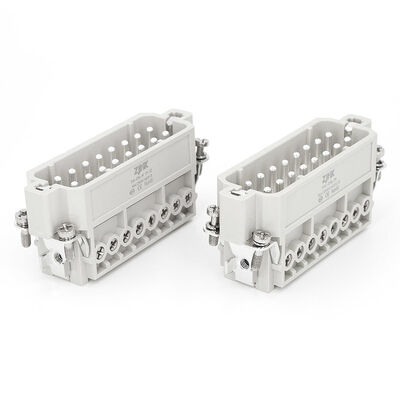

32Pins 16A Screw Slim Insert front view 32Pins 16A Screw Slim Insert side view The HA-032 series inserts feature a compact structure with 32 densely arranged wires and side-positioned grounding terminals. The electrical transmission system comprises 32 silver-plated pins, organized as two independent 16-pin connectors with distinct numbering for easy identification. Available in both universal and unmarked versions for broad compatibility with mainstream connectors, this design maximizes space utilization while ensuring reliable equipment performance.
Technical Specifications
Specifications Values
Standards DIN EN 60 664/DIN EN 61 984
Number of contacts 32
Rated Current 16A
Rated Voltage 250V
Rated Impulse Voltage 4kV
Pollution Degree 3
Pollution Degree 2 Also 16A 230/400V 4kV 2
Rated Voltage According to UL CSA 600V
Limiting Temperature -40℃...+125℃
Matching Housings 32A Series
Product Drawings
HA-016-M(17~32)
HA-016-M product drawing
HA-016-F(17-32)
HA-016-F product drawing
Product Overview
HA-032 series product overview
The HA-032 series inserts consist of two 16-pin chips with distinct identification numbers for clear differentiation. Plastic components are manufactured from imported polycarbonate (PC) material, providing excellent resistance to harsh environmental conditions.
Professional Testing Equipment
DC Temperature Rise Test
DC temperature rise testing equipment
This analysis assesses conductor operating temperatures to establish maximum permissible current limits. Elevated current levels generate resistive heating, causing temperature increases and reduced current-carrying capacity. The evaluation incorporates conductor geometry, ambient conditions, and thermal properties to establish safe operating limits and prevent overheating in electrical systems.
Application Scenarios
Transportation
Heavy duty connectors in rail transit applications
Heavy duty connectors employed in rail transit integrate power supply, control signals, data communication, and braking functions into modular units, offering efficient plug-and-play solutions. They ensure reliable operation in critical traction and signaling systems, even under demanding environmental conditions. The design simplifies installation, enhances durability, and complies with rigorous industry standards, delivering full functionality through compact and robust interfaces.
Company Introduction
Certified Heavy-Duty Connectivity Solutions
Zhejiang Haoke Electric Company overview
Zhejiang Haoke Electric Co., Ltd. is a technology-driven manufacturer specializing in heavy-duty electrical connectors. Our integrated capabilities span R&D, fully automated production lines, and worldwide certification, ensuring every product meets the highest standards.
Global Expertise & Product Portfolio
Haoke Electric manufacturing facilities and product range
Led by a team of ten-plus certified engineers and supported by dozens of intelligent manufacturing systems, we deliver thousands of configurations across the HA, HE, HEE, HD, HDD, and HSB series. All products are UL-, CQC-, CE-, UKCA-, and EAC-certified, providing highly reliable, stable, and customizable solutions to leading international enterprises.
Authorized Certification
After years of efforts, we have accumulated a wide variety of certificates
Quality certification 1 Quality certification 2 Quality certification 3
Frequently Asked Questions
Do you produce the goods yourselves, or do you source them from suppliers?
We have our own factory in Wenzhou City, Zhejiang Province, China.
How long is your warranty time?
12 months. Any quality problems are resolved with replacements in your next order free of charge.
What's your advantage compared with Harting, ILME, TE?
Our HDC connectors can perfectly replace Harting, ILME, and TE (SIBAS) products. Most clients who previously used these brands have chosen us after testing. Additionally, our pricing is 40-50% lower than Harting.
If I want some regular products, do you have any stock in the warehouse?
Most models are in stock, and order quantity is unlimited. We also welcome small orders.
