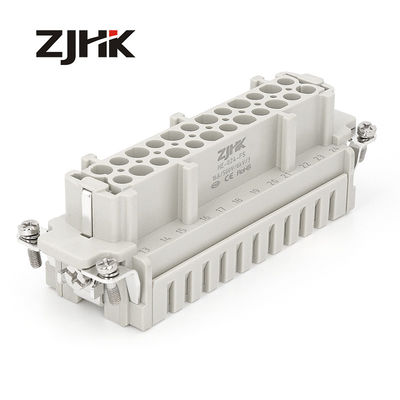

09330242616 24P Electrical Heavy Duty Connector 16A With Female Insert

Products

Heavy Duty Rectangular Connector

Heavy Duty Multi Pin Connector

Heavy Duty Electrical Connector

09330242616 24P Electrical Heavy Duty Connector 16A With Female Insert

MOQ:	5
Price:	Negotiable
Standard Packaging:	Standard Export Cartons
Delivery Period:	7 Days
Payment Method:	L/C, T/T, Western Union, Paypal
Supply Capacity:	100,000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Certification

CE, RoHS, SGS, CQC,

Model Number

HE-024-MS/FS

Order Number:

09330242616/09330242716

Model Type::

HE Series

Material:

Polycarbonate Sabic 3412 ECR

Wire Connection:

Cage-clamp Termination

Housing:

H24B Series

Nos Of Contact:

24+PE

Highlight:

Electrical Heavy Duty Connector 16A

09330242616 Heavy Duty Connector

24P Electrical Heavy Duty Connector

Product Description

16A 24 PIN heavy duty cage clamp inserts

The 09330242616&09330162716 is a 24-contact rectangular HE S Male &Female Cage-clamp Terminal Insert, 24B size, 0.14 to 2.5mm² wire cross section area with cage-clamp terminals. Made of polycarbonate, RAL 7032 (light grey) color insert.

500 Mating cycles
UL94V-0 Flammability rating

Applications

Industrial

Type:	Male&Female Insert
Contact Connection Type:	Cage-Clamp
Positions:	24P
Rating - Current:	16A
Rating - Voltage:	500V
Mounting Code-Series Size:	24B
Wire Range:	26-14 AWG
Number of Contacts:	24 + Ground
Position Marking:	1-24
Material, Insert:	Polycarbonate
Termination Method:	Cage-Clamp Terminal
Temperature Rating:	-40 to 125 Degree C (-40 to 257 Degree F)
Material Rating:	UL 94 V-0
Manufacturer Model:	HE
Stripping length	7-9mm
Surface of contacts	Silver plated

Details of inserts (male&female)

09330242616 24P Electrical Heavy Duty Connector 16A With Female Insert 0

09330242616 24P Electrical Heavy Duty Connector 16A With Female Insert 1

09330242616 24P Electrical Heavy Duty Connector 16A With Female Insert 2

09330242616 24P Electrical Heavy Duty Connector 16A With Female Insert 3

09330242616 24P Electrical Heavy Duty Connector 16A With Female Insert 4

09330242616 24P Electrical Heavy Duty Connector 16A With Female Insert 5

09330242616 24P Electrical Heavy Duty Connector 16A With Female Insert 6

FAQ:

what’s your advantage compare with Harting,ILME,TE(SIBAS)?

Our HDC can replace Harting,ILME,TE(SIBAS)perfectly,most of clients who use those brand before,After the test ,they choose us.Also our price is lower than Harting 40-50%.

Is your company fully automated?

Yes,Most of our production is fully automated.

Q:Your rectangular connector seems perfect but what's the difference between you and other suppliers?Because I find some cheaper price from others

A: Our HDC special for Industrial 4.0 solution are high quality customized.We use the imported material SABIC 3412 for heavy duty connector inserts .Not all the HDC Material are the same !!

4.Q:I were use Harting brand before,can i tell you their order number to help me match ?

A:Of course you can help you.Actually , in order to facilitate the use of harting's customers, we have set the order number to be the same as HARTING, so that customers can match and replace.
