| Place of Origin: | China |
| Brand Name: | ZJHK |
| Certification: | CE, RoHS, SGS, CQC |
| Model Number: | H10A-SF-1L |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Cartons |
| Delivery Time: | 5 Days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100,000 pcs per month |
| Threade Size: | M20/2M20/M25/PG16/2PG16/PG21 | Model:: | H10A |
|---|---|---|---|
| Material: | Die Cast Aluminium | Colour: | Grey |
| OEM: | Provided | Protection: | IP65 |
| Type: | Surface Mount Housing, With Protective Cover | Material Of Protective Cover: | Plastice And Metal |
| High Light: | Aluminium Surface Mount Housing IP65,M20 Thread Surface Mount Housing,NBR Sealing Surface Mount Housing |
||

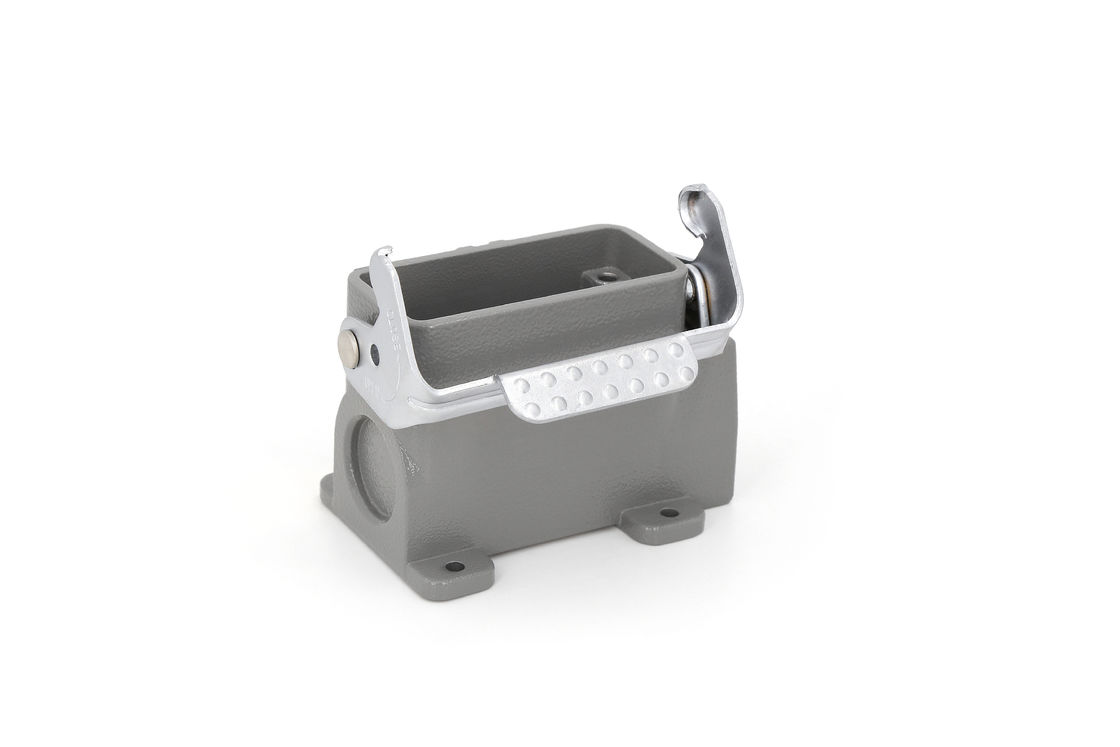

ZJHK Industrial Connectors Housing and Hood are suited for the harshest requirements in industrial environments. It an effectively protect the ZJHK HA and HD series rectanguler inserts and prevent dust and water from entering.
They are used in all applications requiring a safe and removable electrical connection. The field of application for ZJHK connectors is in protected electrical areas; for example in control cabinets to outdoor applications.
Can effectively protect the ZJHK rectanguler incsets and prevent dust and water from entering.
Housing size and data
| Model | H10A Housing |
| Type | Surface mountiing housings |
| Colour | Gray |
| Interlocking way | Single lever |
| Housing material | Aluminium die-cast,corrosion resistant |
| Lever material | Galvanized iron |
| Sealing material | NBR |
| Operating temperature | -40℃～+125℃ |
| Degree of protection | IP65 |
| Flammability Acc. to UL 94 | V0 |
| Thread | Type | Part number |
| M20 | H10A-SF-1L-M20 | 19200100250 |
| 2M20 | H10A-SF-1L-2M20 | 19200100290 |
| M25 | H10A-SF-1L-M25 | 19200100251 |
| PG16 | H10A-SF-1L-PG16 | 09200100251 |
| 2PG16 | H10A-SF-1L-2PG16 | 09200100291 |
| PG21 | HA-SF-1LPG21 | 09200100252 |
| Thread | Type | Part number |
| M20 | H10A-SF-1L-CV-M20 | 19200100294 |
| 2M20 | H10A-SF-1L-CV-2M20 | 19200100295 |
| M25 | H10A-SF-1L-CV-M25 | 19200100296 |
| PG16 | H10A-SF-1L-CV-PG16 | 09200100221 |
| 2PG16 | H10A-SF-1L-CV-2PG16 | 09200100296 |
| PG21 | HA-SF-1L-CV-PG21 | 09200100231 |
