2 Signal Contacts Combined Industrial Inserts 4 Pin HK-004/2

Products

Heavy Duty Rectangular Connector

Heavy Duty Multi Pin Connector

Heavy Duty Electrical Connector

2 Signal Contacts Combined Industrial Inserts 4 Pin HK-004/2

MOQ:	1
Price:	negotible
Standard Packaging:	Standard Export Cartons
Delivery Period:	within 10 days after payment
Supply Capacity:	10,000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Certification

CE, SGS, CQC, RoHS

Model Number

HK 4/2 (Male/Female)

Metrial:

Polycarbonate Sabic 3412 ECR

Part Number:

09380062601 & 09380062701

Connector Type::

Crimp Inserts

Wire Connection:

Crimp Pin

Housing Material:

Die Cast Aluminium Alloy

Nos Of Contacts:

6 / 2+PE

Highlight:

2 Signal Contacts Combined Industrial Inserts

HK-004/2 Combined Industrial Inserts

4 Pin Industrial Inserts

Product Description

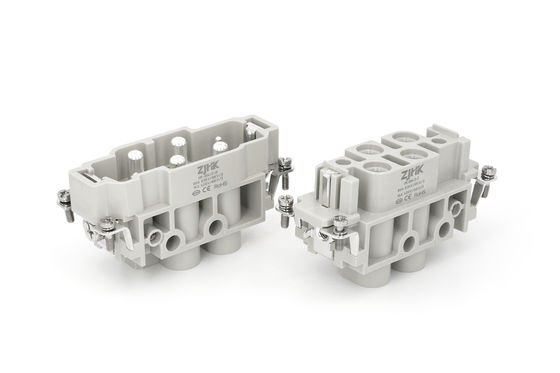

4 Pin add 2 signal contacts Combined industrial inserts

Quick referrence:

Inserts, Screw termination, Male/Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: ‌80 A, Size: 16 B, Contacts: 4, + 2 additional signal contacts, Conductor cross-section: 1.5 ... 16 mm², 0.5 ... 2.5 mm² Signal, Copper alloy, Silver plated

Category	Inserts
Series	ZJHK-HK COMBINATION
Identification	HK 4/2 (Male/Female)
Termination method	Screw termination
Gender	Male/Female
Size	16B
Number of contacts	4
Additional contacts	+ 2 additional signal contacts
PE contact	Yes
Conductor cross-section(Power)	1.5 ... 16 mm²
Conductor cross-section(Signal)	0.5 ... 2.5 mm²
Rated current(Power)	80Amp
Rated voltage(Power)	830 V
Rated impulse voltage(Power)	8 kV
Rated current (signal)	16 A
Rated voltage (signal)	400 V
Rated impulse voltage (signal)	6 kV
Pollution degree	3
Insulation resistance	>1010 Ω
Contact resistance	≤ 0.3 mΩ
Contact resistance, signal area	≤ 1 mΩ
Stripping length(Power)	14 mm
Stripping length(signal)	7.5 mm Signal
Limiting temperature	-40 ... +125 °C
Mating cycles	≥ 500

2 Signal Contacts Combined Industrial Inserts 4 Pin HK-004/2 0

ZJHK-Com® Signal & Power (Crimp and Screw)

These ZJHK-Com® inserts are available in current ratings from 10A to 100A. They are intended for use typically with hoods and housings;

2 Signal Contacts Combined Industrial Inserts 4 Pin HK-004/2 1

Both the female and male inserts are finger safe and can be used in many diverse applications.

The combination of very compact size and the finger protection of the female and male contacts make the

new insert a viable alternative to circular IEC EN60309 connectors for many applications.

2 Signal Contacts Combined Industrial Inserts 4 Pin HK-004/2 2

2 Signal Contacts Combined Industrial Inserts 4 Pin HK-004/2 3
