16A 6 Pin Heavy Duty Connector Cage Clamp Inserts 500V 09330062616 09330062716

Product Details:

Place of Origin:	China
Brand Name:	ZJHK
Certification:	CE, RoHS, SGS, CQC,
Model Number:	HE-006-MS&FS

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Standard Export Cartons
Delivery Time:	7 Days
Payment Terms:	L/C, T/T, Western Union, Paypal
Supply Ability:	100,000 pcs per month

Contact Now

Detailed Product Description

Order Number:	09330062616 & 09330062716	Model Type::	HE Series
Material:	Polycarbonate Sabic 3412 ECR	Wire Connection:	Cage-clamp Termination
Housing:	H6B Series	Nos Of Contact:	6
Highlight:	Cage Clamp Inserts Heavy Duty Connector , 09330062616 Heavy Duty Connector , 16A Heavy Duty Connector

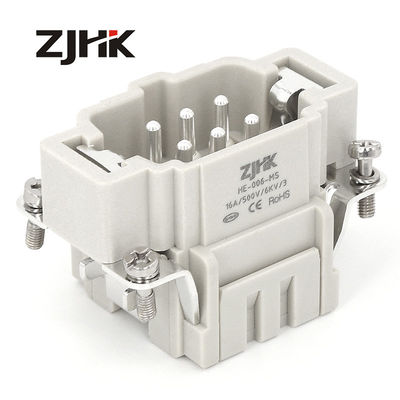

16A 6 PIN heavy duty cage clamp inserts

Replace Harting Han 6 ES-M&F insert

Inserts, Cage-clamp termination, Male, Polycarbonate, RAL 7032 (pebble grey), Rated current: 16A, Size: 6 B, Contacts: 6, Conductor cross-section: 0.14 ... 2.5mm², Copper alloy, Silver plated

Technical data

Identification
Category	Inserts
Series	HE
Version
Termination method	Cage-clamp termination
Gender	Male & Female
Size	6B
Pin	6 Pins
PE contact	yes
Conductor cross-section	0.14 ... 2.5 mm²
Conductor cross-section	AWG 26 ... AWG 14
Rated current	16A
Rated voltage	500 V
Limiting temperature	-40 ... +125 °C
Mating cycles	≥ 500
Material (insert)	Polycarbonate(SABIC)
Material (contacts)	Copper alloy
Surface (contacts)	Silver plated
RoHS	compliant with exemption

Details of inserts (Male and Female)

16A 6 Pin Heavy Duty Connector Cage Clamp Inserts 500V 09330062616 09330062716 0

16A 6 Pin Heavy Duty Connector Cage Clamp Inserts 500V 09330062616 09330062716 1

Cage Clamp Contact Inserts

From Haoke, this series of robust cage clamp contact inserts are suitable for wire termination of 26-14awg (0.14 – 2.5mm²) and require no tooling. These cage clamp contact inserts are ideal for when quick and simplistic termination is required in heavy duty power applications. Available in 6 to 24 poles, they have a current rating of 16A and a working voltage of 500V.

Approvals

UL,CE,Rohs 3.0

16A 6 Pin Heavy Duty Connector Cage Clamp Inserts 500V 09330062616 09330062716 2

HE 16A Cage Clamp Series

These HES inserts are rated at 16A. They are intended for use with hoods and housings contained within ranges 5, 6, 7, & 8. These hood and housing ranges are associated to a specific Haoke 'Size' number identifier. See the 'compatibility' table for details of this relationship, and stock numbers of hoods and housings that are typical of each range.

Warning

These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of a wrong connection.

16A 6 Pin Heavy Duty Connector Cage Clamp Inserts 500V 09330062616 09330062716 3

Any questions please feel free to contact us, 7*24 hours for you !!!
