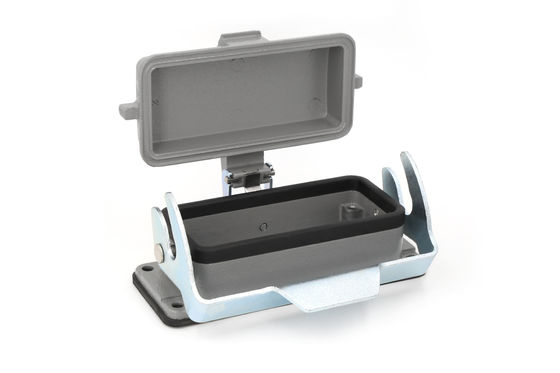

H10B Heavy Duty Connector With Bulkhead Housing Locking Lever

MOQ:	1
Price:	negotible
Standard Packaging:	Standard Export Cartons
Delivery Period:	5 Days
Payment Method:	L/C, T/T, Western Union, Paypal
Supply Capacity:	100,000 / Month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Certification

CE, RoHS, SGS, CQC

Model Number

H10B-BK-1L/CV/MCV

Housing Type::

Housing

Housing Model:

H10B Series Housing

Housing Material:

Die Cast Aluminium Alloy

Package:

Indivisual Packing In Box

Provided

Highlight:

H10B Heavy Duty Connector

Bulkhead Housing Heavy Duty Connector

Locking Lever Heavy Duty Connector

Product Description

H10B bulkhead housing 1 and 2 locking lever

Technical data

Category	Hoods/Housings
Housing version	Bulkhead Mounting
Type	Low construction
Material	Zinc Die-Cast
Colour (hood/housing)	(dust grey)
Locking Mechanism	1 lever / 2 Levers
Material (hood/housing)	Aluminium die-cast
- Lever Type	StaIless steel/ Metal galvanized/nickel plating
- Material of seal	NBR
Working Temperature	-40...125°C
Flammability Acc. to UL 94	V0
Protection Level	IP65
Size	10B
Thread	NO
RoHS	compliant
Packaging size	1
Country of origin	China

Data sheet

Bulkhead mounting single lever :

Order guide:

Thread	Type	Part number
---	H10B-BK-1L	09300100305
---	H10B-BK-1L-CV ( Plastic cover )	09300100303
---	H10B-BK-1L-MCV ( Metal cover )	09300100318

Bulkhead mounting 2 levers :

Order guide:

Thread	Type	Part number
---	H10B-BK-2L	09300100301

Complete kit reference

H10B Heavy Duty Connector With Bulkhead Housing Locking Lever 4

Competitve Price: with the help of advanced machines and assembly lines, we can redue our cost greatly and offer an competitive price to our customer and help them enter market.

Strong Package: plastic bag + inner box + big cartons effectively protect the goods from damage during international transportation.

Fast Delivery: Plenty of stock enable us to provide a delivery within 3 days for small qty, 7~15 days for bulk order

Quick response: all of inquiry and questions will be reponsed with 24 hours.

FAQ:

Q: Can we use your HDC Male part match Harting Female part ? Or Female part match Male part.

A: Of curse we can match harting perfectly.

Q: what’s your advantage compare with Harting,ILME,TE(SIBAS)?

A: Our HDC can replace Harting,ILME,TE(SIBAS)perfectly,most of clients who use those brand before,After the test ,they choose us.Also our price is lower than Harting 40-50%.

Q: Dose this insert can fit with my frame?

A:Our module insert can fit with Harting,ILME,Weidmuller,TE and other brand.
