| Place of Origin: | China |
| Brand Name: | ZJHK |
| Certification: | CE, SGS, CQC, RoHS |
| Model Number: | HK-004/0-M / HK-004/0-F |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotible |
| Packaging Details: | Standard Export Cartons |
| Delivery Time: | within 10 days after payment |
| Supply Ability: | 10,000 pcs per month |
| Metrial: | Polycarbonate Sabic 3412 ECR | Part Number: | 09380062611&09380062711 |
|---|---|---|---|
| Connector Type:: | Combination Inserts | Wire Connection: | Screw |
| Housing Material: | Die Cast Aluminium Alloy | Nos Of Contacts: | 6 + PE |
| Highlight: | 830V Combined Industrial Inserts,4 Pin Combined Industrial Inserts,2 Single Contacts Industrial Inserts |
||
Brand: ZJHK Electrical
Product Code: HK-004/0-M / HK-004/0-F
Availability: In Stock
| Inserts name | HK-004/0-M / HK-004/0-F |
| Series | HK Combination Insert |

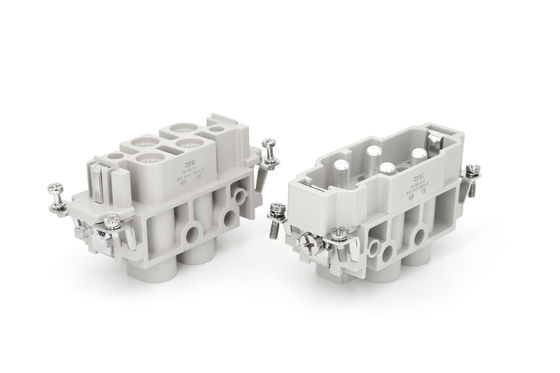

| Descriptions | Combination Connector Insert, 4(Power) + 0(Signal) + PE, Power: 80A 830V, Signal:--, Female, Screw Terminal |
| Gender | Male and Female |
| Mechanical Working Life) | >= 500 |
| Shell Size | 16B |
| Working Temperature Range | -40⁰C … +125⁰C |
| Termination Method | Screw Terminal |
| Number of Contacts | 4 (Power) + 0 (Signal) + PE |
| Power Contact Rated Current | 80A |
| Power Contact Rated Voltage Acc. to EN61 984 | 830 |
| Power Contact Rated Voltage Acc. to UL/CSA | 600V |
| Rated Impulse Voltage | 8KV |
| Power Contact Resistance | <= 0.3mΩ |
| Insulation Resistance | >=1010Ω |
| Pollution Degree | Ⅲ |
| Power Wire Cross Section Range | 1.5mm2 – 16mm2 |
| Power Wire Gauge | 16 - 6 AWG |
| Stripping Length | See Contact Specs |
| Material of Inserts | Polycarbonate |
| Contacts | Hard-Silver Plated Copper Alloy |
| Flammability Acc. to UL 94 | V0 |
The new connector is designed of Combination inserts for use in industrial automation and machine building applications where sensor signals need to be terminated alongside power supply conductors and routed via integral signal contacts for connection in a system control unit.
It has been possible to house four power contacts plus a separate PE (protective earth) contact by making maximum use of the available space and by using space-saving axial screw terminations.
These power contacts and the PE contact can be used for AWG of up to 16-6 , allowing current-carrying capacities of up to 80 A to be achieved.
Size Drawing
Both the female and male inserts are finger safe and can be used in many diverse applications. The combination of very compact size and the finger protection of the female and male contacts make the new insert a viable alternative to circular IEC EN60309 connectors for many applications.
