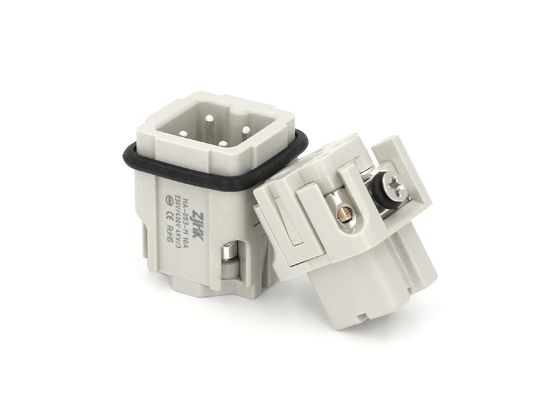

4pin 5 Pin 10A Screw Heavy Duty Electrical Connectors
  • name
  • name

4pin 5 Pin 10A Screw Heavy Duty Electrical Connectors

MOQ: 1
Price: Negotiable
Standard Packaging: Standard Export Cartons
Delivery Period: 5 Days
Payment Method: L/C, T/T, Western Union, Paypal
Supply Capacity: 100,000 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
ZJHK
Certification
CE, SGS, CQC, RoHS
Model Number
HA-003-M&HA-003-F/HA-004-M&HA-004-F
Order Number:
09200042611 & 09200042711
Model Type::
Slim Connector HA Series
Material:
Polycarbonate Sabic 3412 ECR
Wire Connection:
Screw
Housing:
H3A Series
OEM:
Provided
Nos Of Contact:
3 And 4
AWF:
18-14
Highlight:

10A Screw Heavy Duty Electrical Connectors

,

09200042611 Heavy Duty Electrical Connectors

,

5 Pin Heavy Duty Electrical Connectors

Product Description

4pin 10A Screw Heavy Duty Termination Wire Connector HA 5 Pin Connector

Description





Inserts, Screw termination, Male & Female, Polycarbonate, RAL 7032 (pebble grey), Rated current: 10A

Size: 3 A,



Contacts: 3, Conductor cross-section: 1.0 ... 2.5mm² ,



Copper alloy, Silver plated





Heavy duty connector makes an effective electrical and mechnical connection for various industrial application. Compared to traditional industrial connectors, the heavy duty connectors provide a IP65 protection against harsh environment and save 30~50% labour cost in installation and mantaince. Therefore, it is widely used in mechinery, electrical control, railway transportation, automation, robotics, wind energy and engery distribution.





HA Series



Technical Characteristics

Specifications

DIN EN 60664


DIN EN 61984

Inserts



Number Of Contacts

3,4 (16x2)+PE

HA-003/004



Gender

 Male&Female

Rated Current

10A

Pollution Degree

Ⅲ

Or

10A 250V 4KV 3

HA-010/016/032



Gender

 Male&Female

Rated Current

16A

Rated Voltage

250V

Rated Impulse Voltage

4KV

Pollution Degree 2 Also

16A 230/400V 4KV 2

Rated Voltage Acc.to UL Csa

600V

Insulation Resistance

≥1010Ω

Material

Polycarbonate

Limiting Temperature

-40℃...+125℃

Mechanical Working Life-mating Cycles

≥500

Material of contacts

Copper Alloy

Surface

Hard-silver Plated

Contact Resistance

≤1mΩ

Screw Terminal



Wire Gauge

1.0-2.5mm²

AWG

18-14

Tightening Torque

0.25Nm(HA-003/004) or


0.5Nm(HA-010/016/032)





Pictures of HA Male inserts

HA-003/004 230V/400V 10A (Screw terminals)

4pin 5 Pin 10A Screw Heavy Duty Electrical Connectors 0

4pin 5 Pin 10A Screw Heavy Duty Electrical Connectors 14pin 5 Pin 10A Screw Heavy Duty Electrical Connectors 2

HA-003 230V 10A (Cage-Clamp terminals)

4pin 5 Pin 10A Screw Heavy Duty Electrical Connectors 34pin 5 Pin 10A Screw Heavy Duty Electrical Connectors 4



Current Carrying Capacity

The current carrying is limited by maximum temperature of materials for inserts and contacts including terminals.

Measuring and testing techniques according to DIN EN 60512-5





4pin 5 Pin 10A Screw Heavy Duty Electrical Connectors 5





Design Drawing:

4pin 5 Pin 10A Screw Heavy Duty Electrical Connectors 6

4pin 5 Pin 10A Screw Heavy Duty Electrical Connectors 7









Ordering Number for H3A Hood&Housing



 Hood - Side Entry

 H3A-SE-2B-M20

 19200031640

 Hood - Side Entry

 H3A-SE-2B-PG11

 09200031640

 Hood - Top Entry

 H3A-TE-2B-M20

 19200031440

 Hood - Top Entry

 H3A-TE-2B-PG11

 09200031440

 Hood - Top Entry

 H3A-TE-2B-PG13.5

 09200031441

 Housing - Bulkhead Mounting

 H3A-BK-1L

 09200030301

 Housing - Bulkhead Mounting with metal cover

 H3A-BK-1L-MCV/M

 09200030305

 Housing - Bulkhead Mounting with metal cover

 H3A-BK-1L-MCV/F

 09200030306

 Housing - Bulkhead Mounting with side entry

 H3A-BK-1L-SE

 09200030801

 Housing - Surface Mounting

 H3A-SF-1L-M20

 19200031250

 Housing - Surface Mounting

 H3A-SF-1L-PG11

 09200031250

 Housing - Surface Mounting

 H3A-SF-1L-PG13.5

 09200031251

 Housing - Surface Mounting

 H3A.BC-SF-1L-M20

 19200031252

 Housing - Surface Mounting

 H3A.BC-SF-1L-PG11

 09200031252

 Housing - Surface Mounting

 H3A.BC-SF-1L-PG13.5

 09200031253

 Housing - Cable to Cable

 H3A-CCT-1L-M20

 19200031750

 Housing - Cable to Cable

 H3A-CCT-1L-PG11

 09200031750

 Housing - Cable to Cable

 H3A-CCT-1L-PG13.5

 09200031751







4pin 5 Pin 10A Screw Heavy Duty Electrical Connectors 8
