Replace Han E 32 PIN crimp industrial connector crimp terminal 09330162612 09330162712
  • name
  • name
  • name
  • name
  • name

Replace Han E 32 PIN crimp industrial connector crimp terminal 09330162612 09330162712

MOQ: 5
Price: Negotiable
Standard Packaging: Standard Export Cartons
Delivery Period: 7 Days
Payment Method: L/C, T/T, Western Union, Paypal
Supply Capacity: 100,000 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
ZJHK
Certification
CE, RoHS, SGS, CQC,
Model Number
HE-032-MC&FC
Order Num09320103101ber:
09330162612&09330162712
Model Type::
Standard Connector HEE Series
Material:
Polycarbonate Sabic 3412 ECR
Wire Connection:
CRIMP
Housing:
H32B Series
Nos Of Contact:
32 PIN
Highlight:

industrial connector crimp terminal

,

32 PIN crimp industrial connector

,

09330162612 Heavy Duty Connector

Product Description

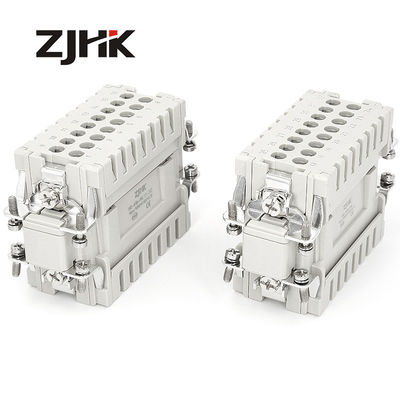

Haoke HE Standard Insert, 32(16+16) + PE, 16A, Male&Female , Crimp Terminal ,

Replace Han E 32 PIN crimp industrial connector crimp terminal 09330162612 09330162712 0

Replace Han E 32 PIN crimp industrial connector



Please Order Crimp Contacts Separately



Order number HE-032-MC&HE-032-FC
Type HE standard inserts
Certifications CE/ CQC/ ISO9001/ SGS /ROHS /UL
Descriptions Heavy Duty Power Connector Insert, 32 Poles + PE, 16 A, Crimp Terminal
Gender Male and Female
Mating Cycle (Mechanical Working Life) greater or equal to 500 times Plug and unplug
Matching housing and hoods H32B size housing and hood
Working Temperature Range -40⁰C … +125⁰C
Termination Method Crimp Terminal, Order Crimp Contacts Separately
Number of Contacts 32(16+16) + PE,(1-16,17-32)
Rated Current 16A
Rated Voltage Acc. to EN61 984 500 voltage
Rated Impulse Voltage 600 voltage
Contact Resistance <= 3mΩ
Insulation Resistance >=1010Ω

Wire Cross Section Range

Wire Gauge

0.14mm2 – 4.0mm2

26 - 12 AWG
Contacts Plating Standard: Hard-Silver Plated Copper Alloy, Optional Hard-Gold Plated Copper Alloy



More details of inserts

Replace Han E 32 PIN crimp industrial connector crimp terminal 09330162612 09330162712 1Replace Han E 32 PIN crimp industrial connector crimp terminal 09330162612 09330162712 2

Related Products

Replace Han E 32 PIN crimp industrial connector crimp terminal 09330162612 09330162712 3

Acceptable wire cross section area:

  • 0.37mm2
  • 0.5mm2
  • 0.75mm2
  • 1.0mm2
  • 1.5mm2
  • 2.5mm2
  • 3.0mm2
  • 4.0mm2

About us

Haoke Electrical is one of world biggest manufacturers of heavy duty connectors , with over 4300 SKUs.

The products include HA Slim Connector, HE Standard Connector, HEE High Density Connector, HD&HDD Ultra-High Density Connector, HSB High Current Connector, HK Combination Connector, HM Flexible Modular Connector and HQ Compact Connector.

Replace Han E 32 PIN crimp industrial connector crimp terminal 09330162612 09330162712 4





Haoke Products are widely used in industrial automation, hot runner molds, transportation,machinery-metalworking,machinery plastic, equipment manufacturing, robotics,industrial system connections, wind energy,Energy distribution and storage ,Medical,information and control



Replace Han E 32 PIN crimp industrial connector crimp terminal 09330162612 09330162712 5Replace Han E 32 PIN crimp industrial connector crimp terminal 09330162612 09330162712 6



Replace Han E 32 PIN crimp industrial connector crimp terminal 09330162612 09330162712 7



FAQ:





1. Q: If I'm interested in your 32pin crimp heavy duty connector when I can receive your quotation and detail information after send the enquiry?



A:All your inquiry will be replied in 24 hours.



2. Q:Your rectangular connector seems perfect but what's the difference between you and other suppliers?Because I find some cheaper price from others



A: Our HDC special for Industrial 4.0 solution are high quality customized.We use the imported material SABIC 3412 for heavy duty connector inserts .Not all the HDC Material are the same !!



3. Q:I were use Harting brand before,can i tell you their order number to help me match ?



A:Of course you can help you.Actually , in order to facilitate the use of harting's customers, we have set the order number to be the same as HARTING, so that customers can match and replace.
