Same As Phoenix Quick Lock Terminal 16pin Contacts Female Insert Heavy Duty Plug
  • name
  • name
  • name

Same As Phoenix Quick Lock Terminal 16pin Contacts Female Insert Heavy Duty Plug

MOQ: 5
Price: Negotiable
Standard Packaging: Standard Export Cartons
Delivery Period: 7 Days
Payment Method: L/C, T/T, Western Union, Paypal
Supply Capacity: 100,000 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
ZJHK
Certification
CE, RoHS, SGS, CQC,
Model Number
HE-016-FZ
Order Number:
093300162901
Model Type::
Standard Connector HE Series
Material:
Polycarbonate Sabic 3412 ECR
Wire Connection:
Quick Lock
Housing:
H16B Series
Nos Of Contact:
16
Highlight:

16pin Contacts Heavy Duty Connector

,

16B size Heavy Duty Connector

Product Description

New connection way


Inserts, Quck Lock  termination, male, Polycarbonate, RAL 7032 (pebble grey), Rated current: 16A,  Contacts: 10, Conductor cross-section: 0.14 ... 2.5mm², Copper alloy,
Silver plated

Auto Industrial 4.0 solution
Fast contact way ,just need a screw to do this,fast work.




Technical data

Type
Termination methodQuck Lock  insert
GenderFemale
Size16B size
With wire protectionYes
Number of contacts16
Technical characteristics
Conductor cross-section 0.14 ... 2.5 mm²
Conductor cross-section AWG 26 ... AWG 14
Rated current 16A
Rated voltage 500 V
Rated impulse voltage 6 kV
Pollution degree 3
Rated voltage acc. to UL 600 V
Rated voltage acc. to CSA 600 V
Insulation resistance > 1010 Ω
Contact resistance ≤ 1 mΩ
Limiting temperature -40 ... +125 °C
Stripping length 7 ... 9 mm
Tightening torque 0.5 Nm
Mating cycles ≥ 500
Material properties
Material (insert) Polycarbonate
Colour (insert) RAL 7032 (pebble grey)
Material (contacts) Copper alloy
Surface (contacts) Silver plated 3 thickness
RoHS compliant with exemption
Commercial data
Packaging size 1
Country of origin China
Chinese customs tariff number

 8536901900


Deatils photo:

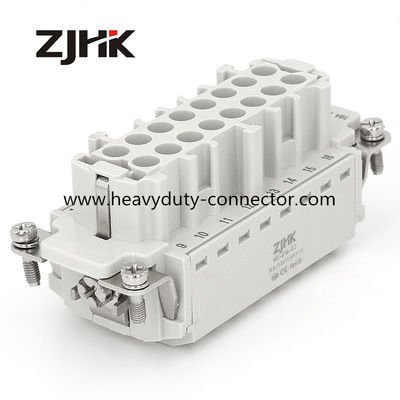

Female part

Same As Phoenix Quick Lock Terminal 16pin Contacts Female Insert Heavy Duty Plug 0
Male part
Same As Phoenix Quick Lock Terminal 16pin Contacts Female Insert Heavy Duty Plug 1
