Heavy Duty Rectangular Connectors Temperature Controller Connectors 24 Pole Male

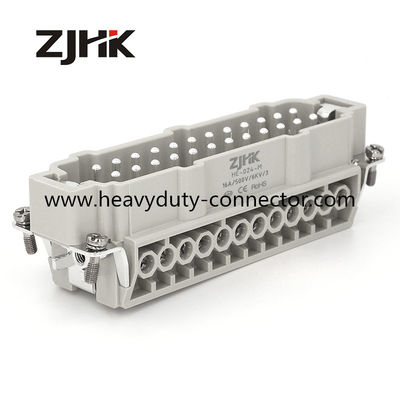

Heavy Duty Rectangular Connectors Temperature Controller Connectors 24 Pole Male

  • Heavy Duty Rectangular Connectors Temperature Controller Connectors 24 Pole Male
  • Heavy Duty Rectangular Connectors Temperature Controller Connectors 24 Pole Male
  • Heavy Duty Rectangular Connectors Temperature Controller Connectors 24 Pole Male
Heavy Duty Rectangular Connectors Temperature Controller Connectors 24 Pole Male
Product Details:
Place of Origin: China
Brand Name: ZJHK
Certification: CE, RoHS, SGS, CQC,
Model Number: HE-024-M
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: Negotiable
Packaging Details: Standard Export Cartons
Delivery Time: 7 Days
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 100,000 pcs per month
Contact Now
Detailed Product Description
Order Number: 09330242601 Model Type:: Standard Connector HE Series
Material: Polycarbonate Sabic 3412 ECR Wire Connection: Screw
Housing: H24B Series Nos Of Contact: 24
Highlight:

heavy duty connector 24 pin

,

24 Poles Heavy Duty Rectangular Connectors

,

Temperature Controller Connectors 24 Pole Male



16A Hot runner temperature controller connector.





Inserts, Screw termination, male, Polycarbonate, RAL 7032 (pebble grey), Rated current: 16A, Size: 24 B, Contacts: 24, Conductor cross-section: 0.75 ... 2.5mm²,  Silver plated





Technical data

Identification
Series HE
Version
Termination method Screw termination
Gender male
Size 24 B
Number of contacts 24
PE contact Yes
Material (contacts) Copper alloy  Silver plated
Technical characteristics
Conductor cross-section 0.75 ... 2.5 mm²
Conductor cross-section AWG 18 ... AWG 14
Rated current 16 A
Rated voltage 500 V
Rated impulse voltage 6 kV
Pollution degree 3
Rated voltage acc. to UL 600 V
Insulation resistance > 1010 Ω
Limiting temperature -40 ... +125 °C
Mating cycles ≥ 500
Material properties
Material (insert) Polycarbonate
Material flammability class acc. to UL 94 V-0
RoHS compliant
Commercial data
Packaging size 1
Net weight 112.4g
Country of origin China




Industrial 4.0 solution


Temperature conntroller application
Heavy Duty Rectangular Connectors Temperature Controller Connectors 24 Pole Male 0Heavy Duty Rectangular Connectors Temperature Controller Connectors 24 Pole Male 1



Heavy Duty Rectangular Connectors Temperature Controller Connectors 24 Pole Male 2
our Exhibition (Some part of exhibition photos)
                   Heavy Duty Rectangular Connectors Temperature Controller Connectors 24 Pole Male 3



Package photo

Heavy Duty Rectangular Connectors Temperature Controller Connectors 24 Pole Male 4
