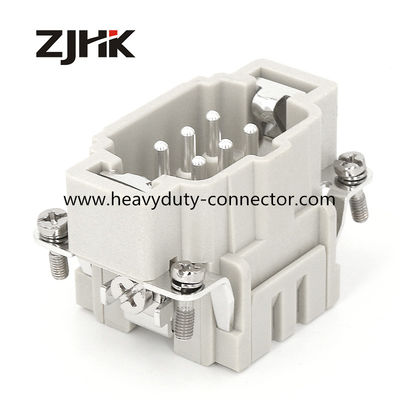

6 Pin Cage Clamp Termination 16A 500V Spring Connector Similer Harting Han 6 ES M Insert
Part number: 09 33 006 2616
Auto Industrial 4.0 solution
Part number: 09 33 006 2616
Technical data
| Version | |
| Termination method | Cage-clamp termination |
| Gender | Male |
| Size | 6B |
| With wire protection | Yes |
| Number of contacts | 6 |
| PE contact | Yes |
| Technical characteristics | |
| Conductor cross-section | 0.14 ... 2.5 mm² |
| Conductor cross-section | AWG 26 ... AWG 14 |
| Rated current | 16A |
| Rated voltage | 500 V |
| Rated impulse voltage | 6 kV |
| Pollution degree | 3 |
| Rated voltage acc. to UL | 600 V |
| Rated voltage acc. to CSA | 600 V |
| Insulation resistance | > 1010 Ω |
| Contact resistance | ≤ 1 mΩ |
| Limiting temperature | -40 ... +125 °C |
| Stripping length | 7 ... 9 mm |
| Tightening torque | 0.5 Nm |
| Mating cycles | ≥ 500 |
| Material properties | |
| Material (insert) | Polycarbonate |
| Colour (insert) | RAL 7032 (pebble grey) |
| Material (contacts) | Copper alloy |
| Surface (contacts) | Silver plated |
| RoHS | compliant with exemption |
| Commercial data | |
| Packaging size | 1 |
| Net weight | 48g |
| Country of origin | China |
| European | 85366990 |
| Chinese customs tariff number | 8536901900 |
| eCl@ss | 27440205 Contact insert for industrial connectors |
