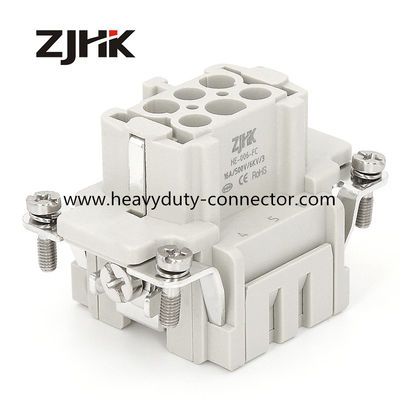

H6B Series Heavy Duty Connector Copper Alloy Silver Plated And Gold Plated
  • name
  • name
  • name

H6B Series Heavy Duty Connector Copper Alloy Silver Plated And Gold Plated

MOQ: 5
Price: Negotiable
Standard Packaging: Standard Export Cartons
Delivery Period: 7 Days
Payment Method: L/C, T/T, Western Union, Paypal
Supply Capacity: 100,000 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
ZJHK
Certification
CE, RoHS, SGS, CQC,
Model Number
HE-006-FC
Order Number:
09330062702
Model Type::
Standard Connector HE Series
Material:
Polycarbonate Sabic 3412 ECR
Wire Connection:
Crimp
Housing:
H6B Series
Nos Of Contact:
6
Highlight:

H6B Series Heavy Duty Connector

,

Copper Alloy Heavy Duty Connector

Product Description



Replace

Han 6E Insert Female Crimp Match Harting Male part.



Inserts, Crimp termination, Female, Polycarbonate, RAL 7032 (pebble grey), Rated current: 16A, Size: 6 B, Contacts: 6, Conductor cross-section: 0.14 ... 4mm²

Part number: 09 33 006 2702



Support  Industrial 4.0  solution







Technical data

Identification
Category Inserts
Series HE
Version
Termination method Crimp termination
Gender Female
Size 6 B
Number of contacts 6PIN
PE contact Yes
Technical characteristics
Conductor cross-section

0.14 ... 4 mm²

Please order crimp contacts separately.
Conductor cross-section AWG 26 ... AWG 12
Rated current 16 A
Rated voltage 500 V
Rated impulse voltage 6 kV
Pollution degree 3
Rated voltage acc. to UL 600 V
Rated voltage acc. to CSA 600 V
Insulation resistance > 1010 Ω
Limiting temperature -40 ... +125 °C
Mating cycles ≥ 500
Material (insert) Polycarbonate
Colour (insert) RAL 7032 (pebble grey)
Material flammability class acc. to UL 94 V-0
RoHS compliant

Design drawing:



H6B Series Heavy Duty Connector Copper Alloy Silver Plated And Gold Plated 0

H6B Series Heavy Duty Connector Copper Alloy Silver Plated And Gold Plated 1

Notice:

Please order crimp contacts separately.

H6B Series Heavy Duty Connector Copper Alloy Silver Plated And Gold Plated 2







H6B Series Heavy Duty Connector Copper Alloy Silver Plated And Gold Plated 3




H6B Series Heavy Duty Connector Copper Alloy Silver Plated And Gold Plated 4
