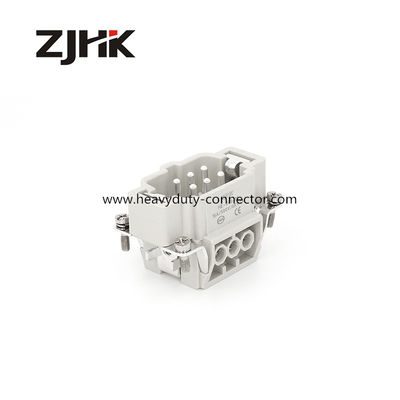

500V Screw In 6 Pin Heavy Duty Connector Fit Injection Molding Machine

500V Screw In 6 Pin Heavy Duty Connector Fit Injection Molding Machine

500V Screw In 6 Pin Heavy Duty Connector Fit Injection Molding Machine
500V Screw In 6 Pin Heavy Duty Connector Fit Injection Molding Machine
500V Screw In 6 Pin Heavy Duty Connector Fit Injection Molding Machine
Product Details:
Place of Origin: China
Brand Name: ZJHK
Certification: CE, RoHS, SGS, CQC,
Model Number: HE-006-M
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: Negotiable
Packaging Details: Standard Export Cartons
Delivery Time: 7 Days
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 100,000 pcs per month
Contact Now
Detailed Product Description
Order Number: 09330062601 Model Type:: Standard Connector HE Series
Material: Polycarbonate Sabic 3412 ECR Wire Connection: Screw
Housing: H6B Series Nos Of Contact: 6
Highlight:

screw in 6 pin heavy duty connector

,

6 Pin Heavy Duty Connector

,

Injection Molding Machine Heavy Duty Connector



500V 6 Pin Screw 6 Pin Male Heavy Duty Connector Fit Injection Molding Machine

Match Han E 06 Pos. F Insert Screw

Inserts, Screw termination, Female



Fit   ABB KUKA  FANUC Robots Industrial solution





Part number: 09330062601

Technical data

Version
Termination method Screw termination
Gender Male
Size 6B
With wire protection Yes
Number of contacts 6
PE contact Yes
Technical characteristics
Conductor cross-section  0.75 ... 2.5 mm²
Conductor cross-section  AWG 18 ... AWG 14
Rated current  16A
Rated voltage  500 V
Rated impulse voltage  6 kV
Pollution degree  3
Rated voltage acc. to UL  600 V
Insulation resistance  > 1010 Ω
Contact resistance  ≤ 1 mΩ
Limiting temperature  -40 ... +125 °C
Stripping length  7.5 mm
Tightening torque  0.5 Nm
Mating cycles  ≥ 500
Material properties
Material (insert)  Polycarbonate
Colour (insert)  RAL 7032 (pebble grey)
Material (contacts)  Copper alloy
Surface (contacts)  Silver plated
RoHS  compliant with exemption
Commercial data
Packaging size  1
Net weight  48g
Country of origin  China
Chinese customs tariff number

 8536901900





Design drawing:



500V Screw In 6 Pin Heavy Duty Connector Fit Injection Molding Machine 0




                   500V Screw In 6 Pin Heavy Duty Connector Fit Injection Molding Machine 1
