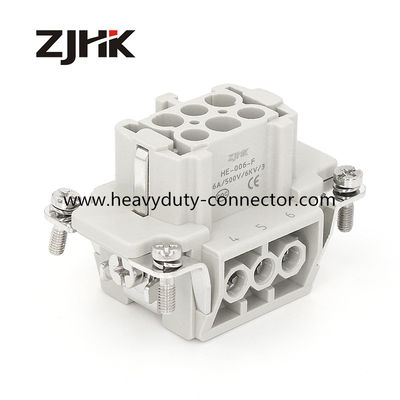

16amp Female Screw Terminal Heavy Duty Connector KUKA Industrial Solution 09330062701

16amp Female Screw Terminal Heavy Duty Connector KUKA Industrial Solution 09330062701

16amp Female Screw Terminal Heavy Duty Connector KUKA Industrial Solution 09330062701
16amp Female Screw Terminal Heavy Duty Connector KUKA Industrial Solution 09330062701
16amp Female Screw Terminal Heavy Duty Connector KUKA Industrial Solution 09330062701
Product Details:
Place of Origin: China
Brand Name: ZJHK
Certification: CE, RoHS, SGS, CQC,
Model Number: HE-006-F
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: Negotiable
Packaging Details: Standard Export Cartons
Delivery Time: 7 Days
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 100,000 pcs per month
Contact Now
Detailed Product Description
Order Number: 09330062701 Model Type:: Standard Connector HE Series
Material: Polycarbonate Sabic 3412 ECR Wire Connection: Screw
Housing: H6B Series Nos Of Contact: 6
Highlight:

Female Screw Terminal Heavy Duty Connector

,

heavy duty electrical connectors 16amp

Replace   Han E 06 Pos. F Insert Screw

Inserts, Screw termination, Female, Polycarbonate, RAL 7032 (pebble grey), Rated current: 16A, Size: 6 B, Contacts: 6, Conductor cross-section: 0.75 ... 2.5mm², Copper alloy, Silver plated



Fit   ABB KUKA  FANUC Robots Industrial solution







Part number: 09330062701

Technical data



Identification
Category  Inserts
Series  HE
Termination method  Screw termination
Gender  Female
Size  6B
Number of contacts  6Pin
PE contact  Yes
Contact identification  0.75 ... 2.5 mm²
Conductor cross-section

  AWG 18 ... AWG 14

Technical characteristics
Rated current  16A
Rated voltage  500V
Rated impulse voltage  6 kV
Rated voltage acc. to UL  600 V
Insulation resistance  ≥ 1010 Ω
Limiting temperature  -40 ... +125 °C
Mating cycles  ≥ 500
Material properties
Material (insert)  Polycarbonate
Colour (insert)  RAL 7032 (pebble grey)
RoHS  Compliant with exemption
Packaging size  1
Net weight  49g
eCl@ss  Contact insert for industrial connectors









16amp Female Screw Terminal Heavy Duty Connector KUKA Industrial Solution 09330062701 0



16amp Female Screw Terminal Heavy Duty Connector KUKA Industrial Solution 09330062701 1


Our Services



1. We are professional supplier,so we provide Low MOQ: It can meet your business very well.
2. We work with dozens of factories to ensure competitive price, We also will treat you as our friends.
3. Inspections:100% test before delivery.Package will do after several discussions with you.
4. OEM and ODM are acceptable,Please send us your design and other important information. OEM are always welcome.
Any questions please feel free to contact us, 7*24 hours for you !!!
