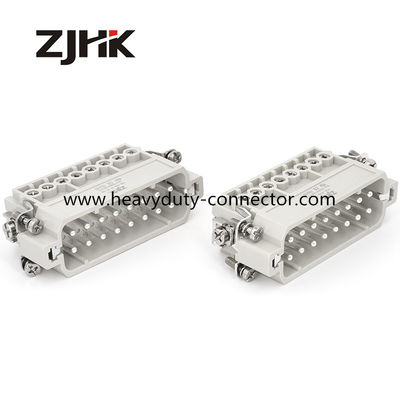

32 Pin Screw Terminal Double 16 Pin Male And Female Connector Heavy Duty Long Life

Products

Heavy Duty Rectangular Connector

Heavy Duty Multi Pin Connector

Heavy Duty Electrical Connector

32 Pin Screw Terminal Double 16 Pin Male And Female Connector Heavy Duty Long Life

MOQ:	5
Price:	Negotiable
Standard Packaging:	Standard Export Cartons
Delivery Period:	7 Days
Payment Method:	L/C, T/T, Western Union, Paypal
Supply Capacity:	100,000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Certification

CE, RoHS, SGS, CQC,

Model Number

HA-032-M

Order Number:

09200162612&09200162613

Model Type::

Slim Connector HA Series

Material:

Polycarbonate Sabic 3412 ECR

Wire Connection:

Screw

Housing:

H32A Series

Nos Of Contact:

Highlight:

16 Pin Male And Female Connector

Male And Female Connector Heavy Duty

32 Pin Screw Terminal Connector

Product Description

Inserts, Screw termination, male, Polycarbonate, RAL 7032 (pebble grey), Rated current: 16A, Size: 32 A, Contacts: 32, Conductor cross-section: 1.0 ... 2.5 mm² , Copper alloy, Silver plated

Part number: 09200162612&09200162613

Technical data

Identification
Category	Inserts
Series	HA
Version
Termination method	Screw termination
Gender	Male
Size	32 A
Number of contacts	32
PE contact	Yes
Technical characteristics
Conductor cross-section	1.0 ... 2.5 mm²
Rated current	16 A
Rated voltage	250 V
Rated impulse voltage	4 kV
Pollution degree	3
Rated voltage acc. to UL	600 V
Insulation resistance	≥ 10¹⁰ Ω
Limiting temperature	-40 ... +125 °C
Tightening torque	0.5 Nm
Mating cycles	≥ 500
Material properties
Material (insert)	Polycarbonate
Colour (insert)	RAL 7032 (pebble grey)
Material (contacts)	Copper alloy
Surface (contacts)	Silver plated
RoHS	compliant with exemption
Commercial data
Packaging size	1
Net weight	132 g
Country of origin	China
eCl@ss	Contact insert for industrial connectors

Match:
Hood and Housing - H32A Series
Hood - Side Entry / Top Entry - High Construction for larger wire is available
Housing - Bulkhead / Surface Mounting / Cable to Cable
Locking levers : Double in Stainless Steel or Zinc plated Steel
Protective covers: plastic or metal cover optional
Thread:M25,M32,PG21,PG29
