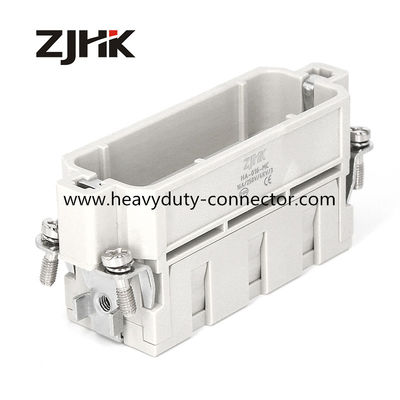

16 Blunt Male Crimp Terminal Heavy Duty Electrical Connectors Match With Weidmueller

MOQ:	5
Price:	Negotiable
Standard Packaging:	Standard Export Cartons
Delivery Period:	7 Days
Payment Method:	L/C, T/T, Western Union, Paypal
Supply Capacity:	100,000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Certification

CE, RoHS, SGS, CQC,

Model Number

HA-016-MC

Order Number:

09200163001

Model Type::

Slim Connector HA Series

Material:

Polycarbonate Sabic 3412 ECR

Wire Connection:

Crimp

Housing:

H16A Series

Nos Of Contact:

Highlight:

heavy duty 2 pin connector

Crimp Terminal Heavy Duty Electrical Connectors

16 Blunt Male Electrical Connectors

Product Description

REPLACE Harting and Weidmueller

Inserts, Crimp termination, male, Polycarbonate, RAL 7032 (pebble grey), Rated current: 16A, Size: 16 A, Contacts: 16, Conductor cross-section: 0.14 ... 4mm², Copper alloy, Silver plated

Part number: 09 20 016 3001

Technical data

Identification
Category	Inserts
Series	HA
Version
Termination method	Crimp termination
Gender	Male
Size	16 A
Number of contacts	16
PE contact	Yes
Technical characteristics
Conductor cross-section	0.14 ... 4 mm²
Rated current	16 A
Rated voltage	250 V
Rated impulse voltage	4 kV
Pollution degree	3
Rated voltage acc. to UL	600 V
Insulation resistance	≥ 10¹⁰ Ω
Limiting temperature	-40 ... +125 °C
Tightening torque	0.5 Nm
Mating cycles	≥ 500
Material properties
Material (insert)	Polycarbonate
Colour (insert)	RAL 7032 (pebble grey)
Material (contacts)	Copper alloy
Surface (contacts)	Silver plated
RoHS	compliant with exemption
Commercial data
Packaging size	1
Net weight	65.5 g
Country of origin	China
eCl@ss	Contact insert for industrial connectors

Notice:

Please order crimp contacts separately.

16 Blunt Male Crimp Terminal Heavy Duty Electrical Connectors Match With Weidmueller 0

16 Blunt Male Crimp Terminal Heavy Duty Electrical Connectors Match With Weidmueller 1

Match:
Hood and Housing - H16A Series
Hood - Side Entry / Top Entry - High Construction for larger wire is available
Housing - Bulkhead / Surface Mounting / Cable to Cable
Locking levers : Double in Stainless Steel or Zinc plated Steel
Protective covers: plastic or metal cover optional
Thread: PG16, PG21,/ M20, M25

16 Blunt Male Crimp Terminal Heavy Duty Electrical Connectors Match With Weidmueller 2
