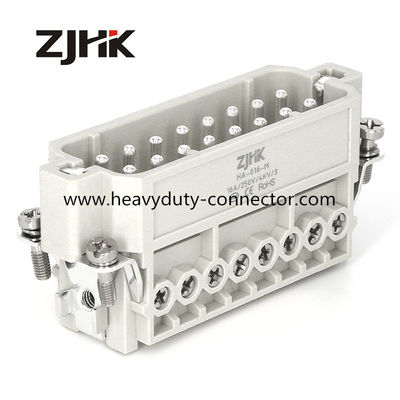

16P Male 16 Amp 240v 16-Pin Power Connector Rectangular
  • name
  • name
  • name

16P Male 16 Amp 240v 16-Pin Power Connector Rectangular

MOQ: 5
Price: Negotiable
Standard Packaging: Standard Export Cartons
Delivery Period: 7 Days
Payment Method: L/C, T/T, Western Union, Paypal
Supply Capacity: 100,000 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
ZJHK
Certification
CE, RoHS, SGS, CQC,
Model Number
HA-016-M
Order Number:
09200162612
Model Type::
Slim Connector HA Series
Material:
Polycarbonate Sabic 3412 ECR
Wire Connection:
Screw
Housing:
H16A Series
Nos Of Contact:
16
Highlight:

240v 16-Pin Power Connector

,

16 Amp heavy duty power connectors

,

16-Pin Power Connector Rectangular

Product Description



HA Series 16Pin Rectangular Heavy Duty Connector 16 Amp male Plug Scoket

SAME AS Han 16A-STI-S

Inserts, Screw termination, Male, Polycarbonate, RAL 7032 (pebble grey), Rated current: 16A, Size: 16 A, Contacts: 16




Part number: 09 20 016 2612

Description
1). We provide full range of heavy duty connectors, our customers can select the right connectors per their requirements
2). Our housing and inserts are compatible with all of famous brands in market.
3). We provide various of connection type: Screw Termination, Crimp Termination, Cage clamp Termination, and the wire range reaches to 4mm2
4). We can make everything in a single housing: signals, data, power, and pneumatics intergated
5). Our connectors are ready for IP65 or IP68 with good surfaces and seals.



Technical data



Identification
Category  Inserts
Series  HA
Version
Termination method  Screw termination
Gender  Male
Size  16 A
Number of contacts  16
PE contact  Yes
Technical characteristics
Conductor cross-section  0.14 ... 4 mm²
Rated current  16 A
Rated voltage  250 V
Rated impulse voltage  4 kV
Pollution degree

 3
Rated voltage acc. to UL  600 V
Insulation resistance  ≥ 1010 Ω
Limiting temperature  -40 ... +125 °C
Tightening torque  0.5 Nm
Mating cycles  ≥ 500
Material properties
Material (insert)  Polycarbonate
Colour (insert)  RAL 7032 (pebble grey)
Material (contacts)  Copper alloy
Surface (contacts)  Silver plated
RoHS  compliant with exemption
Commercial data
Packaging size  1
Net weight  64 g
Country of origin  China





Match:
Hood and Housing - H16A Series
Hood - Side Entry / Top Entry - High Construction for larger wire is available
Housing - Bulkhead / Surface Mounting / Cable to Cable
Locking levers : Double in Stainless Steel or Zinc plated Steel
Protective covers: plastic or metal cover optional
Thread: PG16, PG21,/ M20, M25



16P Male 16 Amp 240v 16-Pin Power Connector Rectangular 0



Design drowing:

16P Male 16 Amp 240v 16-Pin Power Connector Rectangular 1



What's our advantage:


16P Male 16 Amp 240v 16-Pin Power Connector Rectangular 2

16P Male 16 Amp 240v 16-Pin Power Connector Rectangular 3
