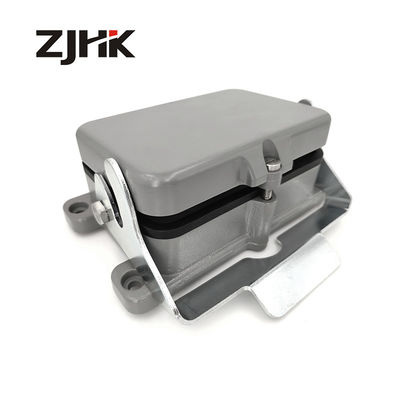

1 Lever Plastic Cover 48 Pin Connector 09300480301 Bulkhead Mounting
  • name
  • name

1 Lever Plastic Cover 48 Pin Connector 09300480301 Bulkhead Mounting

MOQ: 1
Price: negotible
Standard Packaging: Standard Export Cartons
Delivery Period: 5 Days
Payment Method: L/C, T/T, Western Union, Paypal
Supply Capacity: 100,000 / Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
ZJHK
Certification
CE, RoHS, SGS, CQC
Model Number
H48B-BK-1L-CV
Order Number:
09300480301
Hood Type:
Bulkhead Mounting, With Plastic Cover
Housing Model:
H48B Series
Housing Material:
Die Cast Aluminium Alloy
Package:
Indivisual Packing In Box
OEM:
Provided
Highlight:

Plastic Cover 48 Pin Connector

,

48 Pin Connector 09300480301

,

CQC 48 Pin Connector

Product Description



Bulkhead mounted housings, With plastic cover, Size: 48 B,
Low construction, Single locking lever, Stainless steel/Lever
Artikelnummer: 09300480301


Technical data

Identification
Category Hoods/Housings
Series of hoods/housings HB
Type of hood/housing Bulkhead mounted housings
Description of hood/housing With plastic cover
Type Low construction
Version
Locking type Single locking lever
Size 48 B
Field of application Standard hoods/housings for industrial connectors
Limiting temperature -40 ... +125 °C
Degree of protection acc. to IEC 60529 IP65
Material properties
Material (hood/housing) Aluminium die-cast
Surface (hood/housing) Powder-coated
Colour (hood/housing) Grey or per customer order
Material (seal) NBR
RoHS compliant
China RoHS e
Commercial data
Packaging size Indivisual part piece package
Country of origin China
Brand ZJHK


Features
1) Compatible with Harting 48B Series Hood and Housing
2) Numerous in mounting varieties and entry thread
3) Locking Levers made by Stainless Steel 304.
4) Salt Spray Test withstand more than 96 hours.

1 Lever Plastic Cover 48 Pin Connector 09300480301 Bulkhead Mounting 0

1 Lever Plastic Cover 48 Pin Connector 09300480301 Bulkhead Mounting 1


Main Equipment: Injection machine, Die casting machine, Punching machine, CNC Lathe Machines, Surface Treatment, Laser printing machine, etc

Main Test Facility: temperature measuring device, voltage / insulation resistance tester, Silver plating density test machine, flame retardant machine, Salt spray test machine and  push and pull strength test machine.

Staff and Workshop: 50 workshop staff and 10 Engineers focus for heavy duty connector from Mold design, Production, Assembling, Packing and Test.

Output: 100,000pcs~150,000pcs.

OEM: We own hundreds of mold and our engineer are skilled to open new mold upon customer sample. Customer logo and name on connectors is available.

Warranty: 100% QC checked before selling. And if any quality problem, our engineer will response within 24 hours.

1 Lever Plastic Cover 48 Pin Connector 09300480301 Bulkhead Mounting 2
1 Lever Plastic Cover 48 Pin Connector 09300480301 Bulkhead Mounting 3
