| Place of Origin: | China |
| Brand Name: | ZJHK |
| Certification: | CE, RoHS, SGS, CQC |
| Model Number: | H6B-SE-2B-PG16 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Cartons |
| Delivery Time: | 5 Days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 50,000 Set / Month |
| Order Number: | 093300065423 / 5425 / 5427 | Model:: | H6B |
|---|---|---|---|
| Material: | Die Cast Aluminium / PC | Colour: | Grey |
| OEM: | Provided | Protection: | IP65 |
| Type: | Protection Cover | ||
| High Light: | connector hood,d sub hood assembly |
||

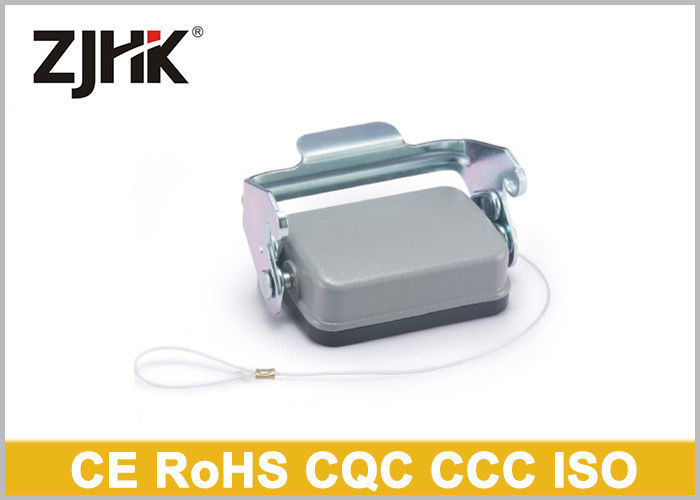

H6B Removable Metal / Plastic Protective Cover for 6 Pin Terminal Connector
Production Family
| hood side entry with 2 bolts M20 thread | H6B-SE-2B-M20 | 19300061540 |
| hood side entry with 2 bolts M25 thread | H6B-SE-2B-M25 | 19300061541 |
| hood side entry with 2 bolts PG13.5 thread | H6B-SE-2B-PG13.5 | 09300061540 |
| hood side entry with 2 bolts PG16 thread | H6B-SE-2B-PG16 | 09300061541 |
| hood side entry with 2 bolts M25 thread (high construction) | H6B-SEH-2B-M25 | 19300060546 |
| hood side entry with 2 bolts M32 thread (high construction) | H6B-SEH-2B-M32 | 19300060547 |
| hood side entry with 2 bolts PG21 thread (high construction) | H6B-SEH-2B-PG21 | 09300060542 |
| hood side entry with 2 bolts PG29 thread (high construction) | H6B-SEH-2B-PG29 | 09300060543 |
| hood top entry with 2 bolts M20 thread | H6B-TE-2B-M20 | 19300061440 |
| hood top entry with 2 bolts PG13.5 thread | H6B-TE-2B-PG13.5 | 09300061440 |
| hood top entry with 2 bolts PG16 thread | H6B-TE-2B-PG16 | 09300061441 |
| hood top entry with 2 bolts M25 thread (high construction) | H6B-TEH-2B-M25 | 19300060446 |
| hood top entry with 2 bolts M32 thread (high construction) | H6B-TEH-2B-M32 | 19300060447 |
| hood top entry with 2 bolts PG21 thread (high construction) | H6B-TEH-2B-PG21 | 09300060442 |
| hood top entry with 2 bolts PG29 thread (high construction) | H6B-TEH-2B-PG29 | 09300060443 |
| cable to cable with 1 metal lever M20 thread | H6B-CCT-1L-M20 | 19300061750 |
| cable to cable with 1 metal lever PG13.5 thread | H6B-CCT-1L-PG13.5 | 09300061750 |
| cable to cable with 1 metal lever PG16 thread | H6B-CCT-1L-PG16 | 09300061751 |
| cable to cable with 1 plastic lever M25 thread (high construction) | H6B-CCTH-1L-M25 | 19300060756 |
| cable to cable with 1 plastic lever PG21 thread (high construction) | H6B-CCTH-1L-PG21 | 09300060752 |
| cable to cable with 1 plastic lever PG29 thread (high construction) | H6B-CCTH-1L-PG29 | 09300060753 |
| housing bulkhead mounted with 1 metal lever | H6B-BK-1L | 09300060301 |
| housing bulkhead mounted with 1 metal lever with plastic COVER | H6B-BK-1L-CV | 09300060302 |
| housing bulkhead mounted with 1 metal lever with metal COVER | H6B-BK-1L-MCV | 09300060318 |
| housing surface mounted with 1 metal lever M20 thread | H6B-SF-1L-M20 | 19300061250 |
| housing surface mounted with 1 metal lever two sides M20 thread | H6B-SF-1L-2M20 | 19300061290 |
| housing surface mounted with 1 metal lever M25 thread | H6B-SF-1L-M25 | 19300061350 |
| housing surface mounted with 1 metal lever two sides M25 thread | H6B-SF-1L-2M25 | 19300061390 |
| housing surface mounted with 1 metal lever PG16 thread | H6B-SF-1L-PG16 | 09300061251 |
| housing surface mounted with 1 metal lever two sides PG16 thread | H6B-SF-1L-2PG16 | 09300061291 |
| housing surface mounted with 1 metal lever M20 thread with plastic COVER | H6B-SF-1L-CV-M20 | 19300061255 |
| housing surface mounted with 1 metal lever two sides M20 thread with plastic COVER | H6B-SF-1L-CV-2M20 | 19300061295 |
| housing surface mounted with 1 metal lever M25 thread with plastic COVER | H6B-SF-1L-CV-M25 | 19300061355 |
| housing surface mounted with 1 metal lever two sides M25 thread with plastic COVER | H6B-SF-1L-CV-2M25 | 19300061395 |
| housing surface mounted with 1 metal lever PG16 thread with plastic COVER | H6B-SF-1L-CV-PG16 | 09300061256 |
| housing surface mounted with 1 metal lever two sides PG16 thread with plastic COVER | H6B-SF-1L-CV-2PG16 | 09300061296 |
| housing surface mounted with 1 metal lever M20 thread with mental COVER | H6B-SF-1L-MCV-M20 | 19300062255 |
| housing surface mounted with 1 metal lever two sides M20 thread with mental COVER | H6B-SF-1L-MCV-2M20 | 19300062295 |
| housing surface mounted with 1 metal lever M25 thread with mental COVER | H6B-SF-1L-MCV-M25 | 19300062355 |
| housing surface mounted with 1 metal lever two sides M25 thread with mental COVER | H6B-SF-1L-MCV-2M25 | 19300062395 |
| housing surface mounted with 1 metal lever PG16 thread with mental COVER | H6B-SF-1L-MCV-PG16 | 09300062256 |
| housing surface mounted with 1 metal lever two sides PG16 thread with mental COVER | H6B-SF-1L-MCV-2PG16 | 09300062296 |
| housing surface mounted with 1 metal lever M25 thread (high construction) | H6B-SFH-1L-M25 | 19300060251 |
| housing surface mounted with 1 metal lever two sides M25 thread (high construction) | H6B-SFH-1L-2M25 | 19300060291 |
| housing surface mounted with 1 metal lever M32 thread (high construction) | H6B-SFH-1L-M32 | 19300060252 |
| housing surface mounted with 1 metal lever two sides M32 thread (high construction) | H6B-SFH-1L-2M32 | 19300060292 |
| housing surface mounted with 1 metal lever PG21 thread (high construction) | H6B-SFH-1L-PG21 | 09300060252 |
| housing surface mounted with 1 metal lever two sides PG21 thread (high construction) | H6B-SFH-1L-2PG21 | 09300060292 |
| housing surface mounted with 1 metal lever PG29 thread (high construction) | H6B-SFH-1L-PG29 | 09300060253 |
| housing surface mounted with 1 metal lever two sides PG29 thread (high construction) | H6B-SFH-1L-2PG29 | 09300060293 |
| housing surface mounted with 1 metal lever M25 thread (high construction) with plastic COVER | H6B-SFH-1L-CV-M25 | 19300060256 |
| housing surface mounted with 1 metal lever two sides M25 thread (high construction)with plastic COVER | H6B-SFH-1L-CV-2M25 | 19300060296 |
| housing surface mounted with 1 metal lever M32 thread (high construction)with plastic COVER | H6B-SFH-1L-CV-M32 | 19300060257 |
| housing surface mounted with 1 metal lever two sides M32 thread (high construction)with plastic COVER | H6B-SFH-1L-CV-2M32 | 19300060297 |
| housing surface mounted with 1 metal lever PG21 thread (high construction)with plastic COVER | H6B-SFH-1L-CV-PG21 | 09300060257 |
| housing surface mounted with 1 metal lever two sides PG21 thread (high construction)with plastic COVER | H6B-SFH-1L-CV-2PG21 | 09300060297 |
| housing surface mounted with 1 metal lever PG29 thread (high construction)with plastic COVER | H6B-SFH-1L-CV-PG29 | 09300060258 |
| housing surface mounted with 1 metal lever two sides PG29 thread (high construction)with plastic COVER | H6B-SFH-1L-CV-2PG29 | 09300060298 |
| housing surface mounted with 1 metal lever M25 thread (high construction) with mental COVER | H6B-SFH-1L-MCV-M25 | 19300067256 |
| housing surface mounted with 1 metal lever two sides M25 thread (high construction) with mental COVER | H6B-SFH-1L-MCV-2M25 | 19300067296 |
| housing surface mounted with 1 metal lever M32 thread (high construction) with mental COVER | H6B-SFH-1L-MCV-M32 | 19300061257 |
| housing surface mounted with 1 metal lever two sides M32 thread (high construction) with mental COVER | H6B-SFH-1L-MCV-2M32 | 19300061297 |
| housing surface mounted with 1 metal lever PG21 thread (high construction) with mental COVER | H6B-SFH-1L-MCV-PG21 | 09300062257 |
| housing surface mounted with 1 metal lever two sides PG21 thread (high construction) with mental COVER | H6B-SFH-1L-MCV-2PG21 | 09300062297 |
| housing surface mounted with 1 metal lever PG29 thread (high construction) with mental COVER | H6B-SFH-1L-MCV-PG29 | 09300062258 |
| housing surface mounted with 1 metal lever two sides PG29 thread (high construction with mental COVER | H6B-SFH-1L-MCV-2PG29 | 09300062298 |
| IP68 hood, side entry, with 2 SS screw,M20 thread (high construction) | HC6B-SEH-2S-M20 | 19400061500 |
| IP68 hood, side entry, with 2 SS screw,M25 thread (high construction) | HC6B-SEH-2S-M25 | 19400061501 |
| IP68 hood, side entry, with 2 SS screw,PG16 thread (high construction) | HC6B-SEH-2S-PG16 | 09400061500 |
| IP68 hood, side entry, with 2 SS screw,PG21 thread (high construction) | HC6B-SEH-2S-PG21 | 09400061501 |
| IP68 hood, top entry, with 2 SS screw,M20 thread (high construction) | HC6B-TEH-2S-M20 | 19400061550 |
| IP68 hood, top entry, with 2 SS screw,M25 thread (high construction) | HC6B-TEH-2S-M25 | 19400061551 |
| IP68 hood, top entry, with 2 SS screw,PG16 thread (high construction) | HC6B-TEH-2S-PG16 | 09400061550 |
| IP68 hood, top entry, with 2 SS screw,PG21 thread (high construction) | HC6B-TEH-2S-PG21 | 09400061551 |
OEM
Customer Logo and name is available by laser printing on products
Customer sample is welcomed
Packing
Each part packed in a plastic bag, Full set packed in small boxes.
Delivery Time
24 hours for sample order
3~7 days when qty less than 1000pcs
10~15 days for customized order or qty more than 5000pcs
Transportation:
By International Express: DHL, TNT, FEDEX, UPS, Aramex, SF, Post, etc.
By Sea: We can offer FOB Ningbo, FOB Shanghai, FOB Shenzhen, etc
By Air: We can ship from Ningbo, Shanghai, Shenzhen, Hongkong, Beijing International Airport.
By Railway. We can ship by rail to Europe and Russia.We also can send to your forwarder or other suppliers for co-shipment.
