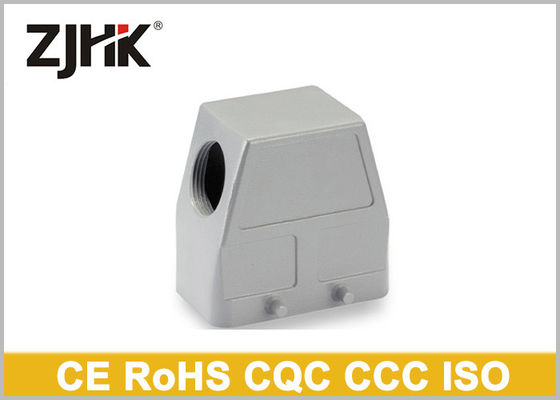

Side Entry Industrial Connector Hood Die Cast Aluminium Material 09300101521 H10B-SE-4B
Products

Heavy Duty Connector

Heavy Duty Rectangular Connector

Heavy Duty Multi Pin Connector

Heavy Duty Electrical Connector

Heavy Duty Wire Connector

Industrial Connector

Multipole Connectors

Industrial Hood And Housing
Contact Us
Contact Now
Side Entry Industrial Connector Hood Die Cast Aluminium Material 09300101521 H10B-SE-4B
  • name
  • name
  • name

Side Entry Industrial Connector Hood Die Cast Aluminium Material 09300101521 H10B-SE-4B

MOQ: 1
Price: Negotiable
Standard Packaging: Standard Export Cartons
Delivery Period: 5 Days
Payment Method: L/C, T/T, Western Union, Paypal
Supply Capacity: 50,000 Set / Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
ZJHK
Certification
CE, RoHS, SGS, CQC
Model Number
H10B-SE-4B-PG16
Order Number:
09300101521
Model::
H10B
Material:
Die Cast Aluminium
Colour:
Grey
OEM:
Provided
Protection:
IP65
Type:
Side Entry
Thread:
PG16
Highlight:

Side Entry Industrial Connector Hood

,

Die Cast Aluminium Industrial Connector Hood

Product Description

H10B-SE-4B Side Entry Hood for HAN Industrial Connector 09300101521



Features

A. Excellent quality and competitive price

B. Fast delivery with more than 1,000,000 stock for hundreds of different models

C. New models developed every month and Customer Logo is free.

D. Standard manufacturing workshop with 50 staff and 10 Engineers for heavy duty connector

E. Strict Quality control confirm to ISO9001: 2008



Application - Compatible with Harting Han 10B Series Hood and Housing

ZJHK Model Harting Model Description
HE-010 Han 10E 10 Pin Insert at 16A, 500V
HEE-018 Han 18EE 18 Pin Insert at 18A, 500V
HDD-042 Han 42DD 42 Pin Insert at 10A, 250V
HK-008/24 Han K 8/24 8/24 Pin Insert at 16A/10A, 400/160V
HF10B Frame Han Modular 10B



Specification

Name H10B-SE-4B-PG16
Brand  ZJHK
Material Die cast Aluminium Alloy
Finish High Temperature Powder Coated
Color Grey or per customer specific need
Thread PG16 (PG21, PG29, M20, M25, M32 is optional)
Dimension 73X43X57mm, High construction for large wire is available
IP65 Anti Dust, liquid, mechanical stress
Certificate CE, RoHS, CQC, SGS, ISO9001:2008
Hot Sale Region Europe, Russia, Australia, Korea, Southeast Asia, India, Brazil, Middle East
OEM Available



Application

Heavy duty connectors are designed according to DIN EN 61 984 and DIN EN 60 664. They are widely used when an electrical and signal connection is required at Construction machinery, textile machinery, packaging and printing machinery, tobacco machinery, robotics, rail transit, hot runners, electricity, automation, etc.

With advantage of pre-installed, pre-wired, mis-mating preventing, work efficiency improving, now heavy duty connector are popular in Industrial application.



Cautions: NOT for Current Interruption

1) Don't couple or decouple the connectors under electrical load;

2) Don't power up the connectors in the un-mated conditons even if the connectors goes with a protective cover.

3) User should provide protection against electric shock



Company Information

1. We are a professional manufacturer providing the most competitive factory prices.

2. Low MOQ (5 pcs MOQ for order, 1 pcs MOQ for sample), it is convenient for you to order.

3. Accept customization OEM or ODM.

4. Free Samples can be provided

5.Terms of Payment

- TT or L/C at sight.

- Sample order we accept payment such as paypal, western union, visa card, telegraphic transfer, etc.

6.Delivery:

- During peak season, goods will be shipped within 15 days after confirmation of the order.

- During the off-season, goods will be shipped within 7 days after confirmation of the order

- Sample:If we have them in stock, they will be delivered within 1 day. If not, the sample order will be delivered within 3 days after confirmation

7.We offer one-year warranty.
