We Make the Connections More Reliable
|Place of Origin:||China|
|Certification:||CE, RoHS, SGS, CQC|
|Model Number:||H16A-BK-1L / H16A-BK-1L-CV|
|Minimum Order Quantity:||1|
|Packaging Details:||Standard Export Cartons|
|Delivery Time:||5 Days|
|Payment Terms:||L/C, T/T, Western Union, Paypal|
|Supply Ability:||100,000 pcs per month|
|Order Number:||09200160301 / 09200160321||Model::||H16A|
|Material:||Die Cast Aluminium||Colour:||Grey|
|Type:||Housing Base, Protective Cover Optional|
auto electrical connectors,
electrical pin connectors

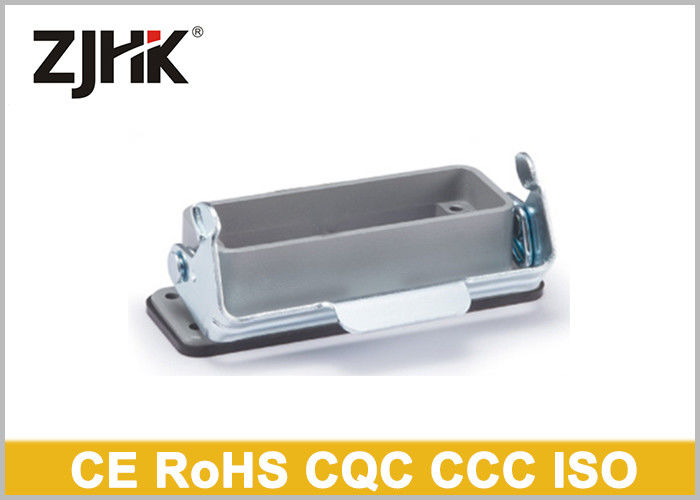

H16A-BK-1L 09200160301 09200160321 for 16 Pin Harting Han Industrial Connector
1. Type: Bulkhead ( Bottom Open Base)
2. Protective cover in plastic or metal is optional
3. Locking Type: Single Lever
4. Lever material: SS304, anti-corrosion and friction
5. Seal material: NBR
6. Max Temperature: 125°C
7. Min Temperature: -40°C
8. Retardant UL94: V0
9. Material : Die-Cast Aluminum
10. Surface : Powder Coated
11. Degree of Protection acc. to EN 60 529: IP65
12. Colour: RAL 7037 Grey
|Thread||made by CNC machine|
|Lever||made by Stainless Steel material|
|Withstand||salt spray test 72 hours|
|QC standard||Every mouting screw was checked before packing|
Mechanical and Plant engineering.
Rail Vehicle and Ships
Power Generation and Distribution
Specializing in heavy duty connector 7 years.
Our canpany is one of the most professional manufacturers in the production of the heavy duty connector, including hundreds types of inserts and housings and export to Europe, Russia, Australia, UK, USA, Korea, India, Middle East, Brazil, etc. All of our products are CE, RoHS, CQC, CCC certified and approved by ISO9001:2008 quality managerment.
50 experienced workshop workers to ensure the production of the finest quality, most of them are with 5 year in our factory, we has 10 producton and assembly lines, Output reach about 300,000 pieces each month and every year, our sales annuals are doubled.
Specific sizes, logo & colors can be made to order. Since we have own molding centre and advanced machines, we are develop new designs every year. Please send us your details and we shall prepare individual quote upon receipt of your information.
1.Normal Package: Inner Bag + Inner Box + Carton.
2.Specific packaging can be made to order.
We have a lot of stock and if it is not big quantity, we can send the goods immediately after recieving payment. For big order, the lead time will depends on the quantity and normally will take 7~15 days
If small quantity, usually send by courier (DHL,FEDEX,TNT and so on). For big quantity, we advise to ship by air or by sea. By sea will take longer time (15~40 days upon destination port), but very cheaper fees. We are near NINGBO and SHANGHAI port.
(1) Free samples to test the quality.
(2) Competitive price.
(3) Pack according to customer's requirement.
(4) Customized logo or design.
(5) Good quality
(6) Fast delivery time.
(7) Plenty of stock
1) By email. Any inquiry will be answered within 24 hours
2) Call us by 0086-18067786591 or 0086-577-61676777
3) Fax us by 0086-577-61676778
4) Visit us at Liushi Town, the capital of China Electrical Industry !
Contact Person: nelson
