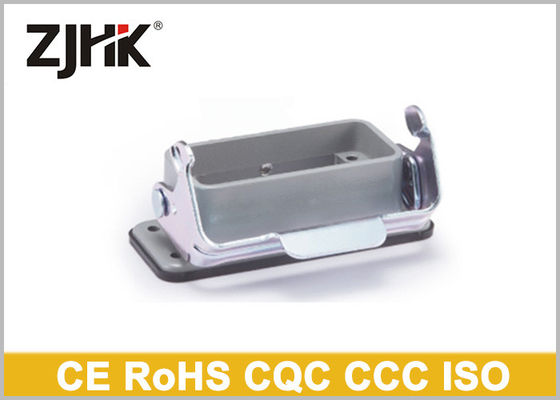

H10A-BK-1L Industrial Hood And Housing / IP65 Assembly Kit 09200100301

H10A-BK-1L Industrial Hood And Housing / IP65 Assembly Kit 09200100301

    • H10A-BK-1L Industrial Hood And Housing / IP65 Assembly Kit 09200100301
    • H10A-BK-1L Industrial Hood And Housing / IP65 Assembly Kit 09200100301
  • H10A-BK-1L Industrial Hood And Housing / IP65 Assembly Kit 09200100301

    Product Details:

    Place of Origin: China
    Brand Name: ZJHK
    Certification: CE, RoHS, SGS, CQC
    Model Number: H10A-BK-1L / H10A-BK-1L-CV

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: Standard Export Cartons
    Delivery Time: 5 Days
    Payment Terms: L/C, T/T, Western Union, Paypal
    Supply Ability: 100,000 pcs per month
    Contact Now
    Detailed Product Description
    Order Number: 09200100301 / 09200100321 Model:: H10A
    Material: Die Cast Aluminium OEM: Provided
    Protection: IP65 Type: Open Bottom
    High Light:

    connector hood

    ,

    d sub hood assembly

    H10A-BK-1L IP65 Assembly Kit for 10 Pin Heavy Duty Connector 09200100301 09200100321



    Description



    1. Compatible with Harting Han 10A Size Hood and Housing

    2. Corrosion Resistant: Yes

    3. Material : Die-Cast Aluminum
    4. Surface : Powder Coated
    5. Operating Temperature Range Max: 125

    6. Operating Temperature Range Min: 40

    7. Inflammability class acc. to UL94: V0
    8. Degree of Protection: IP65

    9. Colour: Grey (RAL 7037)

    10. Locking Elements: Metal elastic pressing by Single Lever

    11. Lever Material: Anti-corrosion Stainless steel 304 grade

    12. Seals: NBR waterproof

    13. Go with HA-010, HD-015 inserts



    Features



    1) Numerous in varieties, sample supply and prompt delivery.
    2) Flexible quoting according to customer’s requirement.
    3) Die casting, Punching, threading all by CNC machines at own workshop.

    4) 100% QC checked before selling.
    5) Give the most competitive price to you.
    6) 7 years experiences specialied in heavy duty connector
    7) RoHS compliance, friendly to Environment.
    ) Quality assurance in accordance with ISO9001:2008



    Application



    Heavy duty connectors are specifically designed for applications in extremely rough environments. Their modular design makes the distribution of power and signals simple.
    Our strongt housings of powder coated aluminum alloy can protect against mechanical stress and prevent aggression of jetting water and dirt. Compared to othre Industrial connector, the biggest advantage of our connector lies in its modularity and simple connectivity, which greatly simplifies the complex wiring applications and save the users a lot of time and money with low maintenance cost.



    Production Family



    hood side entry with 2 bolts M20 thread H10A-SE-2B-M20 19200101540
    hood side entry with 2 bolts PG16 thread H10A-SE-2B-PG16 09200101541
    hood side entry with 2 bolts M25 thread (high construction) H10A-SEH-2B-M25 19200100546
    hood side entry with 2 bolts PG16 thread (high construction) H10A-SEH-2B-PG16 09200100540
    hood side entry with 2 bolts PG21 thread (high construction) H10A-SEH-2B-PG21 09200100541
    hood top entry with 2 bolts M20 thread H10A-TE-2B-M20 19200101440
    hood top entry with 2 bolts PG13.5 thread H10A-TE-2B-PG13.5 09200101440
    hood top entry with 2 bolts M25 thread (high construction) H10A-TEH-2B-M25 19200100446
    hood top entry with 2 bolts PG16 thread (high construction) H10A-TEH-2B-PG16 09200100440
    hood top entry with 2 bolts PG21 thread (high construction) H10A-TEH-2B-PG21 09200100441
    housing bulkhead mounted with 1 lever H10A-BK-1L 09200100301
    housing bulkhead mounted with 1 lever with plastic COVER H10A-BK-1L-CV 09200100321
    housing bulkhead mounted with 1 lever with metal COVER H10A-BK-1L-MCV 09200100331
    housing surface mounted with 1 lever M20 thread H10A-SF-1L-M20 19200100250
    housing surface mounted with 1 lever two sides M20 thread H10A-SF-1L-2M20 19200100290
    housing surface mounted with 1 lever M25 thread H10A-SF-1L-M25 19200100251
    housing surface mounted with 1 lever PG16 thread H10A-SF-1L-PG16 09200100251
    housing surface mounted with 1 lever two sides PG16 thread H10A-SF-1L-2PG16 09200100291
    housing surface mounted with 1 lever PG21 thread H10A-SF-1L-PG21 09200100252
    housing surface mounted with 1 lever M20 thread with plastic cover H10A-SF-1L-CV-M20 19200100294
    housing surface mounted with 1 lever two sides M20 thread with plastic COVER H10A-SF-1L-CV-2M20 19200100295
    housing surface mounted with 1 lever M25 thread with plastic cover 10A-SF-1L-CV-M25 19200100296
    housing surface mounted with 1 lever PG16 thread with plastic cover H10A-SF-1L-CV-PG16 09200100221
    housing surface mounted with 1 lever two sides PG16 thread with plastic cover H10A-SF-1L-CV-2PG16 09200100296
    housing surface mounted with 1 lever PG21 thread with plastic cover H10A-SF-1L-CV-PG21 09200100231
    housing surface mounted with 1 lever M20 thread with metal cover H10A-SF-1L-MCV-M20 19200100694
    housing surface mounted with 1 lever two sides M20 thread with metal cover H10A-SF-1L-MCV-2M20 19200100695
    housing surface mounted with 1 lever M25 thread with metal cover H10A-SF-1L-MCV-M25 19200100696
    housing surface mounted with 1 lever PG16 thread with metal cover H10A-SF-1L-MCV-PG16 09200100651
    housing surface mounted with 1 lever two sides PG16 threadwith metal cover H10A-SF-1L-MCV-2PG16 09200100691
    housing surface mounted with 1 lever PG21 thread with metal cover H10A-SF-1L-MCV-PG21 09200100652
