We Make the Connections More Reliable
|Place of Origin:||China|
|Certification:||CE, RoHS, SGS, CQC|
|Minimum Order Quantity:||1|
|Packaging Details:||Standard Export Cartons|
|Delivery Time:||5 Days|
|Payment Terms:||L/C, T/T, Western Union, Paypal|
|Supply Ability:||100,000 pcs per month|
|Material:||Die Cast Aluminium||Colour:||Grey|
|Type:||Bulkhead Mounting||Lever Type:||1 Lever|
8 pin rectangular connector,
heavy duty power connectors

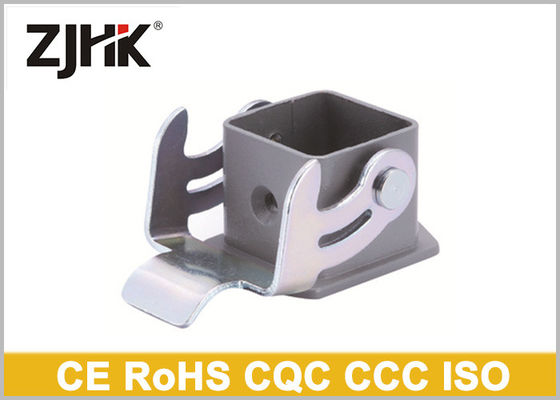

H3A-BK-1L 09200030301 IP65 Industrial Housing for Heavy Duty Cable Connector
Application - Compatible with Harting Han 3A Series Hood and Housing
|ZJHK Model||Harting Model||Description|
|HA-003||Han 3A||3 Pin Insert at 10A, 230/400V|
|HA-004||Han 4A||4 Pin Insert at 10A, 230/400V|
|HD-007||Han 7D||7 Pin Insert at 10A, 250V|
|HD-008||Han 8D||8 Pin Insert at 10A, 250V|
|HQ-002/0||Han Q 2/0||2 Pin Insert at 40A, 400V|
|HQV-002/0||Han QV 2/0||2 Pin Insert at 40A, 830V|
|HQ-005/0||Han Q 5/0||5 Pin Insert at 16A, 230/400V|
|HQ-007/0||Han Q 7/0||7 Pin Insert at 10A, 400V|
|HQ-012/0||Han Q 12/0||12 Pin Insert at 10A, 400V|
Corrosion Resistant: Yes
Material : Die-Cast Aluminum
Surface : Powder Coated
Locking Element : Zinc plated / Stainless Steel Grade 304
Operating Temperature Range Max: 125℃
Operating Temperature Range Min: 40℃
Inflammability class acc. to UL94: V0
Degree of Protection: IP65
Colour: Grey (RAL7037)
Locking Type: Single Lever
Housing: Bulkhead Mounting
Certificate: CE, RoHS, CCC, CQC, ISO9001-2008
Main market: Europe, Australia, Korea, Russia, Middle East, Asia, Africa, South of America.
Promotion: Internet (Google, B2B, etc ); Exhibitions ( Oct Canton Fair, Shanghai Industrial and Automation Fair, HANNOVER MESSE) ;
Staff and Workshop: 50 workshop staff and 10 Engineers focus for heavy duty connector from Mold design, Production, Assembling, Packing and Test.
Q1: Are you a factory?
A1: We are the manufacturer, we establish in 2011, have 7 years experiences in this field. also we got export licence and export to more than 50 countries.
Q2: What is MOQ?
A2: No limit.
Q3: How long is the delivery time?
A3: It depends on the quantity. For samples or regular items in small qty ,we promise to send within 1-3 days. For mass production, such like 20ft container we promise to sent in 15-20 days.
Q4: How about the payment terms?
A4: We accept PayPal, West union and T/T.
Q5: Which shipping method do you provide?
A5: For samples or small orders, goods will be sent by express. For regular orders, goods can be sent by air or by sea, just according to your demand.
Q6: How can we get the samples? Do I need to pay?
A6: We provide free samples, freight cost will be on your side.
Q7: What's the price?
A7: Different items different market will be different cost, we will keep to give best and competitive price for each customer.
Q8. What kind of shipping documents do you provide?
A8: Ususally Bill of Lading, Invoice, Packing List, Certificate of Origin as standard shiping documents. If any speccial documents, please inform us in advance to prepare.
Q9: How do we know you are a reliable supplier?
A9: As a professional manufacturer of heavy duty connectors, we got CE, RoHS, CQC, ISO9001 approved and we do good quality to cooperate with many countries,such as Russia, France, UK, Australia, Brazil, Korea, India and so on and feedback good.
Welcome to visit our factory in Liushi Town, Yueqing and don't hesitate to call us 0086-18067786591 if any query.
