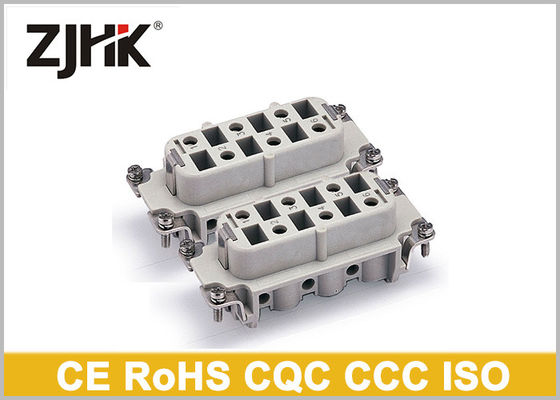

HSB 12 Pin Male / Female Heavy Duty Wire Connector With Screw Insert

HSB 12 Pin Male / Female Heavy Duty Wire Connector With Screw Insert

  • HSB 12 Pin Male / Female Heavy Duty Wire Connector With Screw Insert
  • HSB 12 Pin Male / Female Heavy Duty Wire Connector With Screw Insert
HSB 12 Pin Male / Female Heavy Duty Wire Connector With Screw Insert
Product Details:
Place of Origin: China
Brand Name: ZJHK
Certification: CE, SGS, CQC, RoHS
Model Number: HSB-012-M / HSB-012-F
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotible
Packaging Details: Standard Export Cartons
Delivery Time: 5 Days
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 100,000 pcs per month
Contact Now
Detailed Product Description
Order Number: 09310062601 & 09310062701 Connector Type:: Higher Current 35A Connector HSB Series
Insert Material: Polycarbonate Sabic 3412 ECR Wire Connection: Screw
Housing Model: H32B Series Housing Material: Die Cast Aluminium Alloy
Numberes Of Contacts: 12 + PE Current: 35A
Voltage: 400V / 690V Package: Indivisual Packing In Box
OEM: Provided
High Light:

industrial multi pin connectors


rectangular electrical connectors

HSB 12 Pin Male / Female Heavy Duty Wire Connector With Screw Insert 0
HSB 12 Pin Male Female Screw Insert Heavy Duty Wire Connector
HSB series Heavy Duty Connector are not only used in facility engineering and machine building, but also popular in wind generation, construction machines, vehicles assembly line, etc. With the max current to 35 Amp, the wire termination is designed as screw type, with 6 poles and 12 poles. The housing H32B provide robust protection against dust, water, and outside impact. Therefore it is an ideal solution for various industrial and automation application which requrie high current connection.

Contact Material:Copper alloy (brass H62)

Contact Plating:Silver

Contact Resistance:< 3 m ohms


Insert Material:Glass fibre reinforced PC material from Sabic

Insulation Resistance:>1010ohms

WorkingTime: >500 mating cycles

Limit Temperature:-40°C to +125°C

Protection Degree: IP65

Rated Current: 35A

Rated Impulse Voltage: 6KV

Rated Voltage ( conductor to ground) :400V

Rated Voltage ( conductor to conductor): 690V

Size: HSB High Current Connector

Termination Type: Screw

Gender: Male / Female

Wire Gauge:6mm² (AWG 10)

Tightening Torque: 1.2Nm

Housing- H32B Series
Protection Degree IP65
Material Diecast Aluminium

Side Entry or Top Entry

Housing Bulkhead, Surface mount, Cable to Cable
Locking Levers Single or double
Material SS304 anti-corrosion or zinc plated steel
High Construction for larger cable Available
Thread PG or metric
Salt Spray withstand 72 hours

Company Information​

Certificate: CE, ROHS, CQC, CCC, ISO9001:2008

Production Line: HA, HE, HEE, HD, HDD, HM, HSB, HK, HQ Insert and Housing H6B, H10B, H16B, H24B, H32B, H48B, H3A, H10A, H16A, H32A.

Quality Control: 100% checked before selling.

Customized order: Specific sizes, logo & colors can be made to order. Since we have own molding centre and advanced machines, we are develop new designs every year. Please send us your details and we shall prepare individual quote upon receipt of your information.

Fast Response: Your inquiry will be answered within 24 hours



Q1: Are you a factory of trading company?

A1: ZJHK is profesional factory in Wenzhou China from 2011. We focus on heavy duty connector only and always offer the most competitive price and good after-sales service to customers all round the world.
Q2: How does your factory manage quality control? And how long is the quality guarantee?
A2: 12 month warranty. And all our products are 100% inspected and tested before selling.
Q3: When can I get the price?
A3: During 8:00 am to 17:00 pm, your inquiry will be response within 2 hours, not less than 12 hours.
Q4: How long is the deliver time?
A4. It usually takes about 1 working days for sample order and 3- 15 days for big order.
Q5: What is the price of shipping?
A5: For small order, we would like to deliver by DHL/TNT/FEDEX. It is expensive but door to door service. For big order, we advise to ship by sea and sea freight will be depends on destination port and generally speaking, sea freight is very cheap compare to goods value.
Q6: Could you accept OEM?
A6: Yes, Our company are always welcome OEM per customre design.

If you have more questions, please contact us at any time. We are ready to answer in details.
