| Place of Origin: | China |
| Brand Name: | ZJHK |
| Certification: | CE, RoHS, SGS, CQC |
| Model Number: | HE-010-M / HE-010-F |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negoitable |
| Packaging Details: | Standard Export Cartons |
| Delivery Time: | 5 Days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100,000 pcs per month |
| Order Number: | 09330102611 & 09330102711 | Model Type:: | Standand Connector HE Series |
|---|---|---|---|
| Material: | Polycarbonate Sabic 3412 ECR | Wire Connection: | Screw |
| Housing: | H10B Series | OEM: | Provided |
| Nos Of Contact: | 10 | ||
| High Light: | 8 pin rectangular connector,heavy duty power connectors |
||

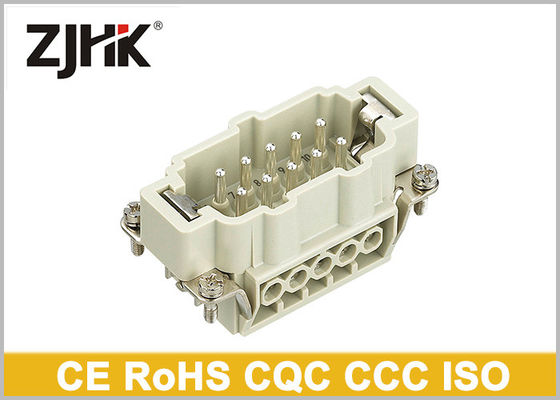

Replace Phoenix Rectangular 10 Pin Heavy Duty Power Connectors HE-010 09330102601 09330102701
Heavy-duty connectors are widely used where a safe and convenient connection of machinery and facilities is needed. With 7 year manufacturing experiences of heavy-duty connectors, ZJHK adopts the most advanced technologies and machines from famous international brands, with efforts of all our staff, to offer our customers an excellent performance of quality and full range of connectors.
Description
1. Our connectors are extensively used in industrial applications that requires a fast electrical and signal connections, including Construction machinery, textile machinery, packaging and printing machinery, tobacco machinery, robotics, rail transit, hot runners, electricity, automation, etc.
2. Our connectors are perfectly matched top brands such as ILME connectors, Harting connectors, Connectors, phoenix connectors, Sibas connectors, etc with excellent quality.
3. We are always developing new molds of heavy duty connectors to meet new Challenges.
Specification - Insert and Contacts
| Numbers of contacts | 10+PE |
| Electrical performance according to | EN61984 |
| Rated current | 16A |
| Rated voltage | 500V |
| Rated impulse voltage | 6KV |
| Pollution degree | 3 |
| or | 16A 400/690V 6KV 2 |
| Rated voltage according to UL | 600V |
| Insulation resistance | ≥1010Ω |
| Material | Polycarbonate |
| Flammability according to (UL94) | V0 |
| Working temperature | -40℃±125℃ |
| Mechanical working life - mating cycles | ≥500 |
| Contacts: | |
| Material | Copper alloy |
| Surface | Silver Plated, Gold Plated |
| Contact resistance | ≤1mΩ |
| Screw terminal | |
| Wire gauge | 1.0-2.5mm2 |
| AWG | 18-14 |
| Tightening | 0.5Nm |
| Crimp terminal | |
| Wire gauge | 0.14-4.0mm2 |
| AWG | 26-12 |
| Cage- clamp terminal | |
| Wire gauge | 0.14-2.5mm2 |
| AWG | 26-14 |
Specification - Hood and Housing H10B
Hood - Side Entry / Top Entry - High Construction for larger wire is available
Housing - Bulkhead / Surface Mounting / Cable to Cable
Locking levers : Single or Double
Protective covers: plastic or metal cover optional
Thread: PG16, PG21, PG29 / M20, M25, M32
Features
A.The insert adopts high-grade raw material, reinforced with glass fiber, increase the covers strength by 15%.Ground copper parts are made of high quality brass, conductivity is excellent.The shrapnel’s resilience (used for securing a pin) is excellent, it can be corrected quickly in case of wrong wiring to ensure the normal use.
B.Contacts-silver plated or gold plated, uniform of thickness, colour and lustre is light.
The steel levers are treated by surface grinding and have strong antioxidant capacity, uniform surface and excellent hand washing.The rivet hole on the base are 4 holes drilled,location precision,high consistency.
Housing is made up of standard aluminum alloy, spray evenly, keep the original color inside the covers. Internal mounting hole are drilling together by CNC machines.The position is accurate.
C.The housing screw thread ,we abandon the traditional hand-made screw tap,choose high quality aluminum,it is operated by automated machine,its appearance is exquisite,bright accurate.
The screw thread in the market rough.
D. Rivet drilling adopts mechanical automation,location precision,high consistency.The rivet is made up of pure stainless steel.It has a bright and uniform appearance by polishing.
